9476-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

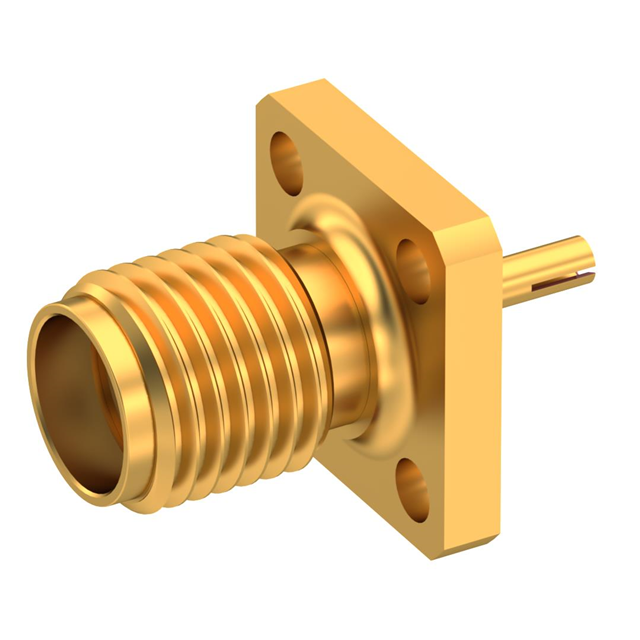

SMA / STRAIGHT JACK FEMALE GOLD
| Part | Body Material | Body Finish | Mating Cycles | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Number of Ports | Impedance | Fastening Type | Contact Termination | Center Contact Material | Housing Color | Connector Style | Frequency - Max [Max] | Mounting Type | Mounting Feature | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Gold | 500 | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Solder | 1 | 50 Ohms | Threaded | Solder Cup | Beryllium Copper | Gold | SMA | 18 GHz | Panel Mount | Flange | Female Socket Jack |
