Schaffner ED100 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

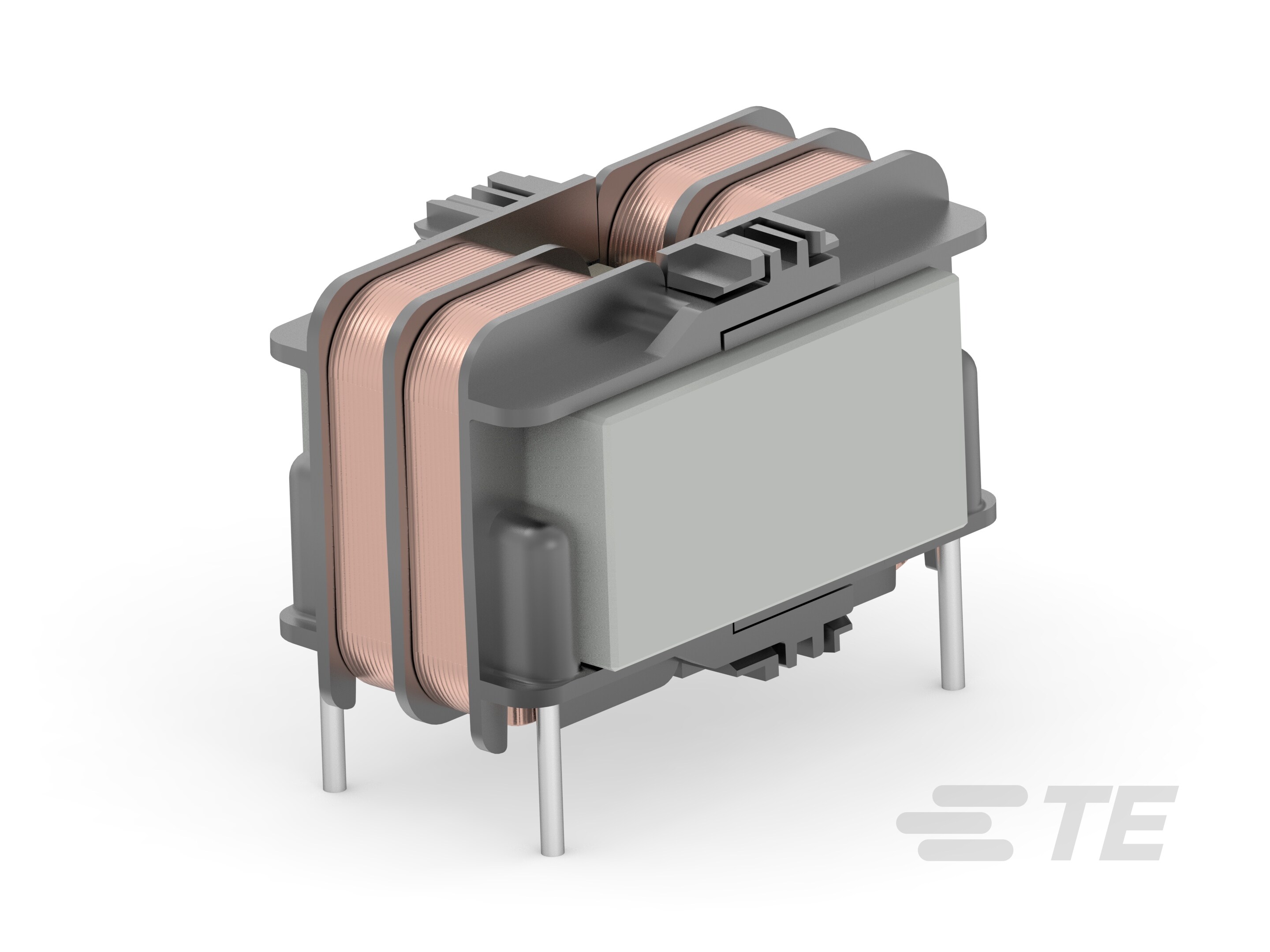

COMMON MODE CHOKES / FILTERS ED101 COMMON MODE CHOKE 300VAC, 0.2A, 40MH

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Max) [Max]	Inductance @ Frequency	Filter Type	DC Resistance (DCR) (Max)	Package / Case	Number of Lines	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max) [Max]
TE Connectivity AMP Connectors ED101-0.2-40M	14.3 mm	0.563 "	24 mm	0.945 "	200 mA	40 mH	Power Line	10 Ohm	Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm
TE Connectivity AMP Connectors ED101-1.25-7M0	14.3 mm	0.563 "	24 mm	0.945 "	1.25 A	7 mH	Power Line		Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm	400 mOhm
TE Connectivity AMP Connectors ED101-0.75-12M	14.3 mm	0.563 "	24 mm	0.945 "	750 mA	12 mH	Power Line	1.2 Ohm	Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm
TE Connectivity AMP Connectors ED101-2-3M0	14.3 mm	0.563 "	24 mm	0.945 "	2 A	3 mH 10 kHz	Power Line	200 mOhm	Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm
TE Connectivity AMP Connectors ED101-1.25-7M0	14.3 mm	0.563 "	24 mm	0.945 "	1.25 A	7 mH	Power Line		Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm	400 mOhm
TE Connectivity AMP Connectors ED100-0.2-40M	14.3 mm	0.563 "	24 mm	0.945 "	200 mA	40 mH	Power Line	10 Ohm	Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm
TE Connectivity AMP Connectors ED101-1.5-5M0	14.3 mm	0.563 "	24 mm	0.945 "	1.5 A	5 mH	Power Line	300 mOhm	Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm
TE Connectivity AMP Connectors ED100-1-9M0	14.3 mm	0.563 "	24 mm	0.945 "	1 A	9 mH	Power Line		Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm
TE Connectivity AMP Connectors ED100-0.5-15M	14.3 mm	0.563 "	24 mm	0.945 "	500 mA	10 kHz 15 mH	Power Line	2 Ohm	Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm

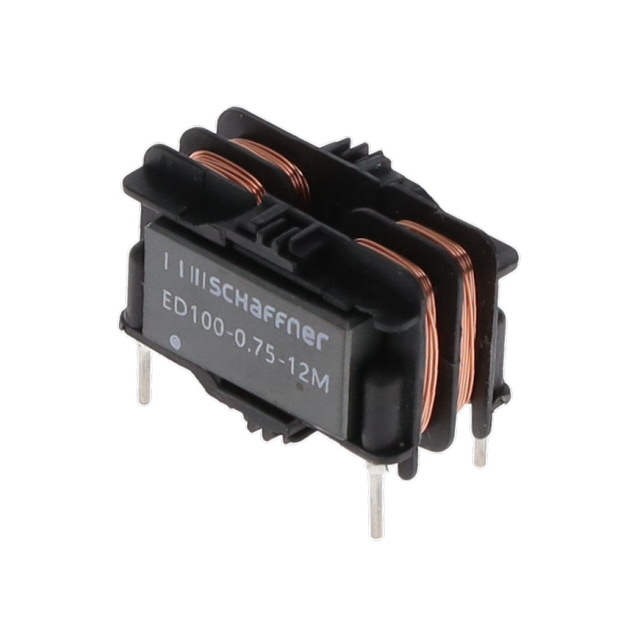

TE Connectivity AMP Connectors ED100-0.75-12M	14.3 mm	0.563 "	24 mm	0.945 "	750 mA	12 mH	Power Line	1.2 Ohm	Vertical 4 PC Pin	2	300 V	125 °C	-40 C	Through Hole	0.61 in	15.5 mm
