PPPC121 Series

Catalog

CONN HDR 12POS 0.1 GOLD SMD

Part	Contact Material	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Finish - Mating	Contact Type	Voltage Rating	Insulation Height	Insulation Height	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Fastening Type	Pitch - Mating	Pitch - Mating	Termination	Number of Positions	Insulation Color	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Contact Length - Post	Contact Length - Post

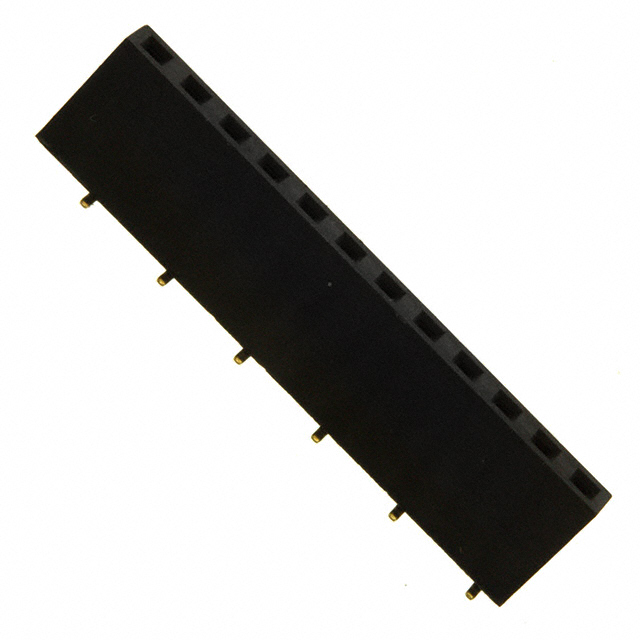

Sullins Connector Solutions PPPC121KFXC	Phosphor Bronze	Flash	Polyester	Square	Gold	Female Socket	250 V	0.28 in	7.1 mm	All	Header Top or Bottom Entry	Flash	Gold	-40 C	105 ░C	Surface Mount	Push-Pull	0.1 "	2.54 mm	Solder	12	Black	1	3 A	UL94 V-0

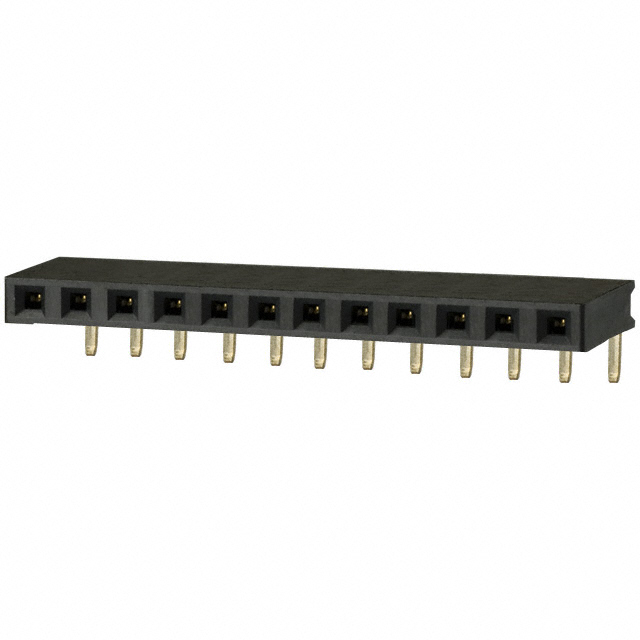

Sullins Connector Solutions PPPC121LGBN-RC	Phosphor Bronze	Flash	Polyester	Square	Gold	Female Socket	250 V	0.1 in	2.54 mm	All	Header	Flash	Gold	-40 C	105 ░C	Right Angle Through Hole	Push-Pull	0.1 "	2.54 mm	Solder	12	Black	1	3 A	UL94 V-0	0.124 in	3.15 mm
