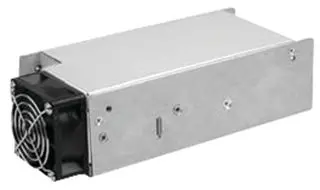

MHP650 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 655 W, 24 V, 27 A
| Part | Minimum Load Required | Voltage - Output 1 | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Type | Power (Watts) | Approval Agency | Efficiency | Voltage - Isolation | Features | Applications | Number of Outputs | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 24 V | Chassis Mount | 70 °C | -20 °C | 4 " | 63.5 mm | 101.6 mm | 233.2 mm | 9.18 " | 2.5 in | Enclosed | 648 W | CB | 84 % | 4000 V | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | Medical | 1 | 27 A | |||
 XP Power | 48 V | Chassis Mount | 70 °C | -20 °C | 4 " | 63.5 mm | 101.6 mm | 233.2 mm | 9.18 " | 2.5 in | Enclosed | 650 W | 85 % | 4000 V | Medical | 1 | 13.5 A | 80 VAC | 264 VAC |
