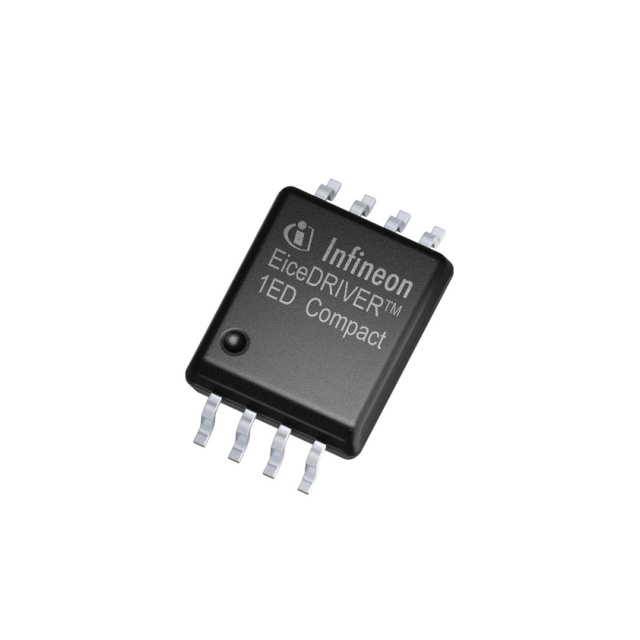

1ED3121 Series
Manufacturer: INFINEON
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
THE 1ED3121MU12H IS A 5.5 A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER WITH SEPARATE OUTPUT, UL 1577 CERTIFIED, 10.5 V UVLO
| Part | Package Name | Mounting Type | Current - Peak Output | Operating Temperature (Max) | Operating Temperature (Min) | Current - Output High | Current - Output Low | Number of Channels | Approval Agency | Voltage - Isolation | Common Mode Transient Immunity (Min) | Technology | Voltage - Output Supply (Max) | Voltage - Output Supply (Min) | Fall Time (Typ) | Rise Time (Typ) | Package Length | Package Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 8-SOIC PG-DSO-8-66 | Surface Mount | 5.5 A | 125 °C | -40 °C | 5.5 A | 5.5 A | 1 | UL | 1.2 kV | 200 kV/µs | Magnetic Coupling | 35 V | 10 V | 15 ns | 15 ns | 0.295 in | 7.5 mm |
