20LE24 Series

Manufacturer: ULTRAVOLT / Advanced Energy

Catalog

DC/DC CONVERTER 20000V 4W

Part	Mounting Type	Approval Agency	Current - Output (Max) [Max]	Applications	Number of Outputs	Standard Number	Voltage - Output 1 [custom]	Voltage - Input (Max) [Max]	Type	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]

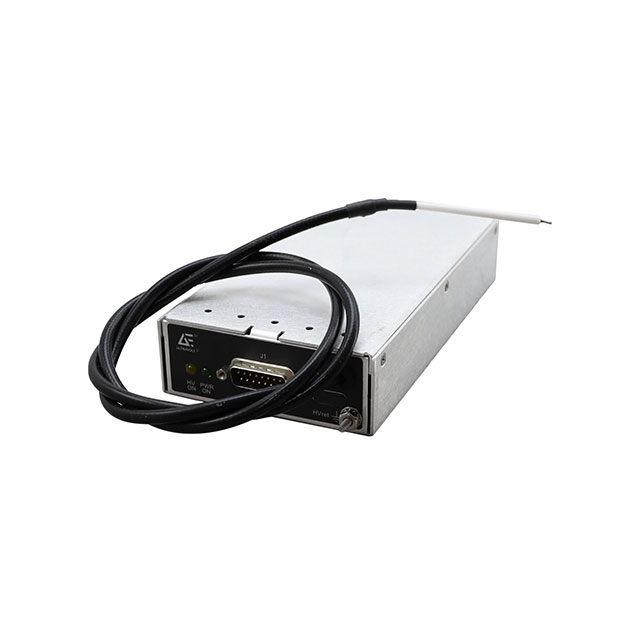

ULTRAVOLT / Advanced Energy 20LE24-N4	Chassis Mount	CE cURus	200 µA	ITE (Commercial)	1	62368-1	20000 V	30 V	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	4 W	45 °C	10 °C

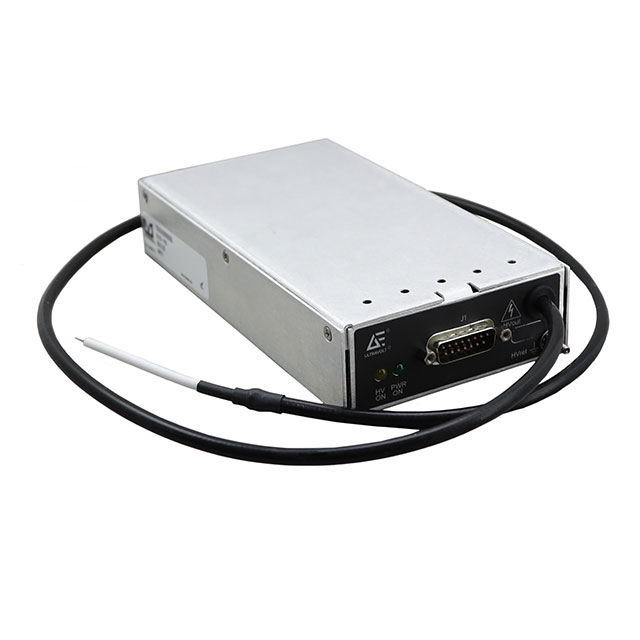

ULTRAVOLT / Advanced Energy 20LE24-N30	Chassis Mount	CE cURus	1.5 mA	ITE (Commercial)	1	62368-1	20000 V	30 V	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	30 Watts	45 °C	10 °C

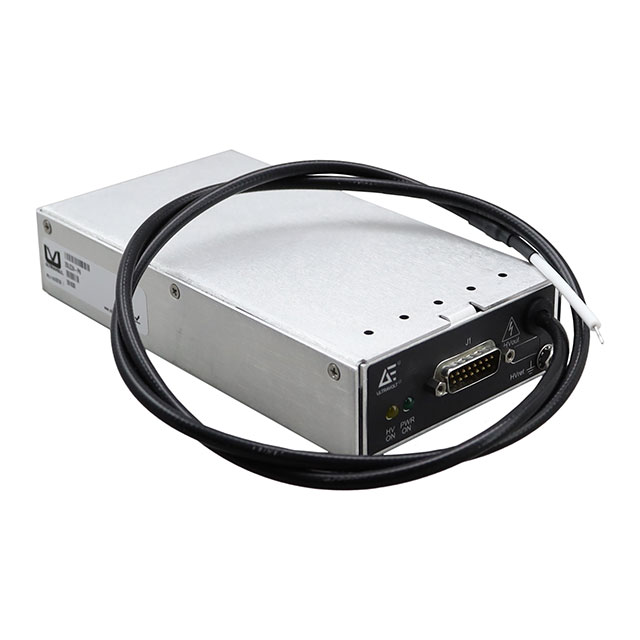

ULTRAVOLT / Advanced Energy 20LE24-P4	Chassis Mount	CE cURus	200 µA	ITE (Commercial)	1	62368-1	20000 V	30 V	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	4 W	45 °C	10 °C

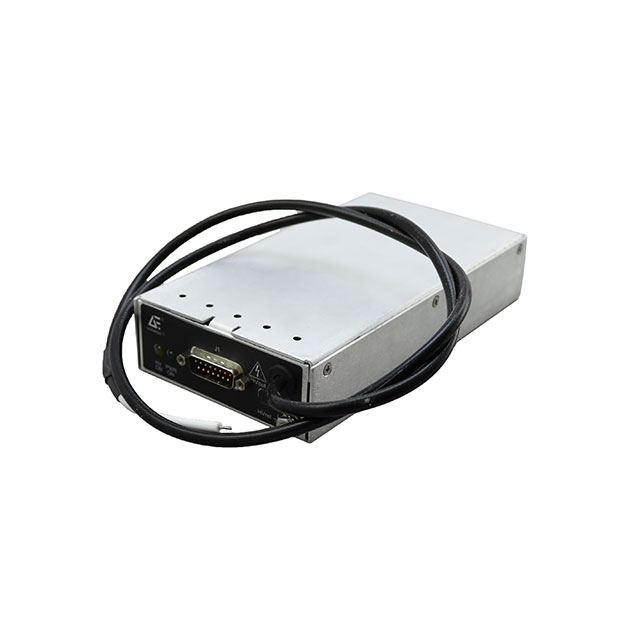

ULTRAVOLT / Advanced Energy 20LE24-N15	Chassis Mount	CE cURus	0.75 mA	ITE (Commercial)	1	62368-1	20000 V	30 V	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	15 W	45 °C	10 °C

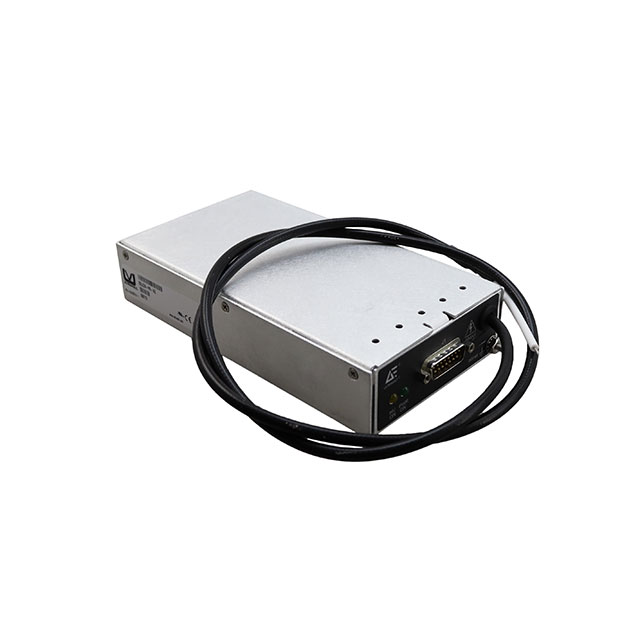

ULTRAVOLT / Advanced Energy 20LE24-P4-AZ	Chassis Mount	CE cURus	200 µA	ITE (Commercial)	1	62368-1	20000 V	30 V	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	4 W	45 °C	10 °C

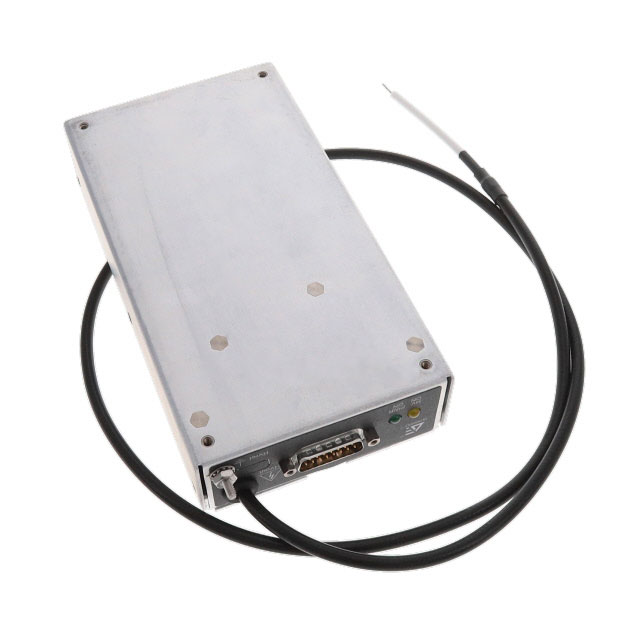

ULTRAVOLT / Advanced Energy 20LE24-P30	Chassis Mount	CE cURus	1.5 mA	ITE (Commercial)	1	62368-1	20000 V	30 V	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	30 Watts	45 °C	10 °C

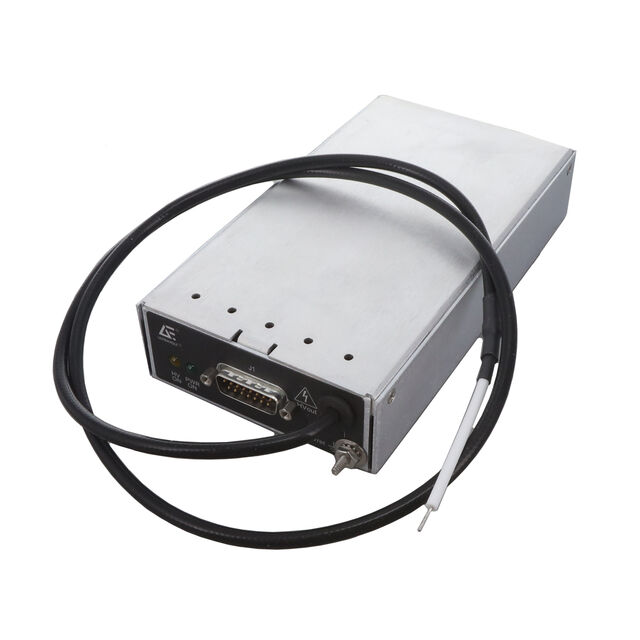

ULTRAVOLT / Advanced Energy 20LE24-P15	Chassis Mount	CE cURus	0.75 mA	ITE (Commercial)	1	62368-1	20000 V	30 V	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	15 W	45 °C	10 °C
