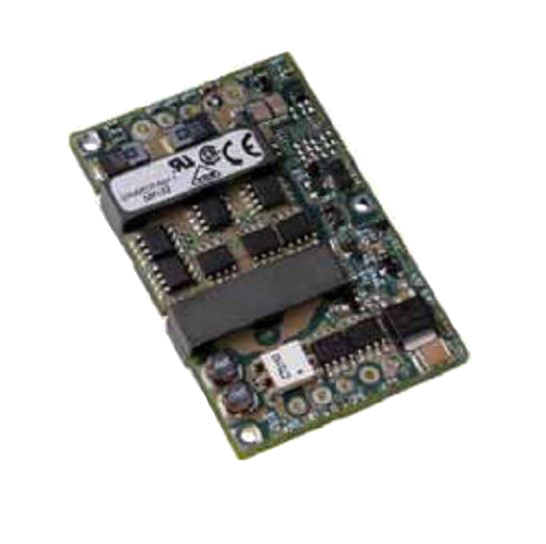

QSVW035 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 12V 420W
| Part | Voltage - Isolation | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Current - Output (Max) [Max] | Number of Outputs | Voltage - Input (Min) [Min] | Voltage - Output 1 | Type | Power (Watts) | Efficiency | Control Features | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 2250 VDC | 75 V | 12.7 mm | 36.8 mm | 0.5 in | 58.4 mm | 2.3 in | 1.45 in | ITE (Commercial) | 85 °C | -40 C | Through Hole | OCP OTP OVP Remote On/Off UVLO | 35 A | 1 | 36 V | 12 V | Isolated Module | 420 W | 95.5 % | Active Low Enable | 8-DIP Module 1/4 Brick |
OmniOn Power™ | 2250 VDC | 75 V | 12.7 mm | 36.8 mm | 0.5 in | 58.4 mm | 2.3 in | 1.45 in | ITE (Commercial) | 85 °C | -40 C | Through Hole | OCP OTP OVP Remote On/Off UVLO | 35 A | 1 | 36 V | 12 V | Isolated Module | 420 W | 95.5 % | Active Low Enable | 8-DIP Module 1/4 Brick |
