CC-WMX Series

Catalog

RF TXRX MOD BLUETOOTH WIFI SMD

Part	Power - Output	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Max]	Frequency [Min]	Protocol	RF Family/Standard	Memory Size	Serial Interfaces	Data Rate	Current - Receiving	Antenna Type	Memory Size	Frequency	Modulation	Current - Transmitting	Sensitivity	Voltage - Supply [Min]	Voltage - Supply [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Module/Board Type	Core Processor	Connector Type	Supplied Contents	Contents	Voltage - Supply	Memory Size [custom]	Memory Size [custom]	Utilized IC / Part
Digi International CC-WMX-L96C-TE10	17 dBm	Surface Mount	100-SMD Module	85 °C	-40 C	2.484 GHz 5.85 GHz	2.412 GHz 4.9 GHz	802.11a/b/g/n Bluetooth v4.0	Bluetooth WiFi	4GB Flash 512MB DRAM	PWM UART USB	150 Mbps
Digi International CC-WMX-PE47-RM	17 dBm	Card Edge	Module	85 °C	-40 C			802.11a 802.11b 802.11g 802.11n	WiFi		I2C I2S JTAG PWM SPI UART USB	150 Mbps	100 mA	Antenna Not Included U.FL	128 MB 128 MB	2.4 GHz 5 GHz	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	406 mA
Digi International CC-WMX-PF58-VM	17 dBm	Card Edge	Module	85 °C	-40 C			802.11a/b/g/n Bluetooth v4.0	Bluetooth WiFi		I2C I2S JTAG PWM SPI UART USB	150 Mbps	100 mA	Antenna Not Included U.FL	256 MB 256 MB	2.4 GHz 5 GHz	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	406 mA

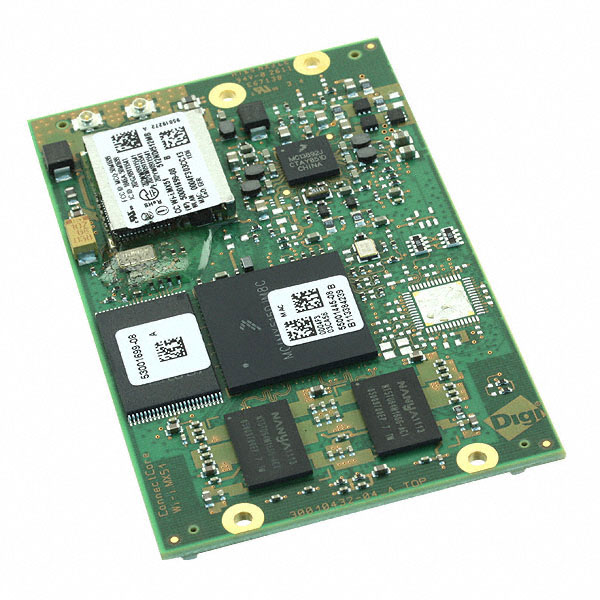

Digi International CC-WMX-LB69-VM-B	19 dBm		Module	70 °C	-20 ░C			802.11a 802.11b 802.11g 802.11n	WiFi		I2C SPI UART USB	65 Mbps		Antenna Not Included U.FL	512 MB 512 MB	2.4 GHz 5 GHz			-94 dBm	3.4 V	4.8 V
Digi International CC-WMX-LD79-QTC1																						50 mm	3.23 in	1.97 "	82 mm	MPU Core	ARM® Cortex®-A8 i.MX53	Board-to-Board (BTB) Socket - 360

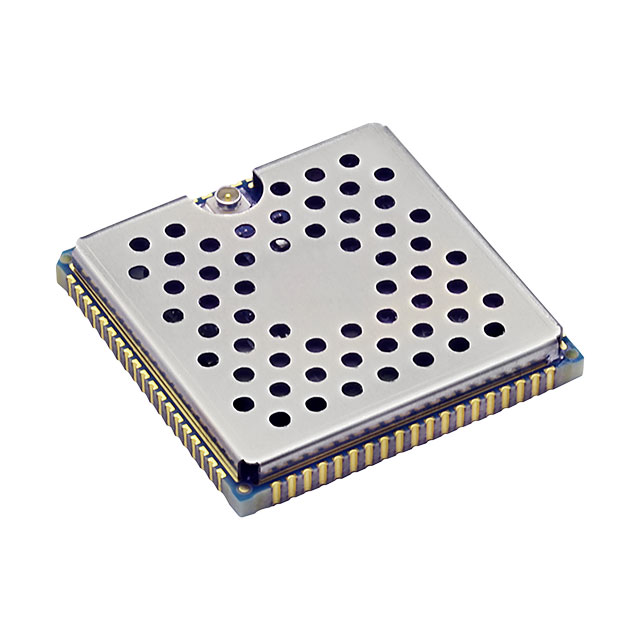

Digi International CC-WMX-JN58-NE		Surface Mount	Module	85 °C	-40 C			802.11a/b/g/n/ac Bluetooth v4.0	Bluetooth WiFi		I2C SPI UART USB				256 MB 256 MB	528 MHz
Digi International CC-WMX6N-KIT																													Board(s)	Board(s)

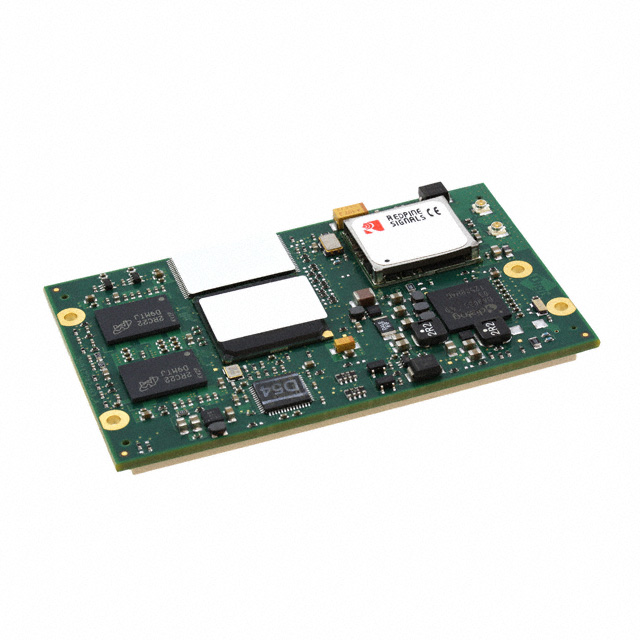

Digi International CC-WMX-LD79-VK-B	17 dBm	Chassis Mount	Module	85 °C	-40 C			802.11a 802.11b 802.11g 802.11n	WiFi		Ethernet I2C I2S JTAG SDIO SPI UART USB	65 Mbps	700 mA	Antenna Not Included U.FL	1 GB 512 MB	2.4 GHz 5 GHz	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	700 mA	-94 dBm												3.75 V
Digi International CC-WMX-PE47-VM-B	17 dBm	Card Edge	Module	85 °C	-40 C	2.484 GHz 5.85 GHz	2.412 GHz 4.9 GHz	802.11a 802.11b 802.11g 802.11n	WiFi		I2C I2S JTAG PWM SDIO SPI UART USB	150 Mbps	100 mA	Antenna Not Included U.FL			16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	406 mA														128 MB	128 MB
Digi International CC-WMX-KK8D-TN		Surface Mount	Module	85 °C	-40 C			802.11a/b/g/n/ac Bluetooth v5.0	Bluetooth WiFi		Ethernet GPIO I2C I2S PWM SPI UART USB				2 GB 8 GB	800 MHz																		MKL14Z32VFT4
