302-R34 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

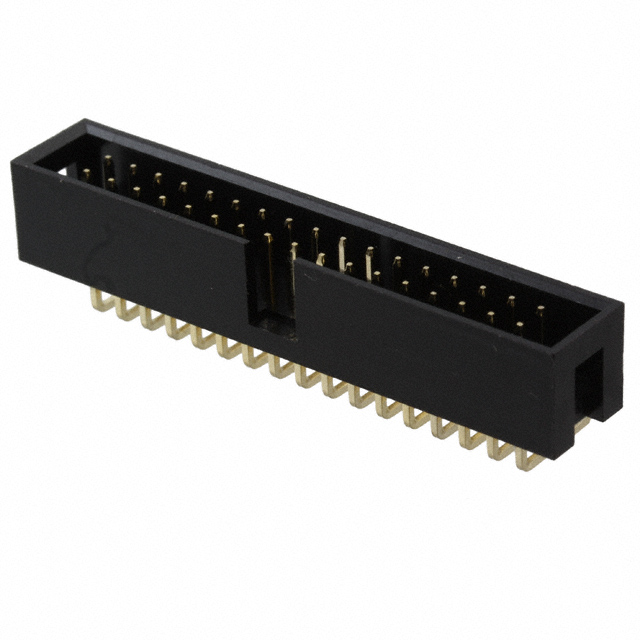

CONN HEADER R/A 34POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Insulation Height | Insulation Height | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Current Rating (Amps) | Connector Type | Number of Positions Loaded | Contact Material | Number of Rows [custom] | Mounting Type | Number of Positions [custom] | Voltage Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Contact Finish Thickness - Mating | Contact Finish - Post | Fastening Type | Contact Shape | Style | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Contact Finish - Mating | Insulation Material | Shrouding | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Keying Slot | 0.358 " | 9.1 mm | UL94 V-0 | -40 C | 105 ░C | Male Pin | 3 A | Header | All | Brass | 2 | Right Angle Through Hole | 34 | 250 V | 0.1 in | 2.54 mm | Solder | Flash | Gold | Push-Pull | Square | Board to Cable/Wire | 0.122 in | 3.1 mm | Black | Gold | Polyester Glass Filled | Shrouded - 4 Wall | 0.1 " | 2.54 mm |
