052207 Series

Manufacturer: Molex

Catalog

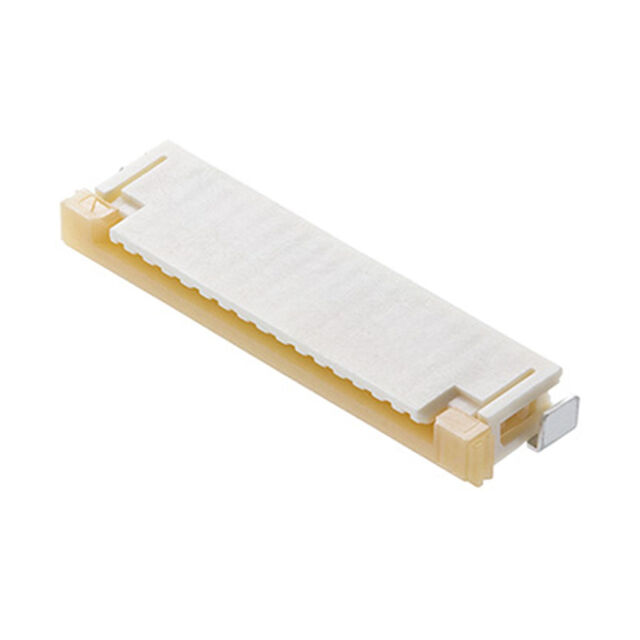

CONN FFC FPC TOP 19POS 1MM R/A

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Number of Positions	Housing Color	Connector/Contact Type	Voltage Rating	Material Flammability Rating	Locking Feature	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Contact Finish	Contact Material	Mounting Type	Flat Flex Type	Termination	Cable End Type	Actuator Material	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Actuator Color	Number of Positions

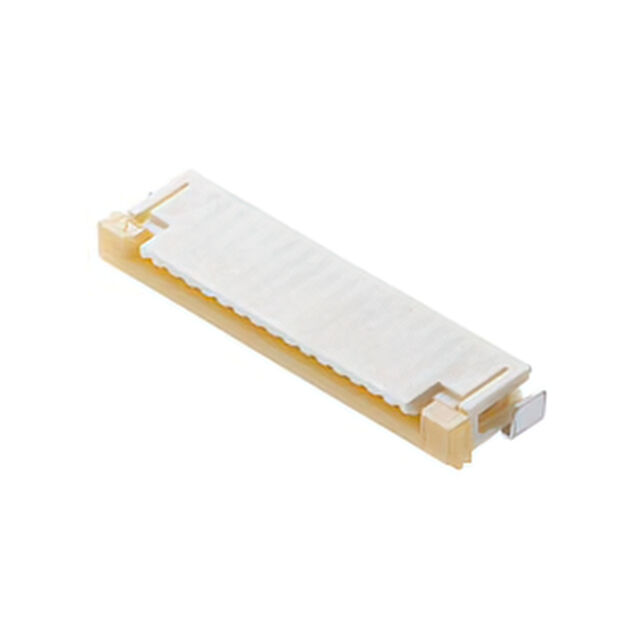

Molex 0522071985	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	Polyamide (PA46) Nylon 4/6	19	Natural	Contacts Top	125 VDC	UL94 V-0	Slide Lock	30	39.4 Áin	1 Ám	0.106 in	2.7 mm	Tin Bismuth	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm
Molex 0522071633	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	Polyamide (PA) Nylon Glass Filled		White	Contacts Top	125 VDC	UL94 V-0	Slide Lock	30	39.4 Áin	1 Ám	0.106 in	2.7 mm	Tin Bismuth	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm	Brown	16
Molex 0522070890	Solder Retention Zero Insertion Force (ZIF)	85 °C	-20 C	Polyamide (PA46) Nylon 4/6	8		Contacts Top	125 VDC	UL94 V-0	Slide Lock	10			0.106 in	2.7 mm	Tin-Lead	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm
Molex 0522070790	Solder Retention Zero Insertion Force (ZIF)	85 °C	-20 C	Polyamide (PA46) Nylon 4/6	7		Contacts Top	125 VDC	UL94 V-0	Slide Lock	10			0.106 in	2.7 mm	Tin-Lead	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm
Molex 0522072533	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	Polyamide (PA) Nylon Glass Filled		White	Contacts Top	125 VDC	UL94 V-0	Slide Lock	30	39.4 Áin	1 Ám	0.106 in	2.7 mm	Tin Bismuth	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm	Brown

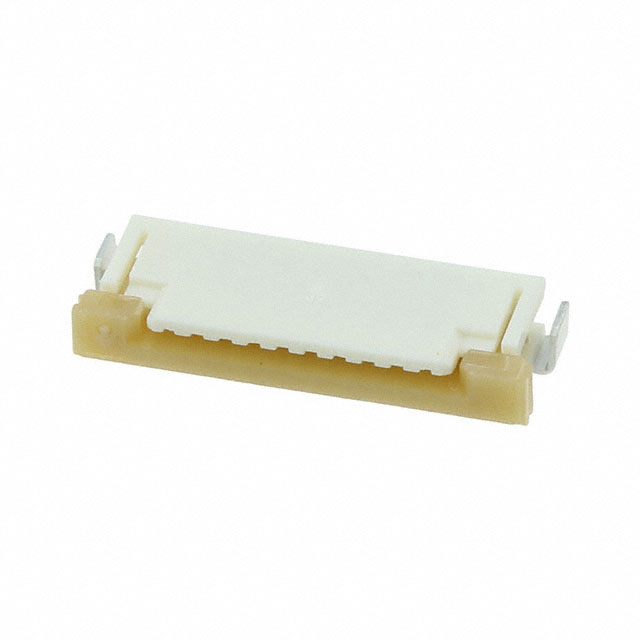

Molex 0522071033	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	Polyamide (PA) Nylon Glass Filled	10	White	Contacts Top	125 VDC	UL94 V-0	Slide Lock	30	39.4 Áin	1 Ám	0.106 in	2.7 mm	Tin Bismuth	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm	Brown
Molex 0522072160	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	Polyamide (PA46) Nylon 4/6	21	Natural	Contacts Top	125 VDC	UL94 V-0	Slide Lock	30			0.106 in	2.7 mm	Gold	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm

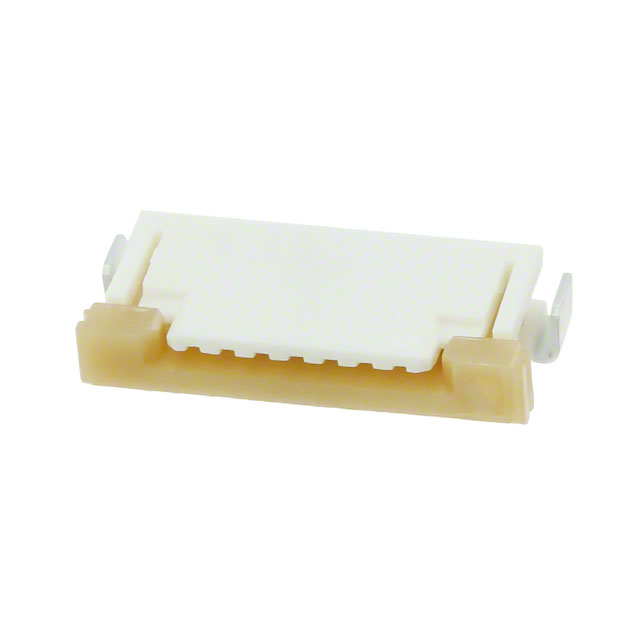

Molex 0522070760	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	Polyamide (PA46) Nylon 4/6	7	Natural	Contacts Top	125 VDC	UL94 V-0	Slide Lock	30			0.106 in	2.7 mm	Gold	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm
Molex 0522072490	Solder Retention Zero Insertion Force (ZIF)	85 °C	-20 C	Polyamide (PA46) Nylon 4/6	24		Contacts Top	125 VDC	UL94 V-0	Slide Lock	10			0.106 in	2.7 mm	Tin-Lead	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm
Molex 0522071490	Solder Retention Zero Insertion Force (ZIF)	85 °C	-20 C	Polyamide (PA46) Nylon 4/6	14		Contacts Top	125 VDC	UL94 V-0	Slide Lock	10			0.106 in	2.7 mm	Tin-Lead	Phosphor Bronze	Surface Mount Right Angle	FFC FPC	Solder	Tapered	Polyphenylene Sulfide (PPS)	0.3 mm	0.039 in	1 mm
