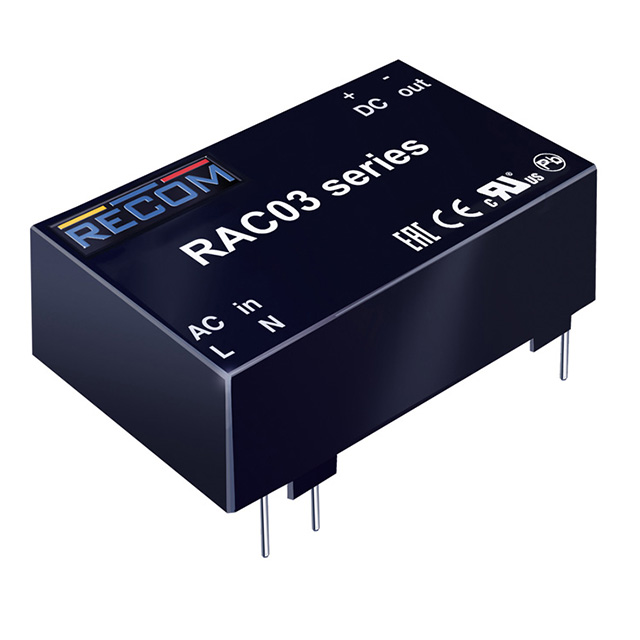

RAC03-12 Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC CONVERTER 12V 3W
| Part | Load Regulation | Line Regulation | Weight | Weight | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Approval Agency | Type | Applications | Current - Output (Max) [Max] | Package / Case | Number of Outputs | Efficiency | Standard Number | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Power (Watts) | Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 6 % | 3 % | 0.066 lb | 29.94 g | 264 VAC | 90 VAC | Through Hole | CE EN UL | Enclosed | ITE (Commercial) | 250 mA | 16-DIP Module 5 Leads | 1 | 76 % | 60335-1 60950-1 | 37.8 mm | 16.2 mm | 0.94 in | 1.49 in | 0.64 in | 23.9 mm | 12 V | 3 W | Universal Input | 85 °C | -25 °C |
