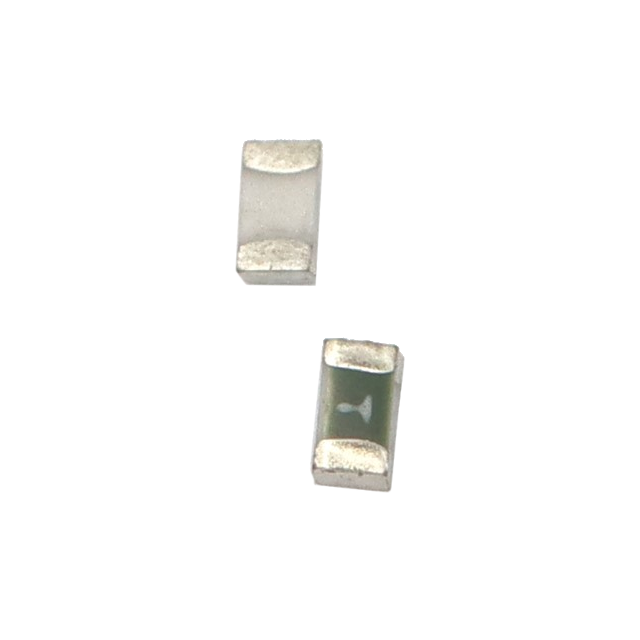

0ABB Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
SURFACE MOUNT FUSES 0603 SMD FUSE. SLOW BLOW 3A
| Part | DC Cold Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Approval Agency | Fuse Type | Response Time | Melting I²t | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 35 Ohms | -55 C | 150 °C | 50 A | 32 V | 3 A | 0.063 " | 0.019 " | 0.81 mm | 0.48 mm | 1.6 mm | 0.032 in | Surface Mount | AEC-Q200 cURus | Board Mount (Cartridge Style Excluded) | Slow Blow | 0.28 | 1608 Metric | 0603 |
Bel Fuse Inc. | 9.5 Ohms | -55 C | 150 °C | 50 A | 32 V | 7 A | 0.063 " | 0.019 " | 0.81 mm | 0.48 mm | 1.6 mm | 0.032 in | Surface Mount | AEC-Q200 cURus | Board Mount (Cartridge Style Excluded) | Slow Blow | 3 | 1608 Metric | 0603 |
