Harting RJ Industrial Series

Manufacturer: HARTING

Catalog

MODULAR CONNECTORS / ETHERNET CONNECTORS RJI IP67 HAN3A DATA PLUG PLASTIC ANGLED

Part	Current Rating (Amps)	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Color	Ratings	Cable Type	Ingress Protection	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Connector Type	Mounting Type	Features	Convert From (Adapter End)	Shell Material, Finish	Convert To (Adapter End)	Type	Housing Color	Style	Lock Location	Housing Material	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Length	Length [x]	Number of Positions/Contacts

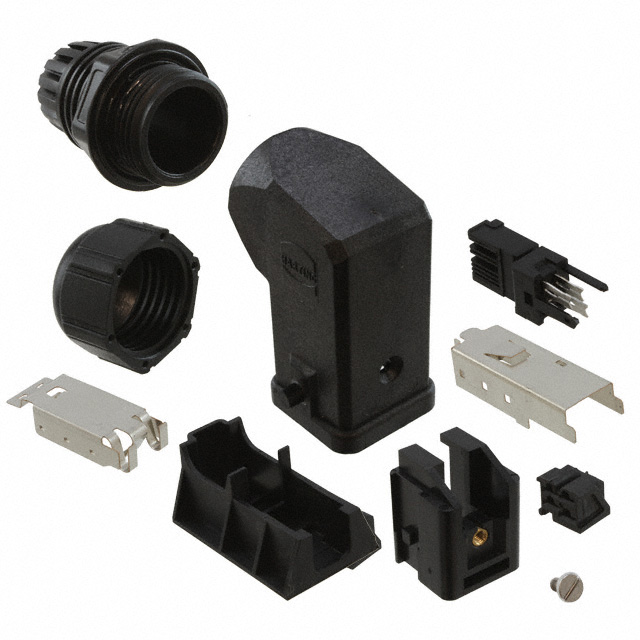

HARTING 09451251104	1.5 A	24 AWG	22 AWG	125 VDC	Black	Cat5	Round Cable Solid or Stranded Wires	IP65 IP67	Shielded	4	8	IDC	Plug
HARTING 09452151103						Cat5		IP67 - Dust Tight Waterproof	Shielded					Flange (2 Hole) Panel Mount	Cover	Jack 8p8c (RJ45)	Zinc Die Cast	Jack 8p8c (RJ45)	Coupler
HARTING 09455250021								IP67 - Dust Tight Waterproof					Base - Panel Mount							Black	Bottom Entry	Locking Clip (1) on Base Bottom	Plastic	3 A	29 mm	0.776 in	1.587 in	1.142 in	19.7 mm	40.3 mm

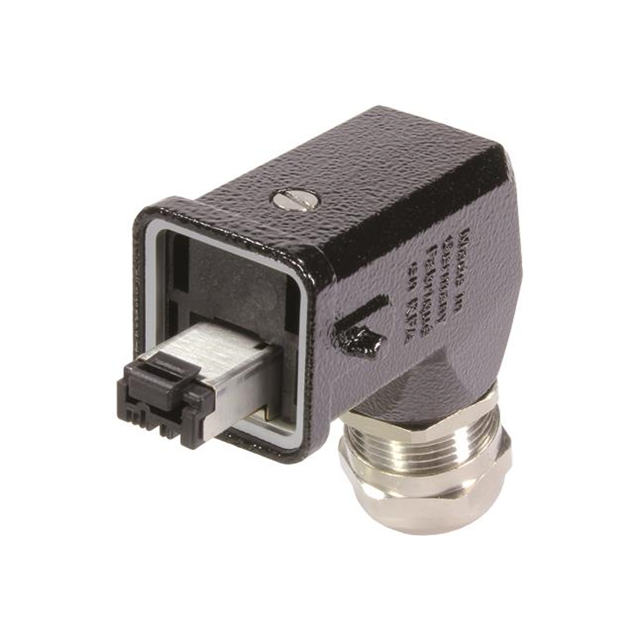

HARTING 09451151106	1.5 A	24 AWG	22 AWG	125 VDC		Cat5	Round Cable Solid or Stranded Wires	IP65 IP67	Shielded	4	8	IDC	Plug		Angled Cable Clamp Housing
HARTING 09451511520XL					Translucent - Blue	Cat6a	Round Cable Stranded Wires	IP20	Shielded			IDC	Plug		Cable Clamp Housing																55 mm	2.165 in	8p8c (RJ45 Ethernet)
