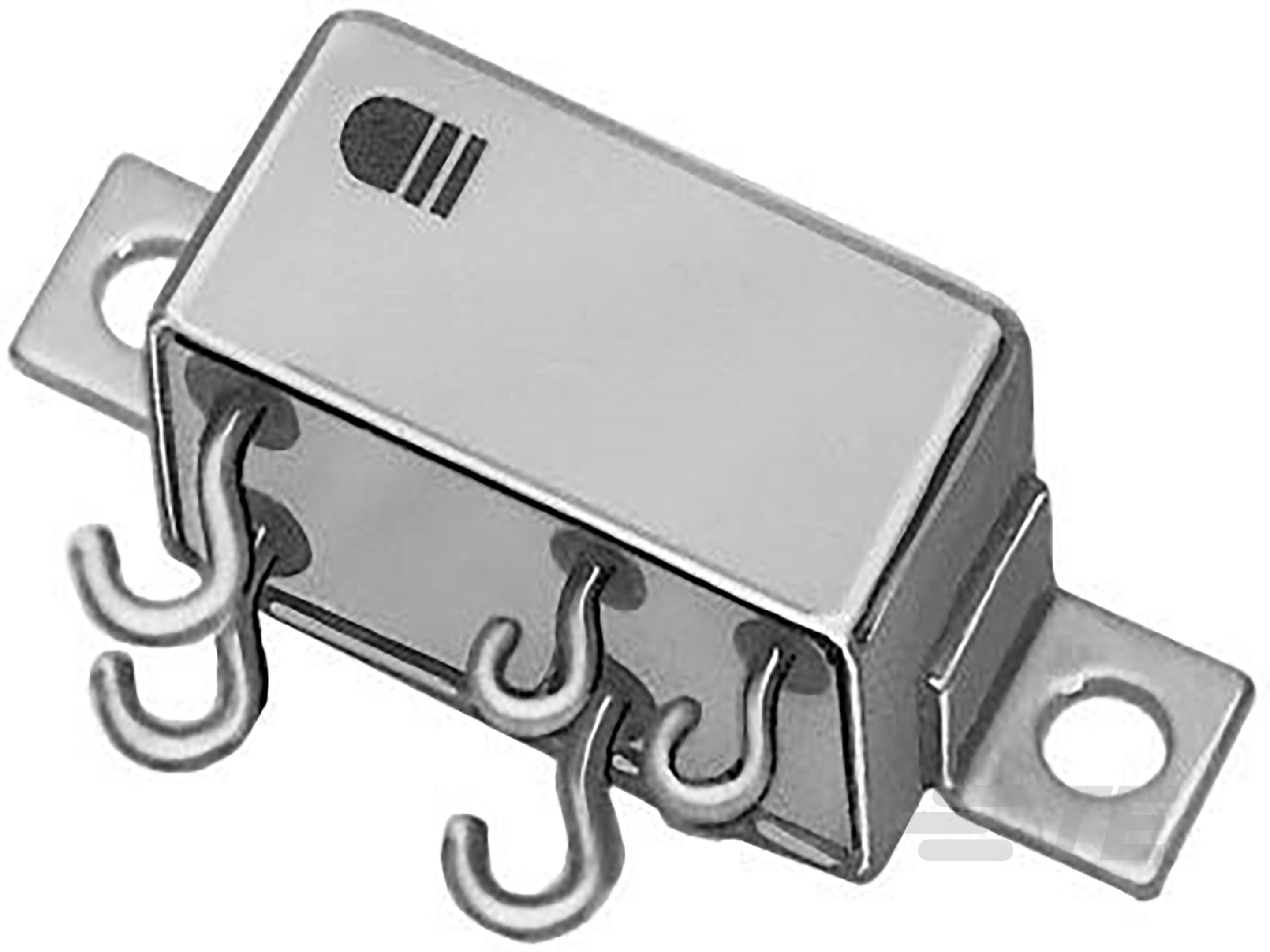

CII Half-Size Relay Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CEW-1C-12B = HALF 10A.1POLE.SI
| Part | Coil Resistance | Relay Type | Termination Style | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Coil Voltage | Coil Type | Contact Rating (Current) | Mounting Type | Must Release Voltage | Must Operate Voltage | Seal Rating | Switching Voltage | Load - Max Switching [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 160 Ohms | General Purpose | PC Pin | 0.075 A | -65 ░C | 125 °C | SPDT (1 Form C) | 12 VDC | Non Latching | 10 A | Chassis Mount | 0.9 VDC | 6.5 VDC | Sealed - Hermetically | 28 VDC | |
 TE Connectivity AMP Connectors | 40 Ohms | General Purpose | PC Pin | 32.1 mA | -65 ░C | 125 °C | SPDT (1 Form C) | Non Latching | 10 A | Through Hole | 0.45 VDC | 3.5 VDC | Sealed - Hermetically | 28 VDC | 280 W |
