PAA10 Series

Catalog

ENCAPSULATED POWER SUPPLY 15V 10 WATT

Part	Load Regulation	Line Regulation	Approval Agency	Number of Outputs	Current - Output (Max) [Max]	Power (Watts)	Features	Applications	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Mounting Type	Voltage - Output 1	Load Regulation
TT Electronics/BI PAA10-13	0.5 %	0.2 %	CB CE cURus	1	667 mA	10 W	Universal Input	Household Appliances ITE (Commercial)	5-SIP Module	1.08 in	20 mm	37 mm	1.46 in	0.79 in	27.5 mm	Enclosed	86 %	264 VAC 305 VAC 370 VDC 430 VDC	90 VAC 127 VDC	60335-1 62368-1	Through Hole	15 V

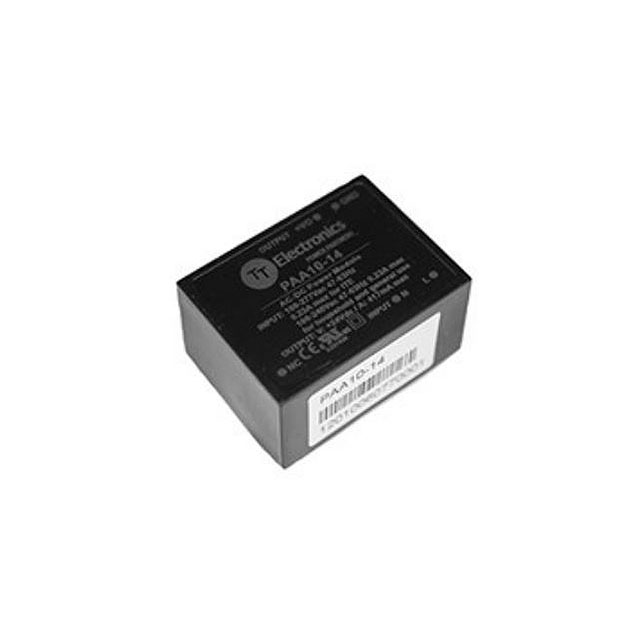

TT Electronics/BI PAA10-10		0.2 %	CB CE cURus	1	2 A	10 W	Universal Input	Household Appliances ITE (Commercial)	5-SIP Module	1.08 in	20 mm	37 mm	1.46 in	0.79 in	27.5 mm	Enclosed	81 %	305 VAC 430 VDC	90 VAC 127 VDC		Through Hole	5 V	±1%
TT Electronics/BI PAA10-12			CB CE cURus	1	833 mA	10 W	Universal Input	Household Appliances ITE (Commercial)	5-SIP Module	1.08 in	20 mm	37 mm	1.46 in	0.79 in	27.5 mm	Enclosed	85 %	264 VAC 305 VAC 370 VDC 430 VDC	90 VAC 127 VDC	60335-1 62368-1	Through Hole	12 V
TT Electronics/BI PAA10-14			CB CE cURus	1		10 W	Universal Input	Household Appliances ITE (Commercial)	5-SIP Module	1.08 in	20 mm	37 mm	1.46 in	0.79 in	27.5 mm	Enclosed	86 %	264 VAC 305 VAC 370 VDC 430 VDC	90 VAC 127 VDC		Through Hole	24 V
