37203 Series

Catalog

CONN RCPT 3POS 0.079 GOLD PCB

Part	Contact Material	Applications	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Style	Insulation Color	Connector Type	Termination	Contact Finish - Mating	Contact Type	Fastening Type	Features	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Post	Voltage Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Rows
3M Electronic Specialty 37203-62A3-003 SC 100	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Square	Liquid Crystal Polymer (LCP)	Flash	13 mm	0.512 in	Board to Cable/Wire	Black	Receptacle	Kinked Pin Solder	Gold	Female Socket	Latch Holder	Board Guide	3 A	2.6 mm	0.102 in	UL94 V-0	Gold	32 V	All	8 µin	0.203 µm	Through Hole	0.079 "	2 mm	1
3M Electronic Specialty 37203-62B3-003PL	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Square	Liquid Crystal Polymer (LCP)	Flash	13 mm	0.512 in	Board to Cable/Wire	Black	Receptacle	Kinked Pin Solder	Gold	Female Socket	Latch Holder	Board Guide	3 A	2.6 mm	0.102 in	UL94 V-0	Gold	32 V	All	8 µin	0.203 µm	Through Hole	0.079 "	2 mm	1

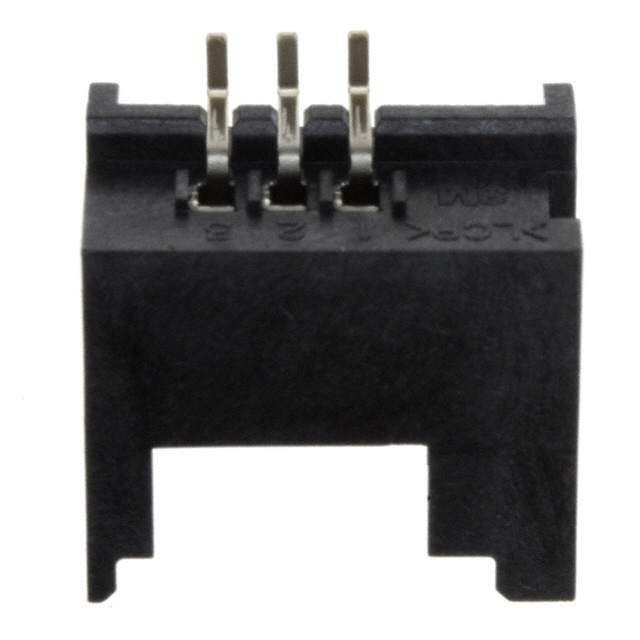

3M Electronic Specialty 37203-1BE0-003 PL	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Square	Liquid Crystal Polymer (LCP)	Flash	7.7 mm	0.303 in	Board to Cable/Wire	Black	Receptacle	Solder	Gold	Female Socket	Latch Holder	Board Guide	3 A			UL94 V-0	Gold	32 V	All	8 µin	0.203 µm	Right Angle Surface Mount	0.079 "	2 mm	1
3M Electronic Specialty 37203-12E0-003 PL	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Square	Liquid Crystal Polymer (LCP)	Flash	7.7 mm	0.303 in	Board to Cable/Wire	Black	Receptacle	Solder	Gold	Female Socket	Latch Holder		3 A			UL94 V-0	Gold	32 V	All	8 µin	0.203 µm	Right Angle Surface Mount	0.079 "	2 mm	1
