TB009 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

FIXED TERMINAL BLOCKS TERMINAL BLOCK, SCREW TYPE, 5.08 , HORIZONTAL, 21 POLES, CUI BLUE, SLOTTED SCREW, PCB MOUNT

Part	Features	Positions Per Level	Color	Current	Mounting Type	Mating Orientation	Wire Termination	Pitch	Pitch	Voltage	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Screw Material - Plating	Screw Thread	Contact Material - Plating	Clamp Material - Plating [custom]	Clamp Material - Plating [custom]	Torque - Screw	Torque - Screw	Positions Per Level [custom]
Same Sky (Formerly CUI Devices) TB009-508-21BE	Interlocking (Side)	21	Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1
Same Sky (Formerly CUI Devices) TB009-508-15BE	Interlocking (Side)	15	Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1	-40 C	105 ░C	Steel - Zinc Plated	M3	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	4.4 Lb-In	0.5 Nm
Same Sky (Formerly CUI Devices) TB009-508-24BE	Interlocking (Side)		Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1										24
Same Sky (Formerly CUI Devices) TB009-508-16BE	Interlocking (Side)	16	Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1	-40 C	105 ░C	Steel - Zinc Plated	M3	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	4.4 Lb-In	0.5 Nm
Same Sky (Formerly CUI Devices) TB009-508-11BE	Interlocking (Side)	11	Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1	-40 C	105 ░C	Steel - Zinc Plated	M3	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	4.4 Lb-In	0.5 Nm

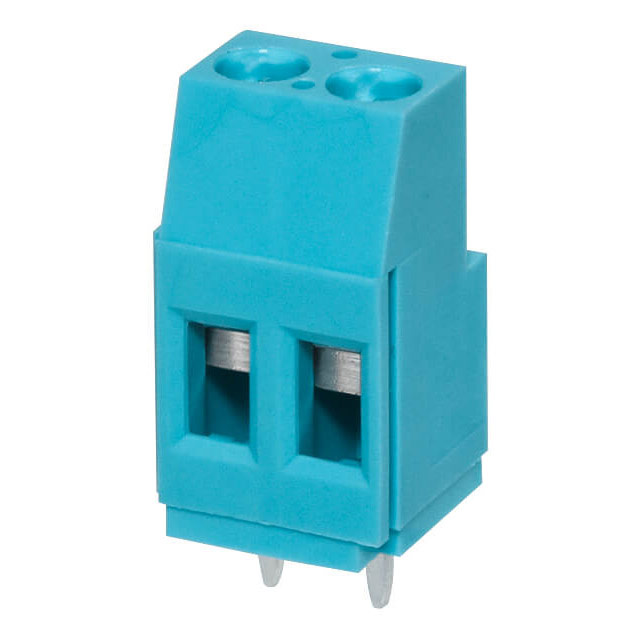

Same Sky (Formerly CUI Devices) TB009-508-02BE	Interlocking (Side)	2	Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1
Same Sky (Formerly CUI Devices) TB009-508-23BE	Interlocking (Side)	23	Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1

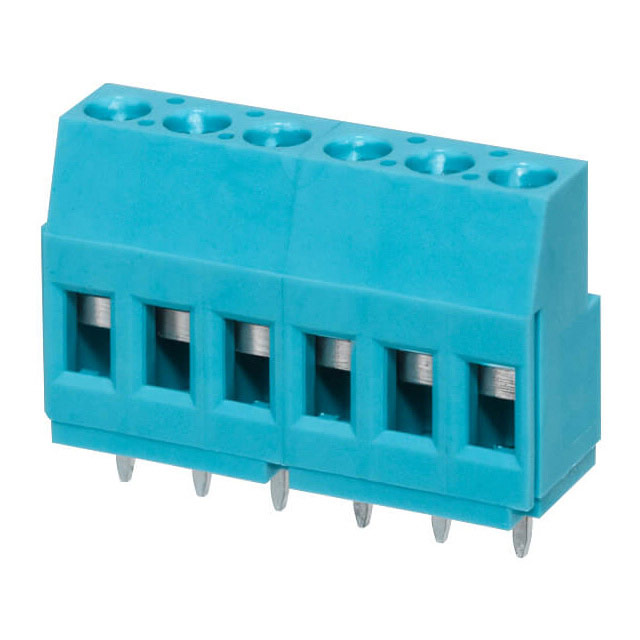

Same Sky (Formerly CUI Devices) TB009-508-06BE	Interlocking (Side)	6	Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1	-40 C	105 ░C	Steel - Zinc Plated	M3	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	4.4 Lb-In	0.5 Nm
Same Sky (Formerly CUI Devices) TB009-508-14BE	Interlocking (Side)	14	Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1	-40 C	105 ░C	Steel - Zinc Plated	M3	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	4.4 Lb-In	0.5 Nm
Same Sky (Formerly CUI Devices) TB009-508-16BE	Interlocking (Side)	16	Blue	20 A	Through Hole	Horizontal with Board	Screw - Rising Cage Clamp	5.08 mm	0.2 in	300 VDC	12 AWG	26 AWG	1
