2GK01 Series

Catalog

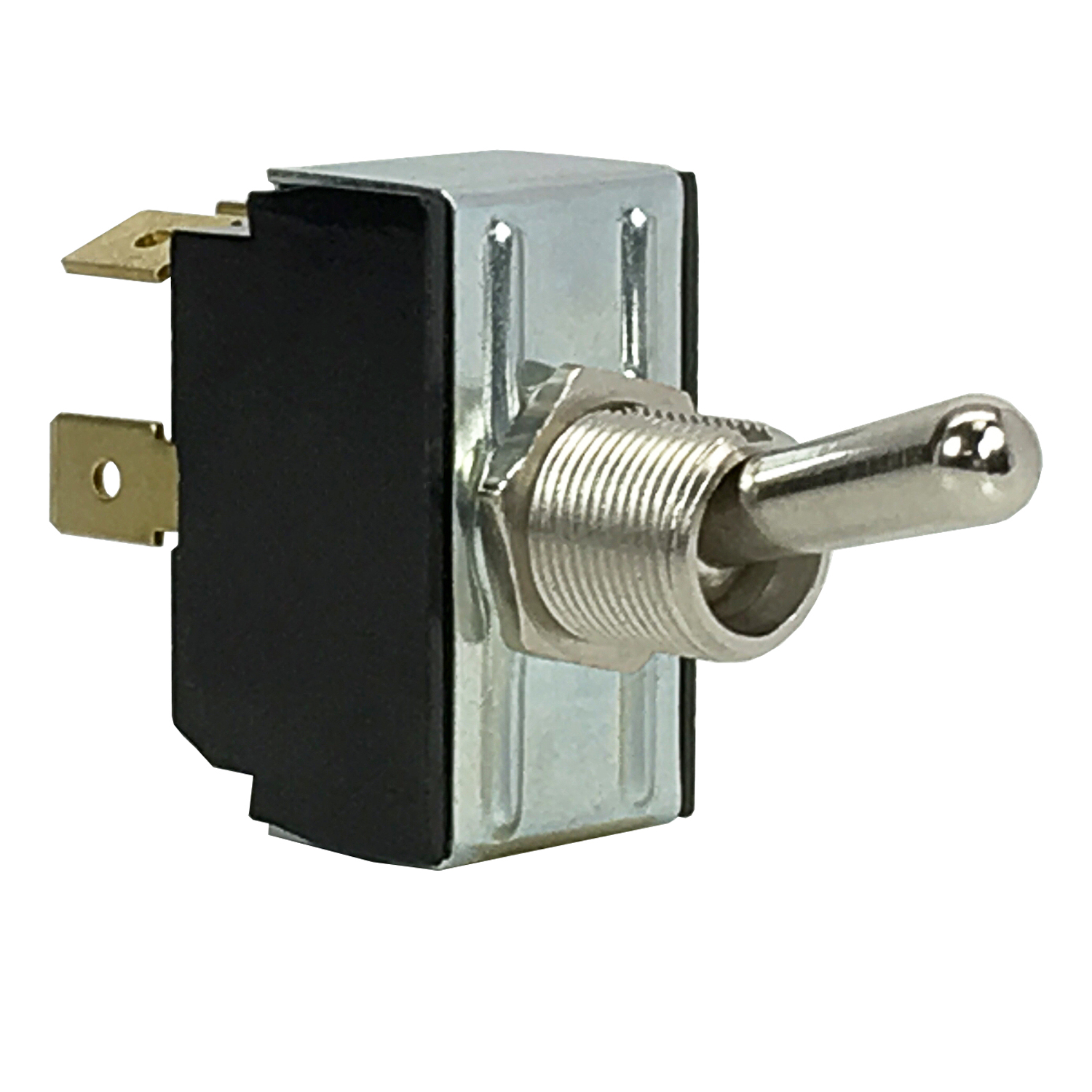

SWITCH TOGGLE DPST 20A 250V

Part	Electrical Life	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Length [x]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Illumination	Mounting Type	Bushing Thread
Carling Technologies 2GK01-73/2 HEX	50000 Cycles	250 V	DPST	12.7 mm	20 A	17.45 mm	Quick Connect - 0.250" (6.3mm)	0 °C	85 °C	Standard Round	On-Off	Non-Illuminated	Panel Mount	15/32-32
Carling Technologies 2GK01-73	50000 Cycles	250 V	DPST	12.7 mm	20 A	17.45 mm	Quick Connect - 0.250" (6.3mm)	0 °C	85 °C	Standard Round	On-Off	Non-Illuminated	Panel Mount	15/32-32
