19K203 Series
Manufacturer: Rosenberger
Beta
⌘K

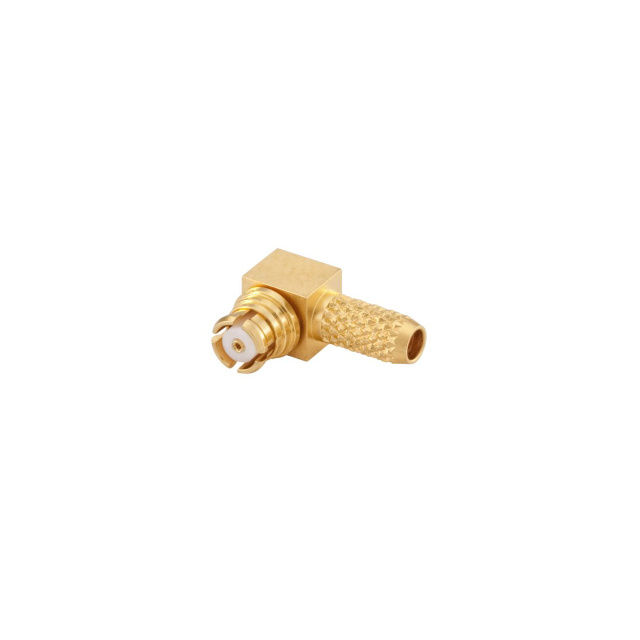

SMP RIGHT ANGLE JACK
| Part | Dielectric Material | Body Material | Voltage Rating | Center Contact Plating | Body Finish | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Cable Group | Fastening Type | Frequency - Max [Max] | Impedance | Housing Color | Shield Termination | Mounting Type | Number of Ports | Contact Termination | Connector Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | Brass | 335 V | Gold | Gold | 1000 | 155 C | -65 ░C | RG-178B | Snap-On | 26.5 GHz | 50 Ohms | Gold | Crimp | Free Hanging (In-Line) Right Angle | 1 | Solder | Female Socket Jack | Beryllium Copper |
