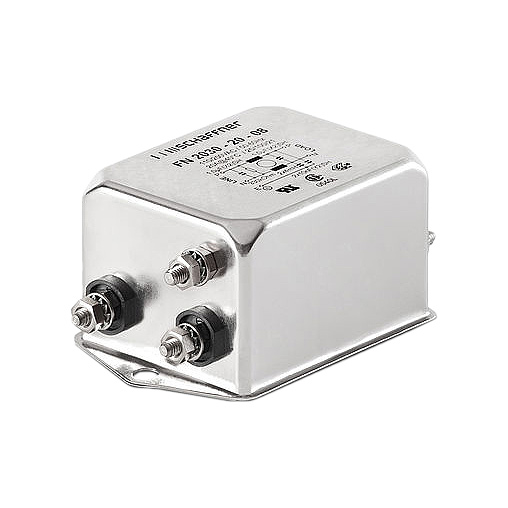

Schaffner FN2030 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
LINE FILTER 250VAC/VDC 1A CHASS
| Part | Termination Style | Frequency - Operating [Min] | Frequency - Operating [Max] | Applications | Voltage - Rated DC | Inductance | Current | Filter Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated AC | Configuration | Approval Agency | Mounting Type | Frequency - Operating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Wire Leads | 50 Hz | 60 Hz | General Purpose | 250 V | 20 mH | 1 A | Single Phase | 100 °C | -25 °C | 250 V | Two Stage | CE CSA ENEC UKCA UR | Chassis Mount | |
 TE Connectivity AMP Connectors | Quick Connect | General Purpose | 14 mH | 3 A | Single Phase | 100 °C | -25 °C | 250 V | Single Stage | CSA ENEC UR | Chassis Mount | DC ~ 400Hz | |||
 TE Connectivity AMP Connectors | Quick Connect | General Purpose | 250 V | 14 mH | 3 A | Single Phase | 100 °C | -25 °C | 250 V | Single Stage | CE CSA ENEC UR | Chassis Mount | DC ~ 400Hz | ||
 TE Connectivity AMP Connectors | Quick Connect | General Purpose | 250 V | 8 mH | 8 A | Single Phase | 100 °C | -25 °C | 250 V | Single Stage | CE CSA ENEC UR | Chassis Mount | DC ~ 400Hz | ||
 TE Connectivity AMP Connectors | Quick Connect | Safety | 8 mH | 6 A | Single Phase | 100 °C | -25 °C | 250 V | Single Stage | CSA ENEC UR | Chassis Mount | DC ~ 400Hz | |||
 TE Connectivity AMP Connectors | Quick Connect | General Purpose | 250 V | 8 mH | 10 A | Single Phase | 100 °C | -25 °C | 250 V | Single Stage | CE CSA ENEC UR | Chassis Mount | DC ~ 400Hz | ||
 TE Connectivity AMP Connectors | Quick Connect | Safety | 8 mH | 8 A | Single Phase | 100 °C | -25 °C | 250 V | Single Stage | CSA ENEC UR | Chassis Mount | DC ~ 400Hz | |||
 TE Connectivity AMP Connectors | Wire Leads | 50 Hz | 60 Hz | General Purpose | 250 V | 14 mH | 4 A | Single Phase | 100 °C | -25 °C | 250 V | Two Stage | CE CSA ENEC UKCA UR | Chassis Mount | |
 TE Connectivity AMP Connectors | Quick Connect | Safety | 4 mH | 16 A | Single Phase | 100 °C | -25 °C | 250 V | Single Stage | CSA ENEC UR | Chassis Mount | DC ~ 400Hz | |||
 TE Connectivity AMP Connectors | Threaded Post (M4) | 50 Hz | 60 Hz | General Purpose | 250 V | 4 mH | 16 A | Single Phase | 100 °C | -25 °C | 250 V | Two Stage | CE CSA ENEC UKCA UR | Chassis Mount |
