AS1D-2M Series

Catalog

SLIDE SWITCH, SPDT, 0.05A, 48V, TH

Part	Actuator Type	Operating Force [Max]	Operating Force [Min]	Actuator Length [x]	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Mounting Type	Contact Timing	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Contact Finish	Electrical Life	Circuit	Switch Travel [custom]	Voltage Rating - AC

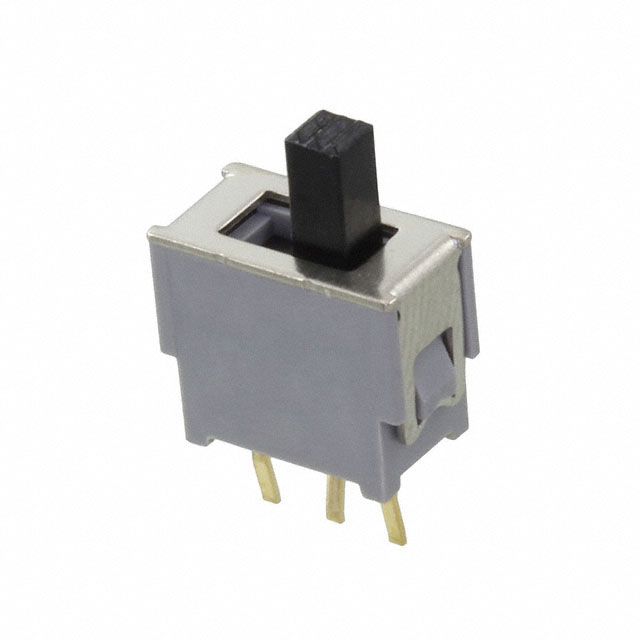

Nidec Components Corporation AS1D-2M-10-Z	Standard	500 gf	70 gf	4.3 mm	48 V	PC Pin	50 mA	Through Hole	Non-Shorting	85 °C	-20 C	On-On	Gold	10000 Cycles	SPDT	2.2 mm	48 V
