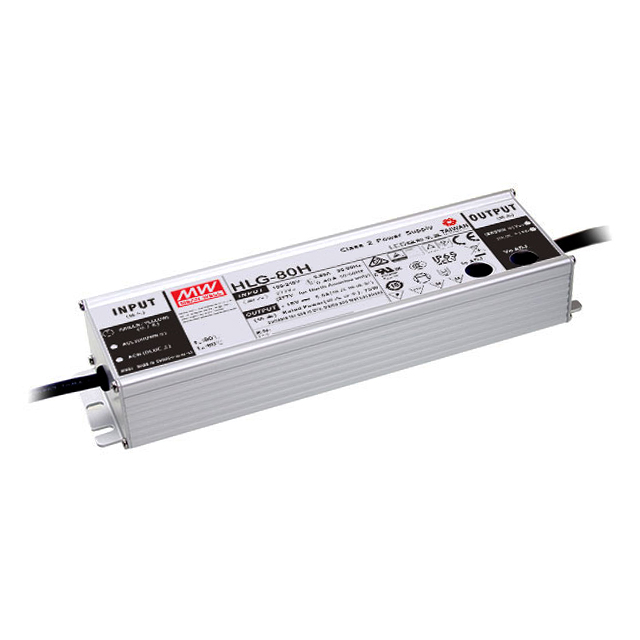

HLG-80H Series

Catalog

LED DRVR CC/CV AC/DC 33-40V 2.3A

Part	Mounting Type	Topology	Ratings	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output (Max) [Max]	Type	Power (Watts)	Voltage - Input (Max) [Max]	Efficiency	Voltage - Isolation	Approval Agency	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Current - Output (Max)	Dimming	Voltage - Output
MEAN WELL USA Inc. HLG-80H-36A	Chassis Mount	AC DC Converter	IP65	33	40	90 VAC	80 °C	-40 C	1	2.3 A	Constant Current Voltage	83 W	305 VAC	91 %	3750 VDC	CB CCC CE cULus cURus PSE RCM TUV UL	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OCP OTP OVP SCP
MEAN WELL USA Inc. HLG-80H-15	Chassis Mount	AC DC Converter	IP67	9 V	15 V	90 VAC	80 °C	-40 C	1		Constant Current Voltage	75 W	305 VAC	89 %	3750 VDC	CB CCC CE cULus cURus PSE RCM TUV UL	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OCP OTP OVP SCP	5 A
MEAN WELL USA Inc. HLG-80H-36B	Chassis Mount	AC DC Converter	IP67	21.6 V	36 V	90 VAC	80 °C	-40 C	1	2.3 A	Constant Current Voltage	83 W	305 VAC	91 %	3750 VDC	CB CCC CE cULus cURus PSE RCM TUV UL	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OCP OTP OVP SCP		Analog PWM

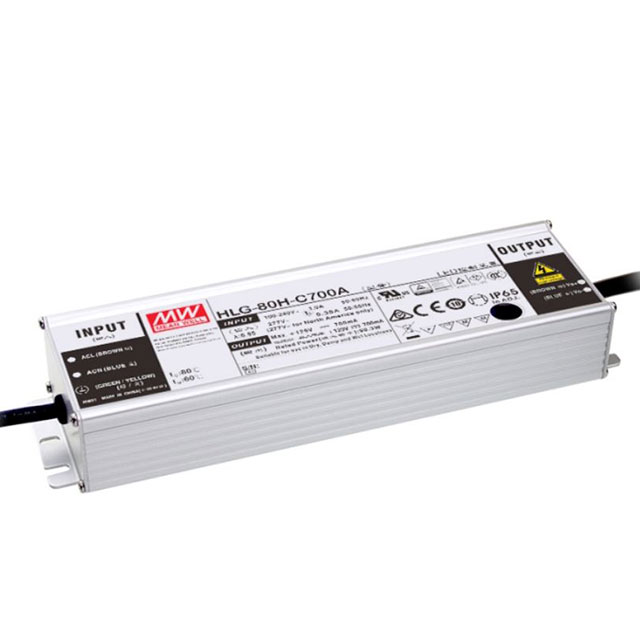

MEAN WELL USA Inc. HLG-80H-C700AB	Chassis Mount	AC DC Converter	IP65			90 VAC	80 °C	-40 C	1	700 mA	Constant Current	90 W	305 VAC	91.5 %	3750 VDC	CB CCC CE cURus EAC RCM TUV	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OTP OVP SCP
MEAN WELL USA Inc. HLG-80H-48AB	Chassis Mount	AC DC Converter	IP65			90 VAC	80 °C	-40 C	1	1.7 A	Constant Current Voltage	82 W	305 VAC	91 %	3750 VDC	CB CCC CE cULus cURus EAC KC PSE RCM TUV UL	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OCP OTP OVP SCP			48 V
MEAN WELL USA Inc. HLG-80H-54AB	Chassis Mount	AC DC Converter	IP65			90 VAC	80 °C	-40 C	1	1.5 A	Constant Current Voltage	81 W	305 VAC	91 %	3750 VDC	CB CCC CE cULus cURus EAC KC PSE RCM TUV UL	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OCP OTP OVP SCP			54 V
MEAN WELL USA Inc. HLG-80H-24A	Chassis Mount	AC DC Converter	IP65	22 V	27 V	90 VAC	80 °C	-40 C	1	3.4 A	Constant Current Voltage	82 W	305 VAC	90.5 %	3750 VDC	CB CCC CE cULus cURus PSE RCM TUV UL	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OCP OTP OVP SCP
MEAN WELL USA Inc. HLG-80H-36AB	Chassis Mount	AC DC Converter	IP65			90 VAC	80 °C	-40 C	1	2.3 A	Constant Current Voltage	83 W	305 VAC	91 %	3750 VDC	CB CCC CE cULus cURus EAC KC PSE RCM TUV UL	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OCP OTP OVP SCP		Analog PWM	36 V
MEAN WELL USA Inc. HLG-80H-12	Chassis Mount	AC DC Converter	IP67	7.2 V	12 V	90 VAC	80 °C	-40 C	1		Constant Current Voltage	60 W	305 VAC	88 %	3750 VDC	CB CCC CE cULus cURus PSE RCM TUV UL	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OCP OTP OVP SCP	5 A
MEAN WELL USA Inc. HLG-80H-42AB	Chassis Mount	AC DC Converter	IP65			90 VAC	80 °C	-40 C	1	1.95 A	Constant Current Voltage	82 W	305 VAC	91 %	3750 VDC	CB CCC CE cULus cURus EAC KC PSE RCM TUV UL	Wire Leads	2.42 in	171.8 mm	38.8 mm	1.53 in	61.5 mm	6.76 "	OCP OTP OVP SCP		Analog PWM	42 V
