TCH-V86 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Approval Agency	Driver Circuitry	Sound Pressure Level (SPL)	Ingress Protection	Operating Mode	Size / Dimension [diameter]	Size / Dimension [diameter]	Technology	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Port Location	Current - Supply [Max] [x]	Current - Supply [Min] [x]	Mounting Type	Input Type	Termination	Termination	Termination	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [diameter]
Floyd Bell Inc TCH-V86-530-S(M)	UL UR	Indicator Internally Driven	90 dB	IP68 - Dust Tight Waterproof	Chime	1.41 in	35.81 mm	Piezo	1.25 "	31.75 mm	2.9 kHz	Top	40 mA	4 mA	Panel Mount	DC	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	5 VDC	30 V
Floyd Bell Inc TCH-V86-530-Q(M)	UL UR	Indicator Internally Driven	90 dB	IP68 - Dust Tight Waterproof	Chime	1.41 in	35.81 mm	Piezo	1.25 "	31.75 mm	2.9 kHz	Top	40 mA	4 mA	Panel Mount	DC	0.25 "	Quick Connect Tab	6.35 mm	5 VDC	30 V

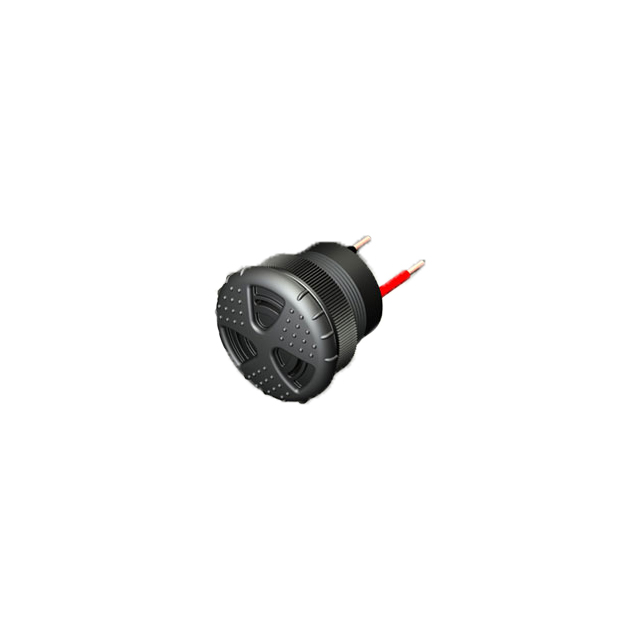

Floyd Bell Inc TCH-V86-530-W(M)	UL UR	Indicator Internally Driven	90 dB	IP68 - Dust Tight Waterproof	Chime	1.41 in	35.81 mm	Piezo	1.25 "	31.75 mm	2.9 kHz	Top	40 mA	4 mA	Panel Mount	DC		Wire Leads		5 VDC	30 V
Floyd Bell Inc TCH-V86-530-W(F)	UL UR	Indicator Internally Driven	90 dB	IP68 - Dust Tight Waterproof	Chime	1.41 in	35.81 mm	Piezo	1.25 "	31.75 mm	2.9 kHz	Top	40 mA	4 mA	Panel Mount	DC		Wire Leads		5 VDC	30 V

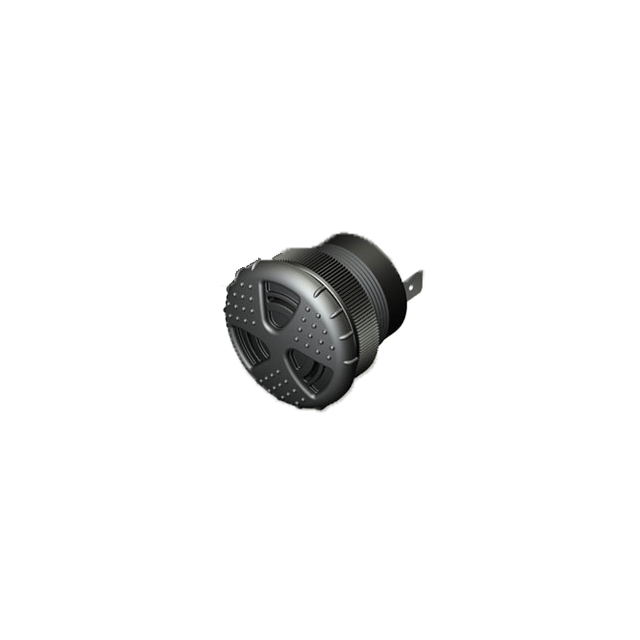

Floyd Bell Inc TCH-V86-530-Q(F)	UL UR	Indicator Internally Driven	90 dB	IP68 - Dust Tight Waterproof	Chime		1.409 in	Piezo	1.25 "	31.75 mm	2.9 kHz	Top	40 mA	4 mA	Panel Mount	DC	0.25 "	Quick Connect Tab	6.35 mm	5 VDC	30 V	35.8 mm
