2M1-SP3 Series

Catalog

SWITCH TOGGLE SPDT 5A 125V

Part	Actuator Material	Electrical Life	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Current Rating (Amps)	Switch Function	Bushing Thread	Ingress Protection	Circuit	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Illumination	Actuator Type
Carling Technologies 2M1-SP3-T1-B9-M2QE	Brass Chrome Plated	50000 Cycles	28 V	Panel Mount	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	5 A	On-Off-On	1/4-40	IP67 - Dust Tight Waterproof	SPDT	125 V	0.25 in	10.4 mm	Non-Illuminated	Standard Round
Carling Technologies 2M1-SP3-T2-B4-M7RE	Brass Chrome Plated	50000 Cycles	20 V	Right Angle Through Hole Vertical	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	0.4 VA	On-Off-On	Unthreaded		SPDT	20 V		5.4 mm	Non-Illuminated	Standard Round
Carling Technologies 2M1-SP3-T1-B3-M7RE	Brass Chrome Plated	50000 Cycles	20 V	Panel Mount Right Angle Vertical	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	0.4 VA	On-Off-On	1/4-40		SPDT	20 V	0.25 in	10.4 mm	Non-Illuminated	Standard Round
Carling Technologies 2M1-SP3-T1-B1-M7RE	Brass Chrome Plated	50000 Cycles	20 V	Panel Mount Right Angle Vertical	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	0.4 VA	On-Off-On	1/4-40		SPDT	20 V	0.25 in	10.4 mm	Non-Illuminated	Standard Round
Carling Technologies 2M1-SP3-T6-BA-M7RE	Brass Chrome Plated	50000 Cycles	20 V	Right Angle Through Hole Vertical	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	0.4 VA	On-Off-On	1/4-40		SPDT	20 V	0.25 in	12.1 mm	Non-Illuminated	Flatted
Carling Technologies 2M1-SP3-T1-B1-M6RE	Brass Chrome Plated	50000 Cycles	20 V	Panel Mount Right Angle	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	0.4 VA	On-Off-On	1/4-40		SPDT	20 V	0.25 in	10.4 mm	Non-Illuminated	Standard Round

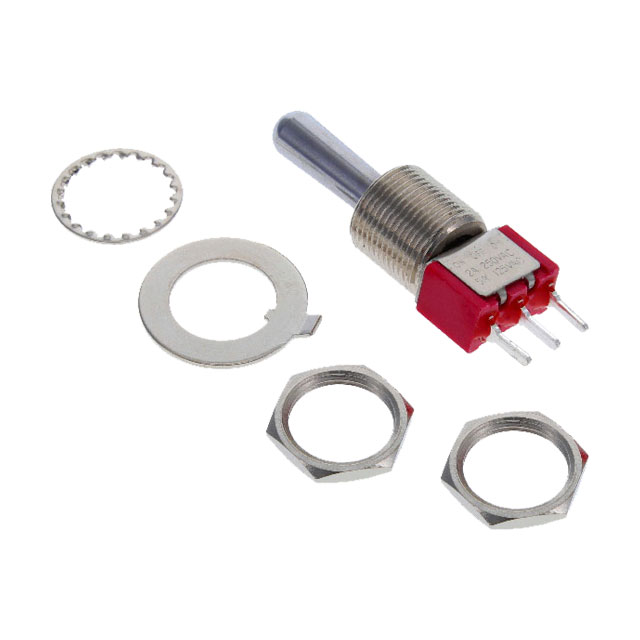

Carling Technologies 2M1-SP3-T8-B0-M2QE	Brass Chrome Plated	50000 Cycles	28 V	Panel Mount	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	5 A	On-Off-On	15/32-32	IP67 - Dust Tight Waterproof	SPDT	125 V	11.91 mm	17.5 mm	Non-Illuminated	Anti-Rotation
Carling Technologies 2M1-SP3-T2-B5-M2GE	Brass Chrome Plated	50000 Cycles	28 V	Panel Mount	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	5 A	On-Off-On	1/4-40	IP67 - Dust Tight Waterproof	SPDT	125 V	0.25 in	5.4 mm	Non-Illuminated	Standard Round
Carling Technologies 2M1-SP3-T7-B0-M2QE	Brass Chrome Plated	50000 Cycles	28 V	Panel Mount	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	5 A	On-Off-On	15/32-32	IP67 - Dust Tight Waterproof	SPDT	125 V	11.91 mm	11.7 mm	Non-Illuminated	Anti-Rotation
