13-56 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

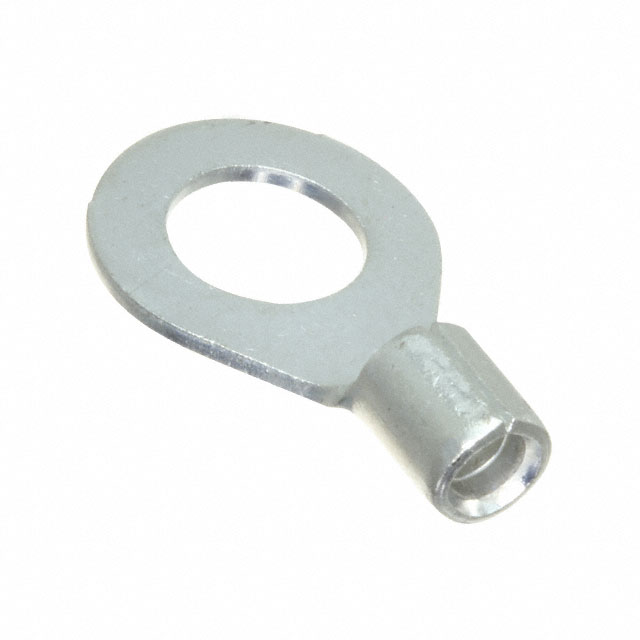

CONN RING CIRC 10-12AWG #5/16
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Insulation | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges | Width - Outer Edges | Contact Material | Contact Finish | Mounting Type | Terminal Type | Features | Termination | Stud/Tab Size | Thickness | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 10 AWG | 12 AWG | Non-Insulated | 0.96 in | 24.38 mm | 0.53 in | 13.46 mm | Copper ETP | Tin | Free Hanging (In-Line) | Circular | Butted Seam | Crimp | 0.3125 Stud | 0.04 in | 1.02 mm |
