957210 Series

Catalog

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Termination	Number of Positions	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Insulation Material	Connector Type	Contact Finish - Post	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Features	Material Flammability Rating	Contact Material	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Finish - Mating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Height	Insulation Height
3M Electronic Specialty 957210-6002-AR	39.4 çin	1 çm	Black	Solder	10	2	0.118 in	3 mm	Thermoplastic	Header	Tin	Male Pin	0.079 "	2 mm	Through Hole	Keying Slot	UL94 V-0	Copper Alloy	Push-Pull	2 mm	0.079 in	Shrouded - 4 Wall	Gold	Square	-40 C	105 ░C	Flash	All	5.6 mm	0.22 in

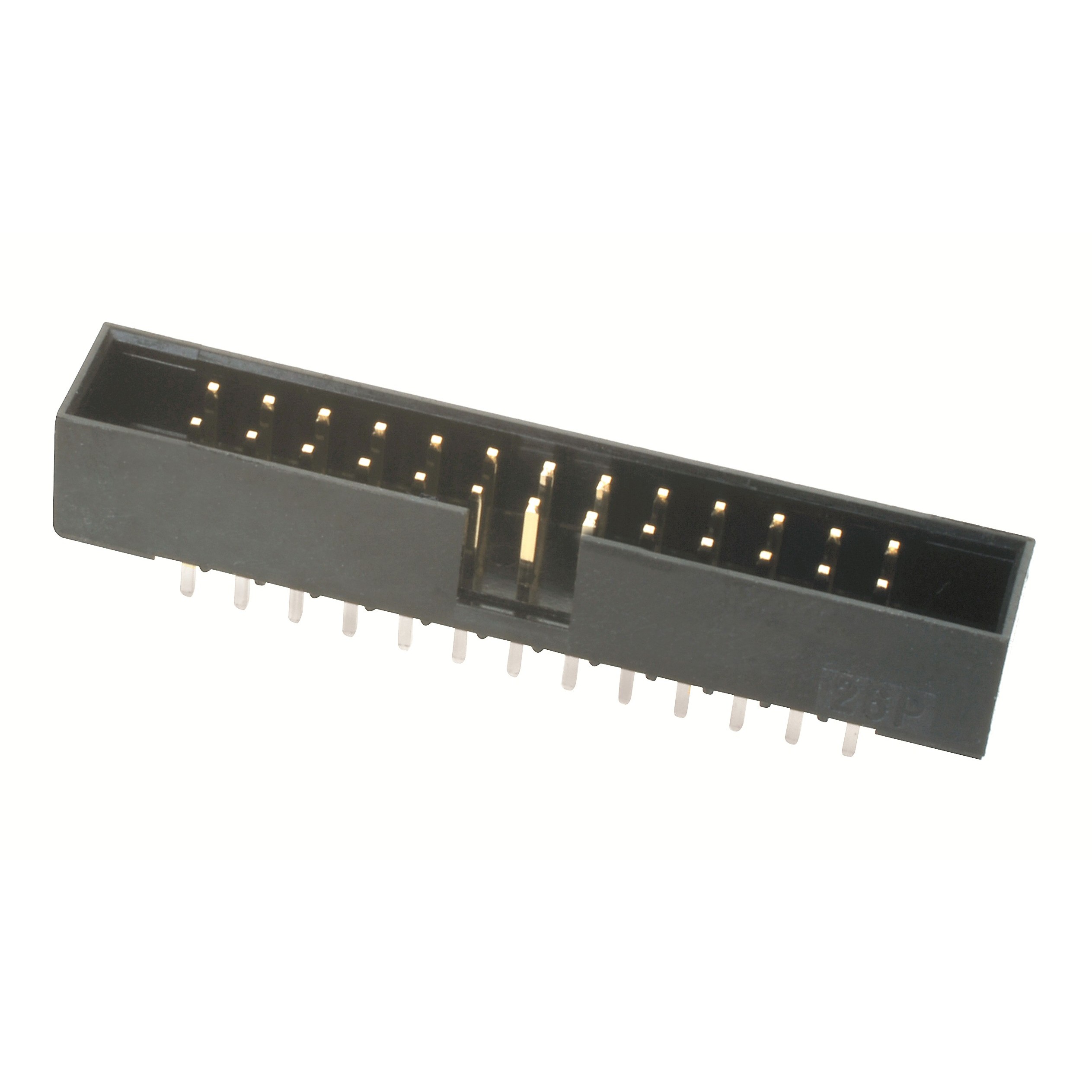

3M Electronic Specialty 957210-2000-AR-PR	39.4 çin	1 çm	Black	Solder	10	2			Thermoplastic	Header	Tin	Male Pin	0.079 "	2 mm	Surface Mount	Keying Slot Pick and Place	UL94 V-0	Copper Alloy	Push-Pull	2 mm	0.079 in	Shrouded - 4 Wall	Gold	Square	-40 C	105 ░C	Flash	All	5.6 mm	0.22 in
3M Electronic Specialty 957210-2000-AR-PT	39.4 çin	1 çm	Black	Solder	10	2			Thermoplastic	Header	Tin	Male Pin	0.079 "	2 mm	Surface Mount	Keying Slot Pick and Place	UL94 V-0	Copper Alloy	Push-Pull	2 mm	0.079 in	Shrouded - 4 Wall	Gold	Square	-40 C	105 ░C	Flash	All	5.6 mm	0.22 in
