2823092 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

10P,2MM,BRK HDR,SRRT,2.8,SN,TB

Part	Mounting Type	Connector Type	Current Rating (Amps)	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Fastening Type	Insulation Color	Number of Positions Loaded	Contact Material	Contact Type	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Shape	Voltage Rating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows
TE Connectivity Raychem Cable Protection 1-2823092-0	Through Hole Right Angle	Breakaway Header	2 A	Unshrouded	Tin	118.1 µin	3 µm	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Black	All	Phosphor Bronze	Male Pin	10	0.079 in	2 mm	UL94 V-0	Thermoplastic	0.11 in	2.8 mm	0.079 in	2 mm	Square	125 VAC	Solder	0.3 µm	12 µin	1
TE Connectivity Raychem Cable Protection 2823092-5	Through Hole Right Angle	Breakaway Header	2 A	Unshrouded	Tin	118.1 µin	3 µm	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Black	All	Phosphor Bronze	Male Pin		0.079 in	2 mm	UL94 V-0	Thermoplastic	0.11 in	2.8 mm	0.079 in	2 mm	Square	125 VAC	Solder	0.3 µm	12 µin	1

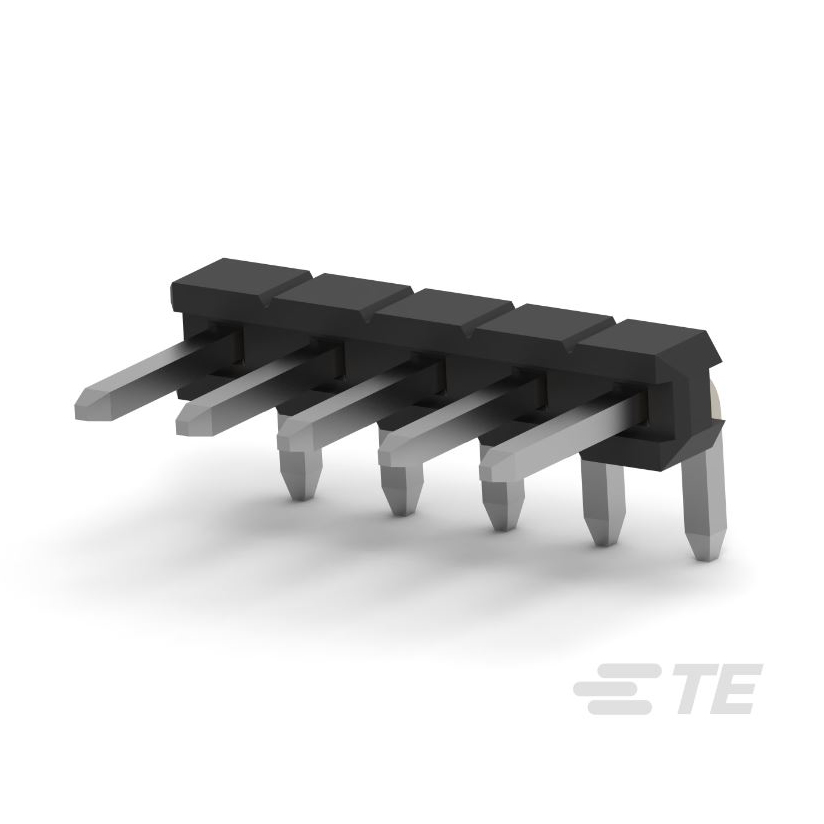

TE Connectivity Raychem Cable Protection 2823092-6	Through Hole Right Angle	Breakaway Header	2 A	Unshrouded	Tin	118.1 µin	3 µm	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Black	All	Phosphor Bronze	Male Pin	6	0.079 in	2 mm	UL94 V-0	Thermoplastic	0.11 in	2.8 mm	0.079 in	2 mm	Square	125 VAC	Solder	0.3 µm	12 µin	1

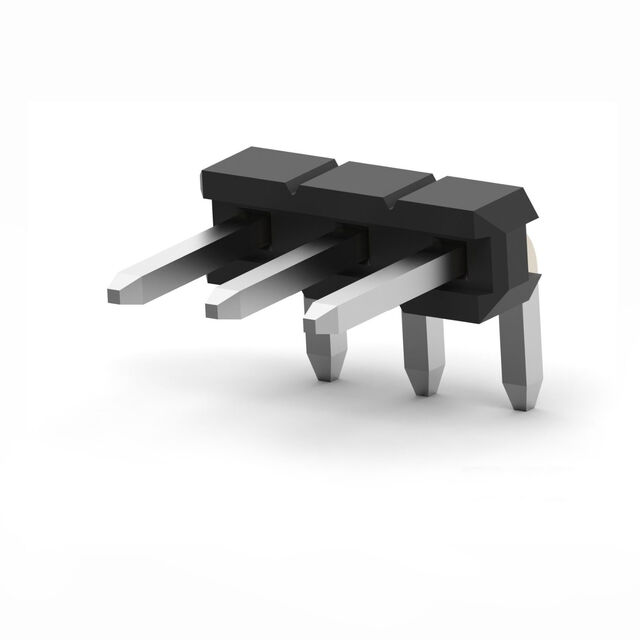

TE Connectivity Raychem Cable Protection 2823092-3	Through Hole Right Angle	Breakaway Header	2 A	Unshrouded	Tin	118.1 µin	3 µm	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Black	All	Phosphor Bronze	Male Pin		0.079 in	2 mm	UL94 V-0	Thermoplastic	0.11 in	2.8 mm	0.079 in	2 mm	Square	125 VAC	Solder	0.3 µm	12 µin	1
TE Connectivity Raychem Cable Protection 2823092-4	Through Hole Right Angle	Breakaway Header	2 A	Unshrouded	Tin	118.1 µin	3 µm	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Black	All	Phosphor Bronze	Male Pin	4	0.079 in	2 mm	UL94 V-0	Thermoplastic	0.11 in	2.8 mm	0.079 in	2 mm	Square	125 VAC	Solder	0.3 µm	12 µin	1
TE Connectivity Raychem Cable Protection 2-2823092-5	Through Hole Right Angle	Breakaway Header	2 A	Unshrouded	Tin	118.1 µin	3 µm	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Black	All	Phosphor Bronze	Male Pin		0.079 in	2 mm	UL94 V-0	Thermoplastic	0.11 in	2.8 mm	0.079 in	2 mm	Square	125 VAC	Solder	0.3 µm	12 µin	1

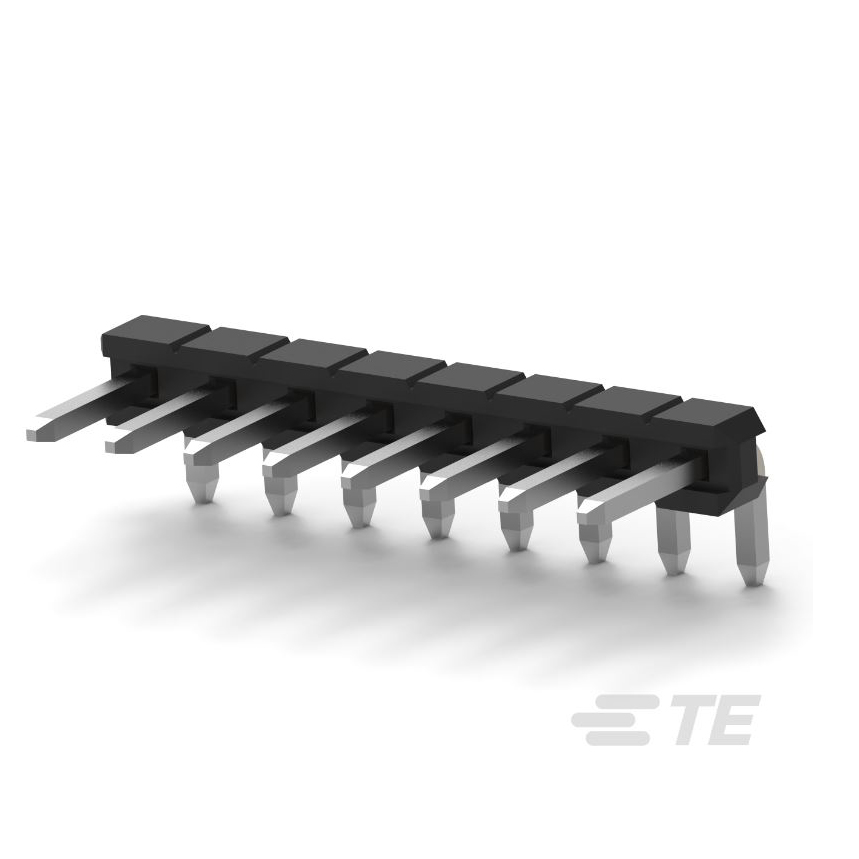

TE Connectivity Raychem Cable Protection 2823092-8	Through Hole Right Angle	Breakaway Header	2 A	Unshrouded	Tin	118.1 µin	3 µm	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Black	All	Phosphor Bronze	Male Pin	8	0.079 in	2 mm	UL94 V-0	Thermoplastic	0.11 in	2.8 mm	0.079 in	2 mm	Square	125 VAC	Solder	0.3 µm	12 µin	1
