6100FE Series
Manufacturer: Belden Inc.
Beta
⌘K

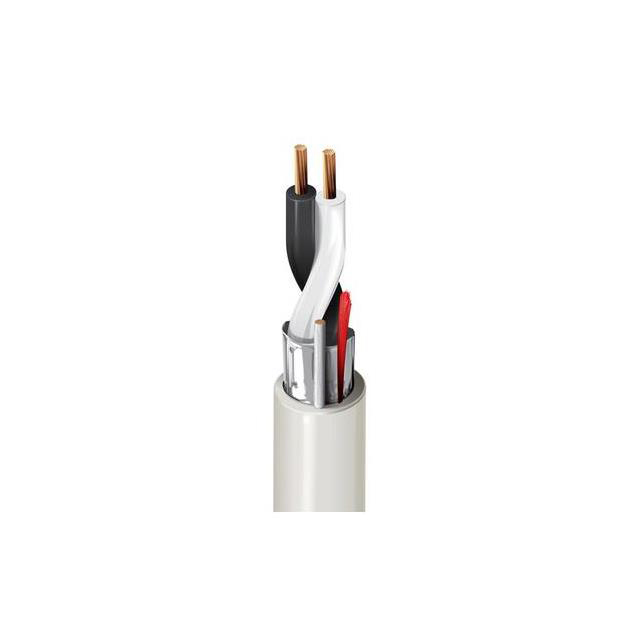

CABLE 2COND 14AWG NAT SHLD
| Part | Shield Coverage | Shield Material | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Length | Length | Cable Type | Voltage | Jacket Color | Shield Type | Conductor Insulation | Wire Gauge | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Material | Number of Conductors | Ratings | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Drain Wire Rip Cord | 5.59 mm | 0.22 in | Security Sound | 152.4 m | 500 ft | Multi-Conductor | 150 V | Natural | Foil | Low Smoke Poly-Vinyl Chloride (LSPVC) | 14.5 AWG | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 2 | UL Style CMP | Copper Bare |
