3520-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]

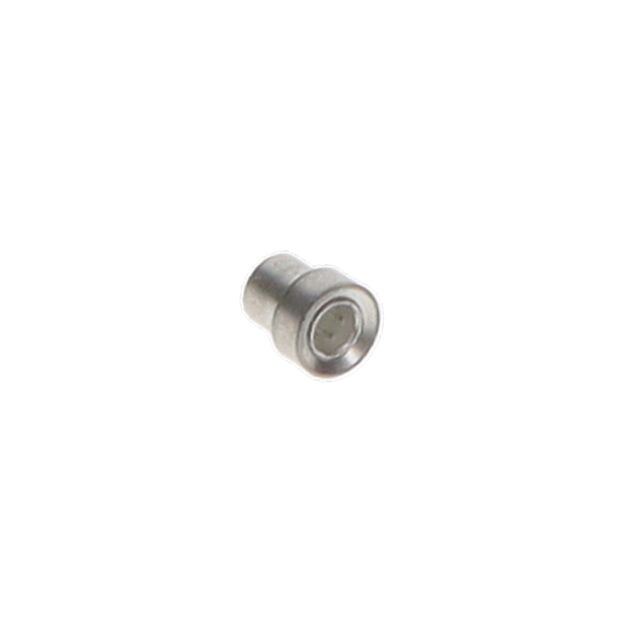

Mill-Max Manufacturing Corp. 3520-0-15-80-18-80-10-0	-55 C	125 °C	Beryllium Copper	No Tail	0.07 in	1.78 mm	0.043 in	1.09 mm	0.94 mm	0.037 in	0.088 in	2.24 mm	Solder	0.095 in	2.41 mm	0.095 "	2.41 mm	200 Áin	5.08 Ám	Tin	1.37 mm	0.054 in

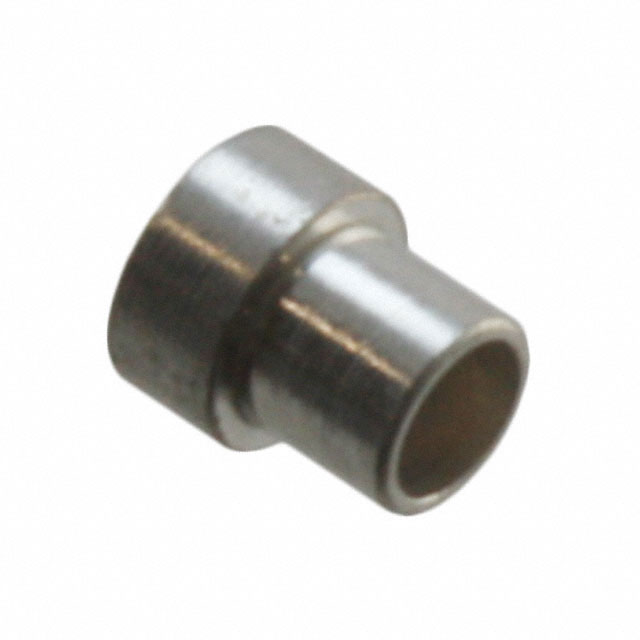

Mill-Max Manufacturing Corp. 3520-0-15-01-18-27-10-0	-55 C	125 °C	Beryllium Copper	No Tail	0.07 in	1.78 mm	0.043 in	1.09 mm	0.94 mm	0.037 in	0.088 in	2.24 mm	Solder	0.095 in	2.41 mm	0.095 "	2.41 mm	30 Áin	0.76 Ám	Gold	1.37 mm	0.054 in
Mill-Max Manufacturing Corp. 3520-0-15-01-18-14-10-0	-55 C	125 °C	Beryllium Copper	No Tail	0.07 in	1.78 mm	0.043 in	1.09 mm	0.94 mm	0.037 in	0.088 in	2.24 mm	Solder	0.095 in	2.41 mm	0.095 "	2.41 mm	10 Áin	0.25 Ám	Gold	1.37 mm	0.054 in

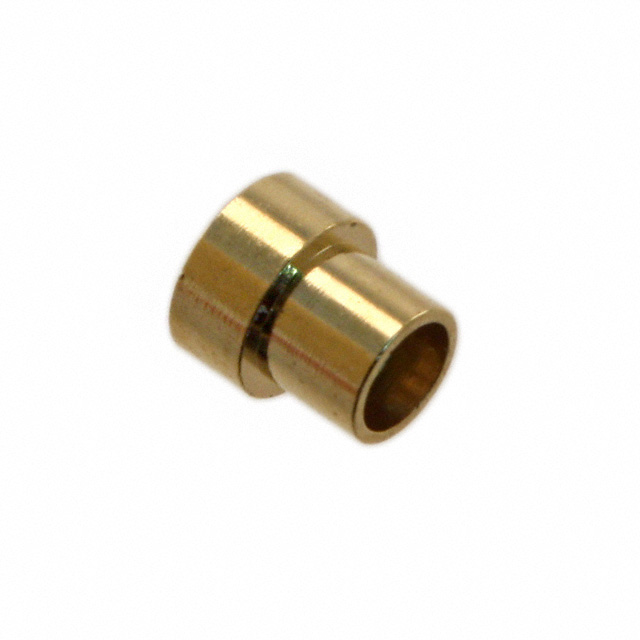

Mill-Max Manufacturing Corp. 3520-0-15-15-18-27-10-0	-55 C	125 °C	Beryllium Copper	No Tail	0.07 in	1.78 mm	0.043 in	1.09 mm	0.94 mm	0.037 in	0.088 in	2.24 mm	Solder	0.095 in	2.41 mm	0.095 "	2.41 mm	30 Áin	0.76 Ám	Gold	1.37 mm	0.054 in
