745-063 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 63POS 0.100

Part	Termination Rows	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Color	Card Thickness [Max]	Card Thickness [Min]	Gender	Card Type	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions/Bay/Row	Pitch	Pitch	Number of Rows	Number of Positions	Contact Material	Contact Type	Read Out
EDAC Inc. 745-063-525-101	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single
EDAC Inc. 745-063-522-106	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single
EDAC Inc. 745-063-541-101	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single
EDAC Inc. 745-063-540-106	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single
EDAC Inc. 745-063-541-106	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single
EDAC Inc. 745-063-540-101	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single
EDAC Inc. 745-063-522-101	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single

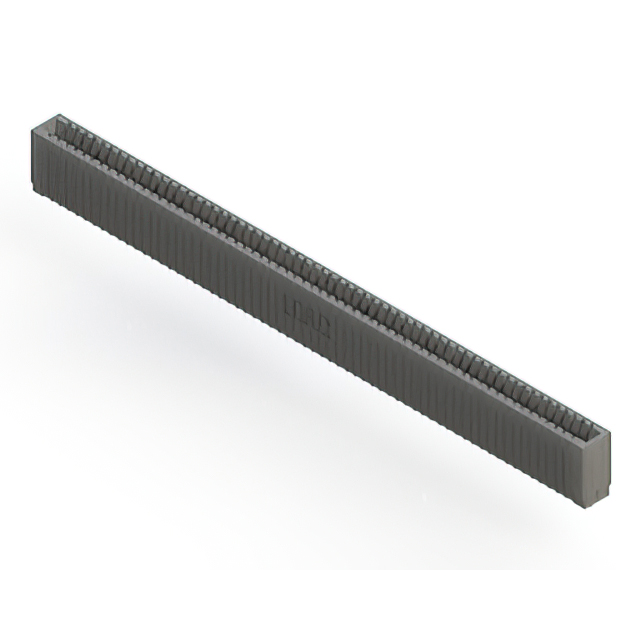

EDAC Inc. 745-063-520-101	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single
EDAC Inc. 745-063-525-106	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single
EDAC Inc. 745-063-545-101	1	Polyester Thermoplastic	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	Through Hole	Press-Fit	30 Áin	0.76 Ám	Gold	63	0.1 "	2.54 mm	1	63	Copper Alloy	Cantilever	Single
