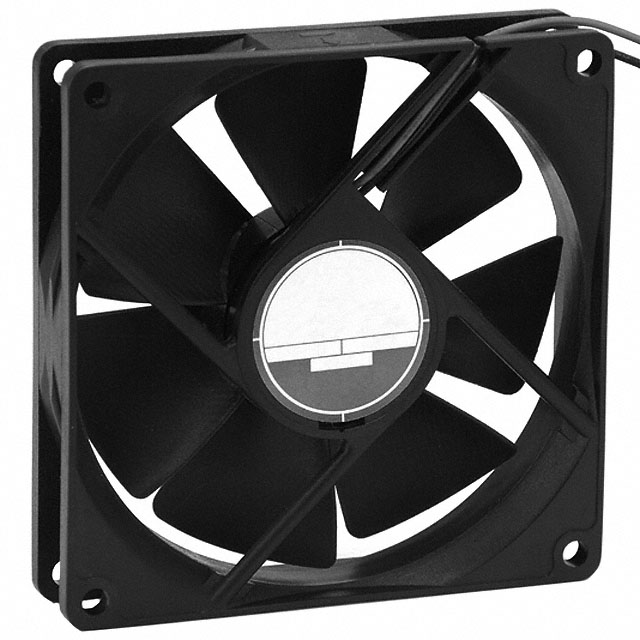

OD9220 Series
Manufacturer: ORION FANS
Beta
⌘K
DC AXIAL FAN, 24 V, SQUARE, 92 MM, 20 MM, BALL BEARING, 32 CFM
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Current Rating (Amps) | Material - Frame | Air Flow | Air Flow | Noise | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Width [y] | RPM | Static Pressure | Static Pressure | Fan Type | Voltage - Rated | Approval Agency | Termination | Size / Dimension [y] | Size / Dimension [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 28 V | 12 VDC | 65000 Hrs | 140 mA | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.896 m³/min | 32 CFM | 33 dB(A) | Ball | 70 °C | -10 °C | 20 mm | 2700 RPM | 31.1 Pa | 0.125 in H2O | Tubeaxial | 24 VDC | cURus TUV | 2 Wire Leads | 92 mm | 92 mm | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Sealed Sleeve | 20 mm | Tubeaxial | 24 VDC | cURus TUV | 3 Wire Leads | 92 mm | 92 mm | Locked Rotor Sensor | ||||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 28 V | 12 VDC | 65000 Hrs | 140 mA | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.896 m³/min | 32 CFM | 33 dB(A) | Ball | 70 °C | -10 °C | 20 mm | 2700 RPM | 31.1 Pa | 0.125 in H2O | Tubeaxial | 24 VDC | cURus TUV | 3 Wire Leads | 92 mm | 92 mm | Speed Sensor (Tach) |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 16 V | 8 V | 65000 Hrs | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.784 m³/min | 28 CFM | 31 dB(A) | Sleeve | 70 °C | -10 °C | 20 mm | 2400 RPM | 27.4 Pa | 0.11 in H2O | Tubeaxial | 12 VDC | cURus TUV | 2 Wire Leads | 92 mm | 92 mm | ||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Sealed Sleeve | 20 mm | Tubeaxial | 12 VDC | cURus TUV | 2 Wire Leads | 92 mm | 92 mm | |||||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 16 V | 8 V | 65000 Hrs | 0.25 A | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.896 m³/min | 32 CFM | 33 dB(A) | Sleeve | 70 °C | -10 °C | 20 mm | 2700 RPM | 32.4 Pa | 0.13 in H2O | Tubeaxial | 12 VDC | cURus TUV | 3 Wire Leads | 92 mm | 92 mm | Speed Sensor (Tach) |
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 28 V | 12 VDC | 65000 Hrs | 120 mA | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.784 m³/min | 28 CFM | 31 dB(A) | Sleeve | 70 °C | -10 °C | 20 mm | 2400 RPM | 27.4 Pa | 0.11 in H2O | Tubeaxial | 24 VDC | cURus TUV | 3 Wire Leads | 92 mm | 92 mm | Locked Rotor Sensor |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Sealed Sleeve | 20 mm | Tubeaxial | 12 VDC | cURus TUV | 3 Wire Leads | 92 mm | 92 mm | Locked Rotor Sensor | ||||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 16 V | 8 V | 65000 Hrs | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.784 m³/min | 28 CFM | 31 dB(A) | Sleeve | 70 °C | -10 °C | 20 mm | 2400 RPM | 27.4 Pa | 0.11 in H2O | Tubeaxial | 12 VDC | cURus TUV | 3 Wire Leads | 92 mm | 92 mm | Locked Rotor Sensor | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 28 V | 12 VDC | 65000 Hrs | 140 mA | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.896 m³/min | 32 CFM | 33 dB(A) | Sleeve | 70 °C | -10 °C | 20 mm | 2700 RPM | 31.1 Pa | 0.125 in H2O | Tubeaxial | 24 VDC | cURus TUV | 2 Wire Leads | 92 mm | 92 mm |
