RD2458 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RF ANT 2.4GHZ/5.3GHZ WHIP TILT

Part	RF Family/Standard	VSWR	Applications	Number of Bands	Frequency (Center/Band)	Gain	Frequency Range [Max]	Frequency Range [Min]	Frequency Group	Power - Max [Max]	Height (Max) [z]	Height (Max) [Max] [z]	Mounting Type	Antenna Type	Termination	Ingress Protection	Height (Max)
TE Connectivity AMP Connectors RD2458-5-RTNC	WiFi	1.5	Wi-Fi WiMax™	3	2.4 GHz 5.3 GHz 5.8 GHz	3 dBi 5 dBi	2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	SHF UHF	10 W	155 mm	6.102 in	Connector Mount	Tilt Whip
TE Connectivity AMP Connectors RD2458-RA-TNC	WiFi	1.5	WiMax™ WLAN	3	2.4 GHz 5.3 GHz 5.8 GHz	3 dBi 5 dBi	2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	SHF UHF	10 W	155 mm	6.102 in	Connector Mount	Tilt Whip	TNC Male
TE Connectivity AMP Connectors RD2458-5-RTNC	WiFi	1.5	Wi-Fi WiMax™	3	2.4 GHz 5.3 GHz 5.8 GHz	3 dBi 5 dBi	2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	SHF UHF	10 W	155 mm	6.102 in	Connector Mount	Tilt Whip

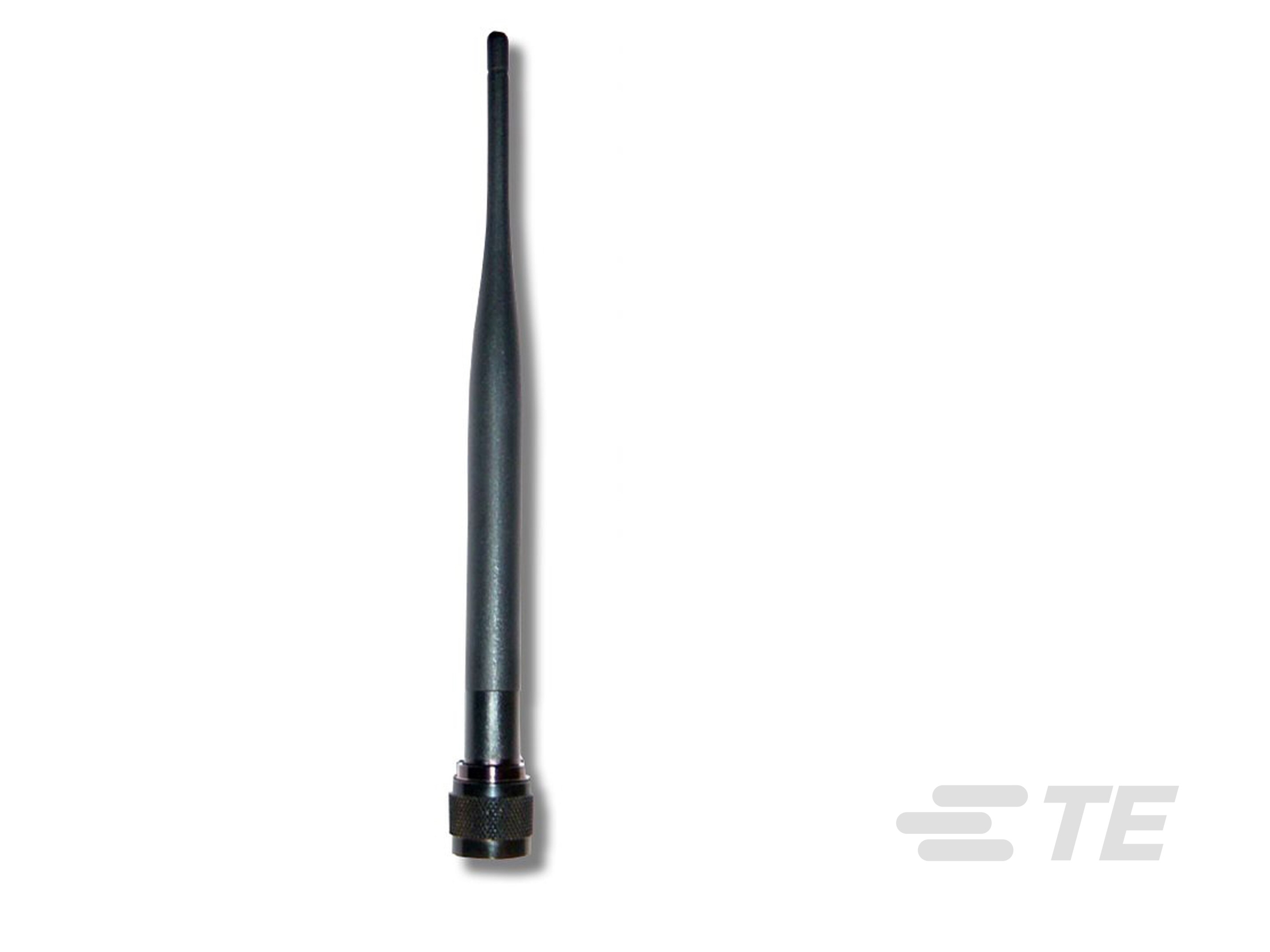

TE Connectivity AMP Connectors RD2458-5-OTDR-NM	WiFi	2	Wi-Fi WiMax™	3	2.4 GHz 5.3 GHz 5.8 GHz		2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	SHF UHF	10 W		7.598 in	Connector Mount	Whip Straight	N Type Male	IP67	193 mm
TE Connectivity AMP Connectors RD2458-5-NM	WiFi	1.5	Wi-Fi WiMax™	3	2.4 GHz 5.3 GHz 5.8 GHz	2.2 dBi 4 dBi 5 dBi	2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	Wide Band	10 W		7.598 in	Connector Mount	Tilt Whip	N Type Male		193 mm
TE Connectivity AMP Connectors RD2458-RA-TNC	WiFi	1.5	WiMax™ WLAN	3	2.4 GHz 5.3 GHz 5.8 GHz	3 dBi 5 dBi	2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	SHF UHF	10 W	155 mm	6.102 in	Connector Mount	Tilt Whip	TNC Male
TE Connectivity AMP Connectors RD2458-5-OTDR-NM	WiFi	2	Wi-Fi WiMax™	3	2.4 GHz 5.3 GHz 5.8 GHz		2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	SHF UHF	10 W		7.598 in	Connector Mount	Whip Straight	N Type Male	IP67	193 mm
TE Connectivity AMP Connectors RD2458-5-SMA	WiFi	1.5	Wi-Fi WiMax™	3	2.4 GHz 5.3 GHz 5.8 GHz	3 dBi 5 dBi	2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	SHF UHF	10 W	155 mm	6.102 in	Connector Mount	Tilt Whip
TE Connectivity AMP Connectors RD2458-5-NM	WiFi	1.5	Wi-Fi WiMax™	3	2.4 GHz 5.3 GHz 5.8 GHz	2.2 dBi 4 dBi 5 dBi	2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	Wide Band	10 W		7.598 in	Connector Mount	Tilt Whip	N Type Male		193 mm
TE Connectivity AMP Connectors RD2458-5-RA-RPTNC	WiFi	1.5	Wi-Fi WiMax™	3	2.4 GHz 5.3 GHz 5.8 GHz	3 dBi 5 dBi	2.5 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	SHF UHF	10 W	155 mm	6.102 in	Connector Mount	Tilt Whip
