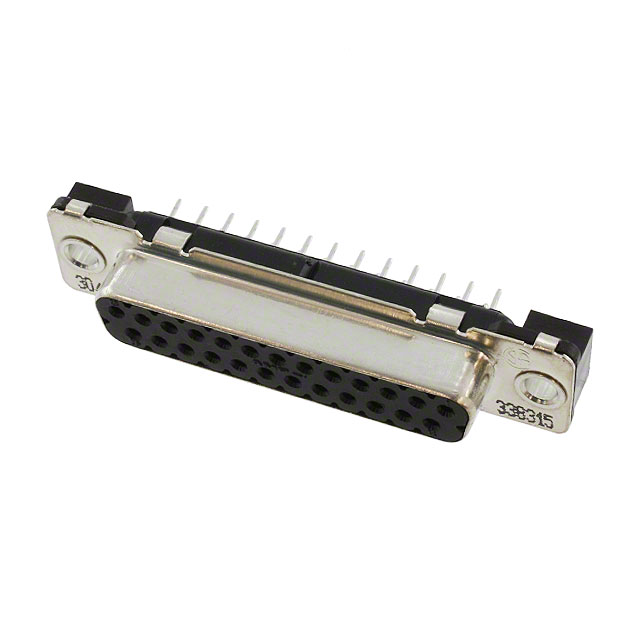

338315 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

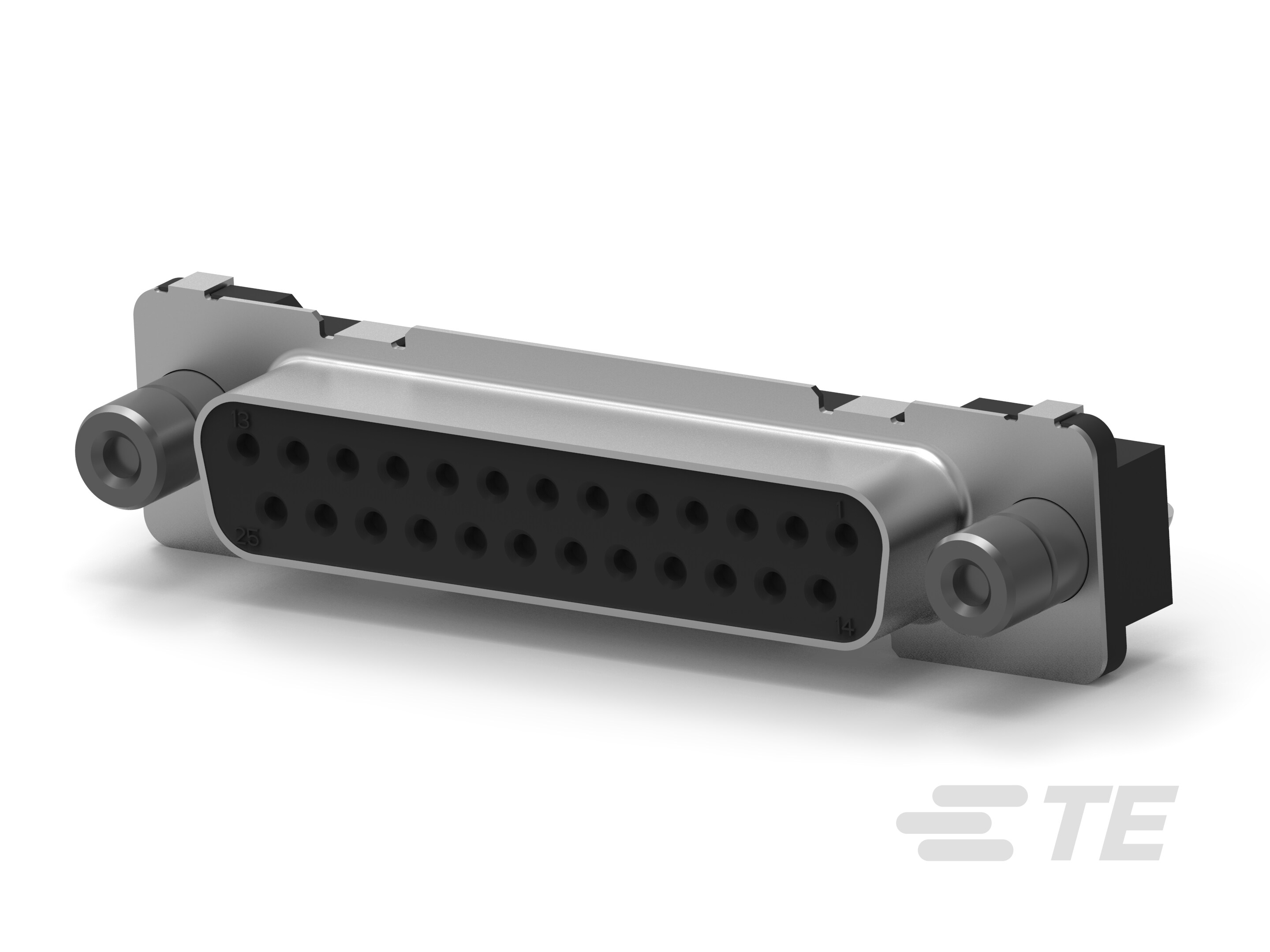

25POS.HD20 REC.ASSY
| Part | Material Flammability Rating | Number of Rows | Color | Contact Finish | Connector Style | Termination | Current Rating (Amps) | Connector Type | Dielectric Material | Mounting Type | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | UL94 V-0 | 2 | Black | Gold | D-Sub | Solder | 6 A | Receptacle Female Sockets | Polyester Glass Filled | Through Hole | Phosphor Bronze | B DB | 3 | Signal | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side |
 TE Connectivity Raychem Cable Protection | UL94 V-0 | 2 | Black | Gold | D-Sub | Solder | 6 A | Receptacle Female Sockets | Polyester Glass Filled | Through Hole | Phosphor Bronze | B DB | 3 | Signal | 105 ░C | -55 °C | Housing/Shell (Unthreaded) |
