SEK Series

Manufacturer: HARTING

Catalog

HEADER CONNECTOR,PCB MOUNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LATCH & EJECT

Part	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Mounting Type	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Style	Insulation Height [z]	Insulation Height [z]	Contact Material	Connector Type	Contact Finish - Post	Contact Shape	Contact Type	Contact Length - Post	Contact Length - Post	Fastening Type	Insulation Material	Termination	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Features	Insulation Height
HARTING 09185267902	0.1 "	2.54 mm	2	Through Hole	26	0.24 in	6.1 mm	Board to Cable/Wire	0.681 in	17.3 mm	Copper Alloy	Header	Tin	Square	Male Pin	4.5 mm	0.177 in	Latch Lock/Eject Hooks Long	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Shrouded - 4 Wall	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	0.713 in	18.1 mm	Gray	All	Gold
HARTING 09185205901	0.1 "	2.54 mm	2	Right Angle Through Hole	20	0.24 in	6.1 mm	Board to Cable/Wire			Copper Alloy	Header	Tin	Square	Male Pin	4.5 mm	0.177 in	Latch Lock/Eject Hooks Long	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Shrouded - 4 Wall	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm			Gray	All	Gold	0.76 Ám	30 Áin	0.335 "	8.51 mm
HARTING 09185245924	0.1 "	2.54 mm	2	Through Hole	24	0.24 in	6.1 mm	Board to Cable/Wire	0.681 in	17.3 mm	Copper Alloy	Header	Tin	Square	Male Pin			Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Shrouded - 4 Wall	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	0.65 in	16.51 mm	Gray	All	Gold	0.76 Ám	30 Áin			0.114 in	2.9 mm
HARTING 09185267914800	0.1 "	2.54 mm	2	Through Hole	26			Board to Cable/Wire	0.681 in	17.3 mm	Copper Alloy	Header		Square	Male Pin			Latch Lock/Eject Hooks	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Shrouded - 4 Wall	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm			Gray	All								0.228 in	5.8 mm
HARTING 09185267912	0.1 "	2.54 mm	2	Through Hole	26			Board to Cable/Wire	0.681 in	17.3 mm	Copper Alloy	Header	Tin	Square	Male Pin	4.5 mm	0.177 in	Latch Lock/Eject Hooks	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Shrouded - 4 Wall	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	0.713 in	18.1 mm	Gray	All	Gold							0.228 in	5.8 mm
HARTING 09185266922	0.1 "	2.54 mm	2	Through Hole	26	0.24 in	6.1 mm	Board to Cable/Wire	0.681 in	17.3 mm	Copper Alloy	Header	Tin	Square	Male Pin	4.5 mm	0.177 in	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Shrouded - 4 Wall	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	0.713 in	18.1 mm	Gray	All	Gold

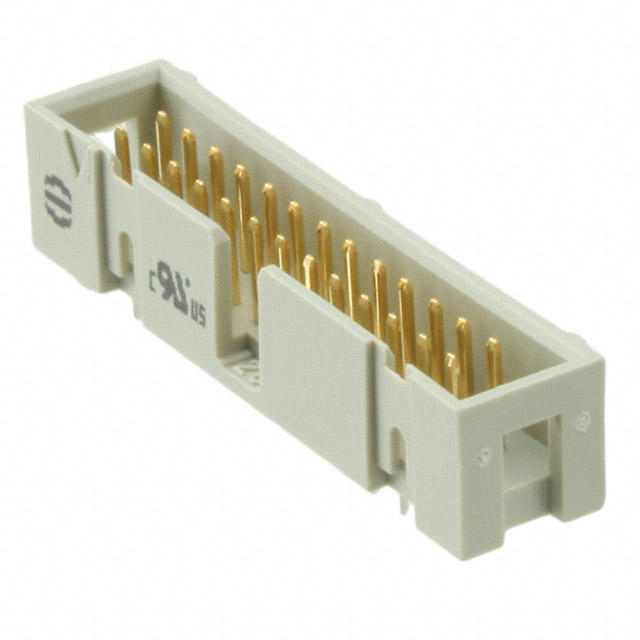

HARTING 09185266324	0.1 "	2.54 mm	2	Through Hole	26	0.24 in	6.1 mm	Board to Cable/Wire			Copper Alloy	Header	Tin	Square	Male Pin			Latch Holder	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Shrouded - 4 Wall	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm			Gray	All	Gold				0.35 in	0.114 in	2.9 mm			Keying Slot	8.89 mm
HARTING 09185205911	0.1 "	2.54 mm	2	Right Angle Through Hole	20	0.24 in	6.1 mm	Board to Cable/Wire			Copper Alloy	Header	Tin	Square	Male Pin	4.5 mm	0.177 in	Latch Lock/Eject Hooks	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Shrouded - 4 Wall	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm			Gray	All	Gold	0.76 Ám	30 Áin	0.335 "	8.51 mm
HARTING 09185265922	0.1 "	2.54 mm	2	Through Hole	26	0.24 in	6.1 mm	Board to Cable/Wire	0.681 in	17.3 mm	Copper Alloy	Header	Tin	Square	Male Pin	4.5 mm	0.177 in	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Shrouded - 4 Wall	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	0.713 in	18.1 mm	Gray	All	Gold	0.76 Ám	30 Áin
HARTING 09185206329	0.1 "	2.54 mm	2	Through Hole	20	0.24 in	6.1 mm	Board to Cable/Wire			Copper Alloy	Header	Tin	Square	Male Pin	5.51 mm	0.217 in	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Press-Fit Solder	Shrouded - 4 Wall			UL94 V-0	0.1 in	2.54 mm			Gray	All	Gold				0.35 in					Keying Slot	8.89 mm
