MC33153 Series

Single IGBT Driver

Catalog

Single IGBT Driver

Part	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Driven Configuration	Logic Voltage - VIL, VIH	Input Type	Gate Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Drivers	Package / Case	Package / Case	Package / Case	Mounting Type	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case [y]	Package / Case [x]

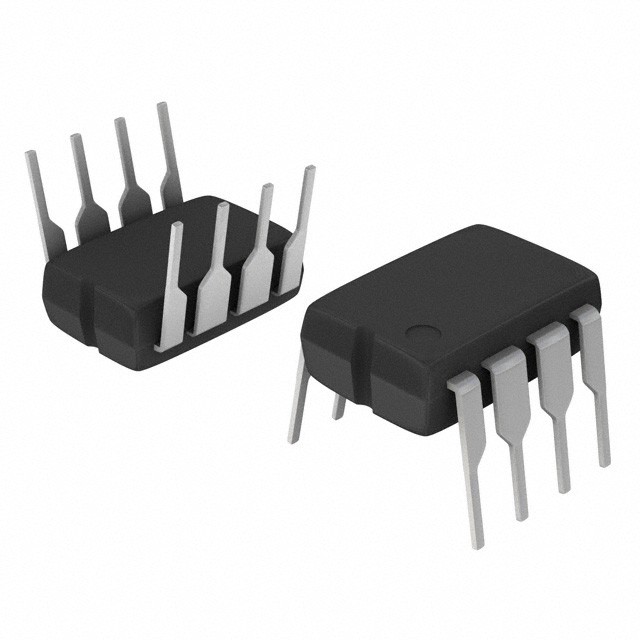

ON Semiconductor MC33153PG	2 A	1 A	Low-Side	1.2 V 3.2 V	Inverting	IGBT N-Channel MOSFET	150 °C	-40 °C	8-PDIP	20 V	11 V	1	0.3 in	8-DIP	7.62 mm	Through Hole	Single	17 ns	17 ns
ON Semiconductor MC33153DG	2 A	1 A	Low-Side	1.2 V 3.2 V	Inverting	IGBT N-Channel MOSFET	150 °C	-40 °C	8-SOIC	20 V	11 V	1		8-SOIC		Surface Mount	Single	17 ns	17 ns	3.9 mm	0.154 in
ON Semiconductor MC33153P	2 A	1 A	Low-Side	1.2 V 3.2 V	Inverting	IGBT N-Channel MOSFET	150 °C	-40 °C	8-PDIP	20 V	11 V	1	0.3 in	8-DIP	7.62 mm	Through Hole	Single	17 ns	17 ns

Catalog

Single IGBT Driver

Key Features

• High Current Output Stage: 1.0 A Source/2.0 A Sink

• Protection Circuits for Both Conventional and Sense IGBTs

• Programmable Fault Blanking Time

• Protection against Overcurrent and Short Circuit

• Undervoltage Lockout Optimized for IGBT's

• Negative Gate Drive Capability

• Cost Effectively Drives Power MOSFETs and Bipolar Transistors

• Pb-Free Packages are Available

Description

The MC33153 is specifically designed as an IGBT driver for high power applications that include ac induction motor control, brushless dc motor control and uninterruptable power supplies. Although designed for driving discrete and module IGBTs, this device offers a cost effective solution for driving power MOSFETs and Bipolar Transistors. Device protection features include the choice of desaturation or overcurrent sensing and undervoltage detection. These devices are available in dual-in-line and surface mount packages and include the following features:
