0ZRS Series

Catalog

RESETTABLE FUSES - PPTC RESET FUSE 700MA AEC-Q200 T&R

Part	Mounting Type	Resistance - Initial (Ri) (Min) [Min]	Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Grade	Current - Trip (It)	Package / Case	Time to Trip	Resistance - Post Trip (R1) (Max) [Max]	Voltage - Max [Max]	Current - Hold (Ih) (Max)	Qualification	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Hold (Ih) (Max) [Max]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [custom]	Size / Dimension [custom]	Height - Seated (Max)	Resistance - Post Trip (R1) (Max)

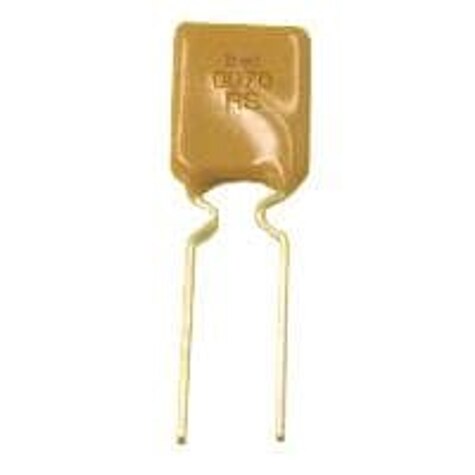

Bel Fuse Inc. 0ZRS0070FF2D	Through Hole	230 mOhms	100 A	125 °C	-40 C	Ceramic	0.425 in	10.8 mm	Automotive	1.4 A	Disc Radial	3.2 s	800 mOhms	32 V	700 mA	AEC-Q200	0.201 in	5.1 mm	0.118 in	3 mm	6.9 mm	0.272 in
Bel Fuse Inc. 0ZRS0050FF1E	Through Hole	350 mOhms	100 A	125 °C	-40 C	Ceramic	0.5 in	12.7 mm	Automotive	1 A	Disc Radial	3 s	1.1 Ohms	32 V		AEC-Q200	0.201 in	5.1 mm					500 mA	3 mm	7.4 mm	0.291 "	0.118 in
Bel Fuse Inc. 0ZRS0500FF1A	Through Hole	15 mOhms	100 A	125 °C	-40 C	Ceramic	0.949 in	24.1 mm	Automotive	10 A	Disc Radial		0.04 Ohms	32 V		AEC-Q200	0.201 in	5.1 mm	0.15 "	3.8 mm	14 mm	0.551 in	5 A
Bel Fuse Inc. 0ZRS0050FF2D	Through Hole	350 mOhms	100 A	125 °C	-40 C	Ceramic	0.5 in	12.7 mm	Automotive	1 A	Disc Radial	3 s	1.1 Ohms	32 V		AEC-Q200	0.201 in	5.1 mm					500 mA	3 mm	7.4 mm	0.291 "	0.118 in
Bel Fuse Inc. 0ZRS0300FF1A	Through Hole	35 mOhms	100 A	125 °C	-40 C	Ceramic			Automotive	6 A	Disc Radial	5 s	110 mOhms	32 V		AEC-Q200	0.201 in	5.1 mm	0.15 "		10.2 mm	0.402 in	3 A					3.8 mm	0.61 in	15.5 mm
Bel Fuse Inc. 0ZRS0100FF1E	Through Hole	150 mOhms	100 A	125 °C	-40 C	Ceramic			Automotive	1.9 A	Disc Radial	6.2 s	430 mOhms	32 V		AEC-Q200	0.201 in	5.1 mm					1 A		9.7 mm	0.382 in					3 mm	0.118 in
Bel Fuse Inc. 0ZRS1000FF1A	Through Hole	6 mOhms	100 A	125 °C	-40 C	Ceramic	1.098 in		Automotive	20 A	Disc Radial	15 s		32 V	10 A	AEC-Q200			0.157 "		23.5 mm	0.925 "						4 mm					27.9 mm	16 mOhms
Bel Fuse Inc. 0ZRS0200FF1E	Through Hole	65 mOhms	100 A	125 °C	-40 C	Ceramic	0.531 in	13.5 mm	Automotive		Disc Radial	5.5 s	250 mOhms	32 V		AEC-Q200	0.201 in	5.1 mm	0.118 in		9.5 mm	0.374 in	2 A					3 mm
Bel Fuse Inc. 0ZRS0300FF2B	Through Hole	35 mOhms	100 A	125 °C	-40 C	Ceramic			Automotive	6 A	Disc Radial	5 s	110 mOhms	32 V		AEC-Q200	0.201 in	5.1 mm	0.15 "		10.2 mm	0.402 in	3 A					3.8 mm	0.61 in	15.5 mm
Bel Fuse Inc. 0ZRS0750FF1A	Through Hole	7.4 mOhms	100 A	125 °C	-40 C	Polymeric	0.98 in	24.9 mm	Automotive	15 A	Disc Radial	13 s	23 mOhms	32 V		AEC-Q200			0.15 "		21.1 mm	0.831 in	7.5 A					3.8 mm
