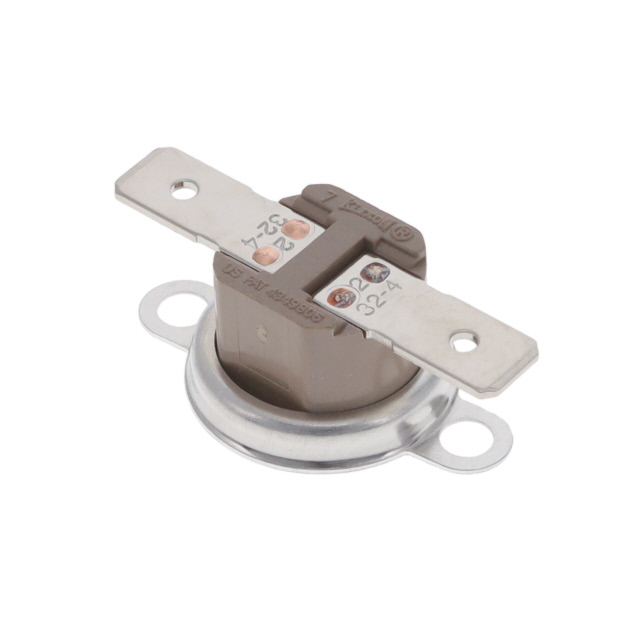

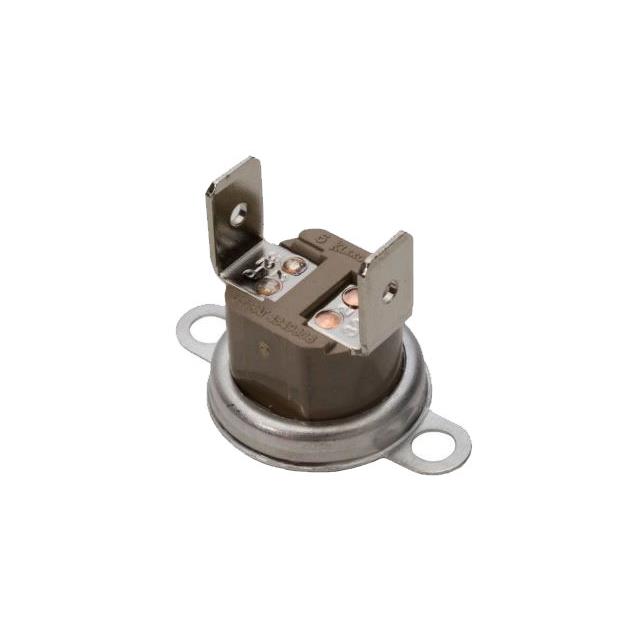

1NT01L Series
Manufacturer: Sensata-Crydom
Beta
⌘K
THERMOSTAT 45DEG C SPST-NC CYL
| Part | Mounting Type | Switching Temperature | Switching Temperature | Current Rating - AC | Switching Cycles | Termination Style | Reset Temperature | Reset Temperature | Circuit | Tolerance | Tolerance | Package / Case | Tolerance | Reset Temperature [custom] | Reset Temperature [custom] | Reset Temperature [custom] | Reset Temperature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | Chassis Mount | 45 °C | 45 °C | 5 A 17 A | 100K | Quick Connect | 77 °F | 25 °C | SPST-NC | 3 °C | 5.5 °F | Cylinder with Mounting Flange | |||||
Sensata-Crydom | Chassis Mount | 150 °C | 302 °F | 5 A 17 A | 100K | Quick Connect | 262.4 °F | 128 °C | SPST-NC | 5 °C | Cylinder with Mounting Flange | 9 °F | |||||
Sensata-Crydom | Chassis Mount | 80 °C | 176 °F | 5 A 17 A | 100K | Quick Connect | 156.2 °F | SPST-NC | 3 °C | 5.4 °F | Cylinder with Mounting Flange | ||||||
Sensata-Crydom | Chassis Mount | 140 °C | 140 °C | 5 A 17 A | 100K | Quick Connect | 258.8 °F | 126 °C | SPST-NC | 4 °C | 7.2 °F | Cylinder with Mounting Flange | |||||
Sensata-Crydom | Chassis Mount | 85 °C | 85 °C | 5 A 17 A | 100K | Quick Connect | 149 °F | 65 °C | SPST-NC | 3 °C | 5.5 °F | Cylinder with Mounting Flange | |||||
Sensata-Crydom | Chassis Mount | 85 °C | 85 °C | 5 A 17 A | 100K | Quick Connect | 165.2 °F | SPST-NC | 3 °C | 5.4 °F | Cylinder with Mounting Flange | ||||||
Sensata-Crydom | Chassis Mount | 105 °C | 221 °F | 5 A 17 A | 100K | Quick Connect | 23 °F | -5 °C | SPST-NC | 3.5 °C | 6.5 °F | Cylinder with Mounting Flange | |||||
 Sensata-Crydom | Chassis Mount | 180 °C | 356 °F | 5 A 17 A | 100K | Quick Connect | SPST-NC | 5 °C | Cylinder with Mounting Flange | 9 °F | 316.4 °F | 158 °C | |||||
Sensata-Crydom | Chassis Mount | 60 °C | 60 °C | 5 A 17 A | 100K | Quick Connect | SPST-NC | 3 °C | 5.5 °F | Cylinder with Mounting Flange | 104 °F | 40 °C | |||||
Sensata-Crydom | Chassis Mount | 80 °C | 176 °F | 5 A 17 A | 100K | Quick Connect | 140 °F | 60 °C | SPST-NC | 3 °C | 5.5 °F | Cylinder with Mounting Flange |
