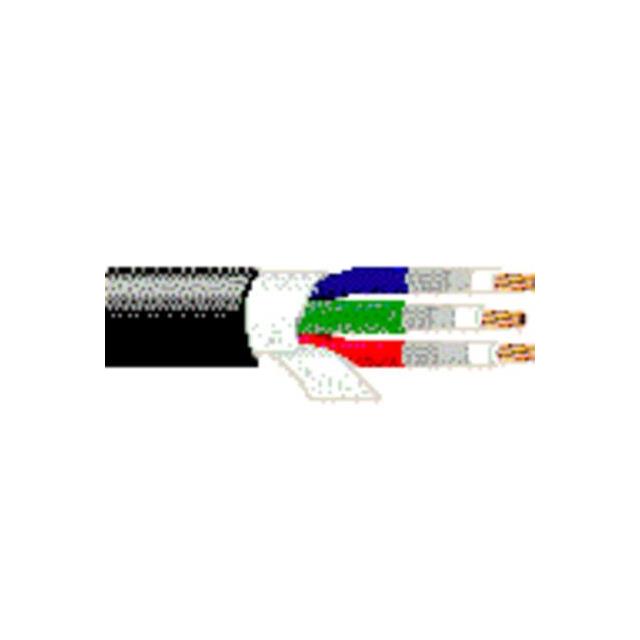

1406B Series
Manufacturer: Belden Inc.
Beta
⌘K
3 #26 FPE SH PVC PVC
| Part | Conductor Material | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | VoP, Velocity of Propagation | Jacket Color | Cable Group | Usage | Impedance | Shield Type | Length [x] | Length [x] | Cable Type | Jacket (Insulation) Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | Aluminum Polyester Copper Tinned | 60 °C | -40 C | 2.25 mm | 0.089 in | 95 % 100 % | 78 | Black | RG-59 Mini | Video | 75 Ohms | Braid Foil | 304.8 m | 1000 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 26 AWG | 9.86 mm | 0.388 " | 7 | 34 AWG |
