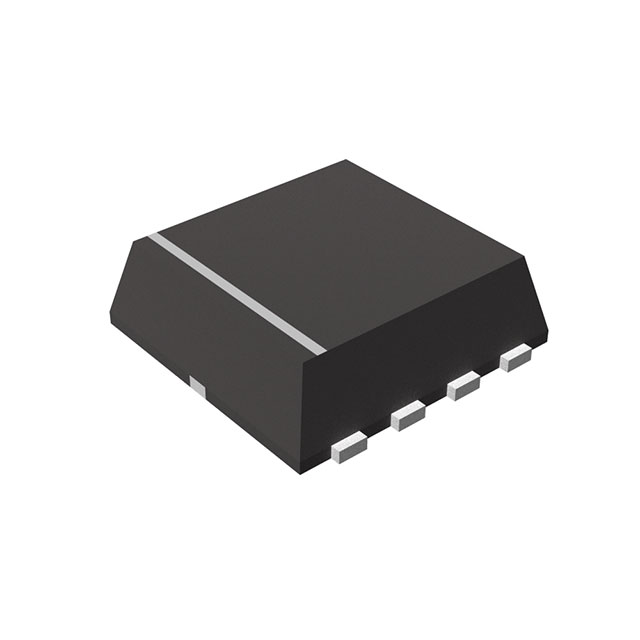

R1212D Series
Manufacturer: Nisshinbo Micro Devices Inc.
Beta
⌘K
SWITCHING CONTROLLERS PWM STEP-UP DCDC CONTROLLER
| Part | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Duty Cycle (Max) [Max] | Mounting Type | Control Features | Clock Sync | Number of Outputs | Output Type | Synchronous Rectifier | Function | Output Configuration | Frequency - Switching | Operating Temperature [Max] | Operating Temperature [Min] | Output Phases | Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nisshinbo Micro Devices Inc. | 2.2 V | 5.5 V | 8-SON | 2.8 | 2.9 | 90 % | Surface Mount | Enable | 1 | PWM | Step-Up | Positive | 700 kHz | 85 °C | -40 C | 1 | Boost |
