18982-5S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

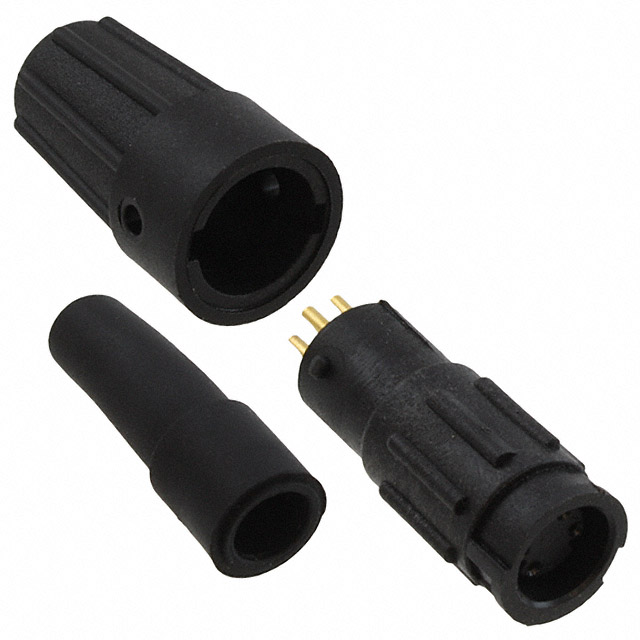

CIRCULAR CONNECTOR, MICRO-CON-X SERIES, CABLE MOUNT PLUG, 5 CONTACTS, SOLDER SOCKET, BAYONET
| Part | Primary Material | Color | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Fastening Type | Backshell Material, Plating | Contact Material | Contact Finish - Mating | Number of Positions | Voltage Rating | Connector Type | Material Flammability Rating | Current Rating (Amps) | Applications | Mounting Type | Ingress Protection | Orientation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Plastic | Black | 5.59 mm | 5.84 mm | 0.23 in | 0.22 in | 85 °C | -40 C | Unshielded | Bayonet Lock | Thermoplastic | Copper Alloy | Gold | 5 | 600 VAC | Receptacle Female Sockets | UL94 HB | 4 A | Data Industrial Instrumentation Medical | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | B | Backshell |
