424-041 Series
Manufacturer: EDAC Inc.
Beta
⌘K

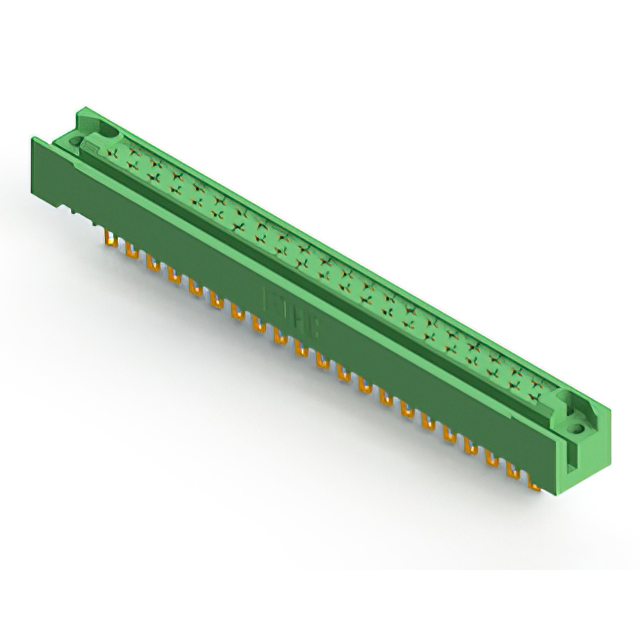

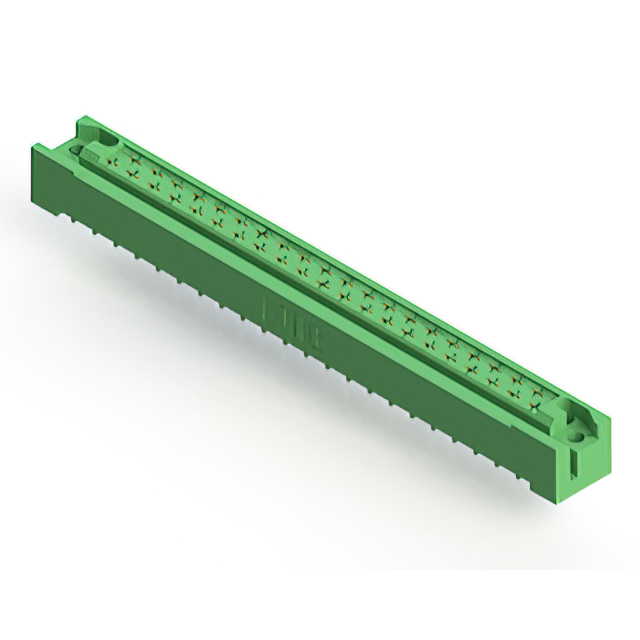

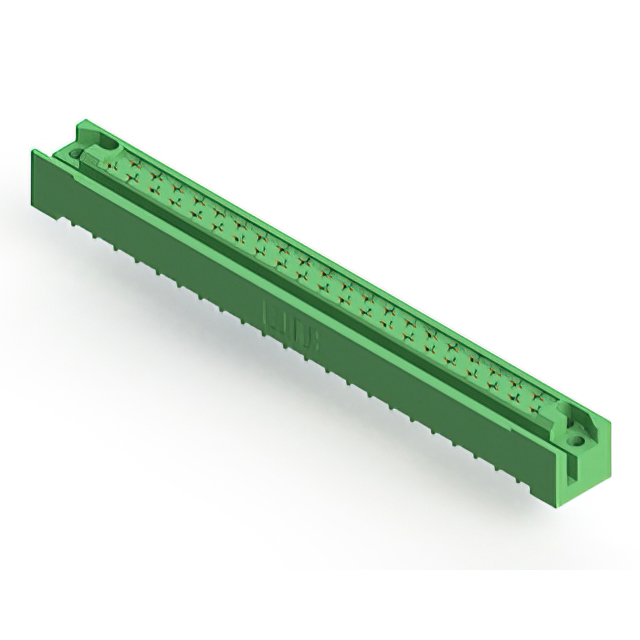

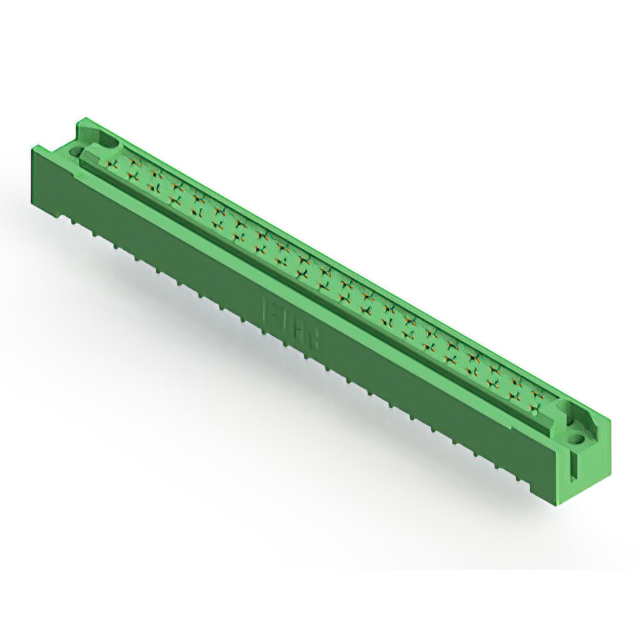

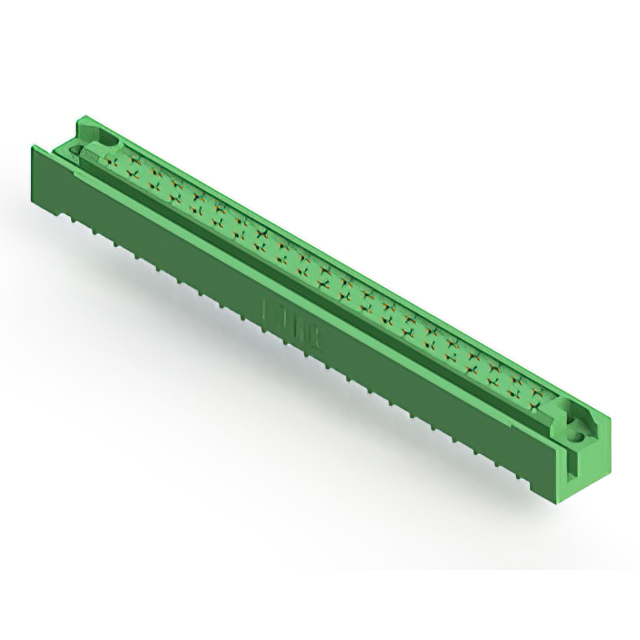

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS ROHS COMPLIANT: YES
| Part | Termination Rows [custom] | Material - Insulation | Card Type | Termination | Contact Finish | Contact Material | Card Thickness | Card Thickness | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Gender | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Color | Pitch | Pitch | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Solder | Gold | Copper Alloy | 1.57 mm | 0.062 in | 2 | -65 ░C | 125 °C | 41 | Female | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 5.08 mm | 0.2 in | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Solder | Gold | Copper Alloy | 2.36 mm | 0.093 " | 2 | -65 ░C | 125 °C | 41 | Female | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 5.08 mm | 0.2 in | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Wire Wrap | Gold | Copper Alloy | 2.36 mm | 0.093 " | 2 | -65 ░C | 125 °C | 41 | Female | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 5.08 mm | 0.2 in | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Solder | Gold | Copper Alloy | 2.36 mm | 0.093 " | 2 | -65 ░C | 125 °C | 41 | Female | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 5.08 mm | 0.2 in | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Solder | Gold | Copper Alloy | 1.57 mm | 0.062 in | 2 | -65 ░C | 125 °C | 41 | Female | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 5.08 mm | 0.2 in | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Solder Eyelet(s) | Gold | Copper Alloy | 2.36 mm | 0.093 " | 2 | -65 ░C | 125 °C | 41 | Female | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 5.08 mm | 0.2 in | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Solder | Gold | Copper Alloy | 2.36 mm | 0.093 " | 2 | -65 ░C | 125 °C | 41 | Female | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 5.08 mm | 0.2 in | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Solder | Gold | Copper Alloy | 1.57 mm | 0.062 in | 2 | -65 ░C | 125 °C | 41 | Female | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 5.08 mm | 0.2 in | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Solder | Gold | Copper Alloy | 2.36 mm | 0.093 " | 2 | -65 ░C | 125 °C | 41 | Female | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 5.08 mm | 0.2 in | Panel Mount Through Hole |
