SF7282 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

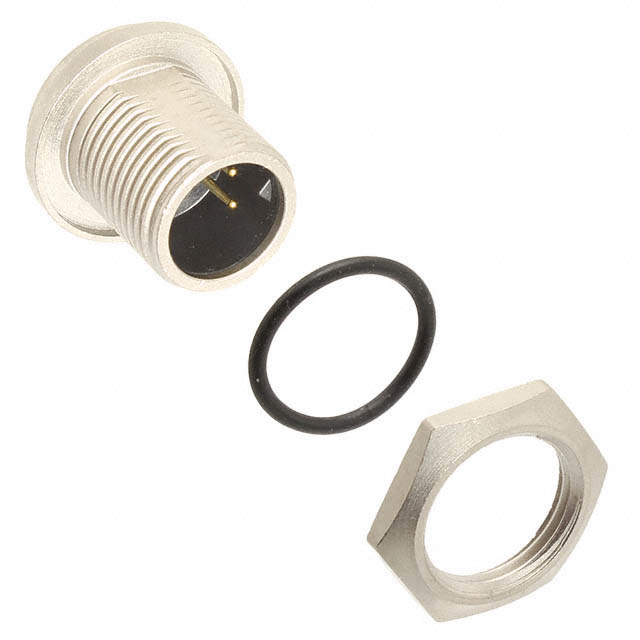

CONN RCPT MALE 3P GOLD SLDR CUP
| Part | Fastening Type | Connector Type | Mounting Feature | Ingress Protection | Primary Material | Shell Material | Contact Material | Insert Material | Shielding | Orientation | Shell Finish | Mounting Type | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Threaded | Receptacle Male Pins | Bulkhead - Front Side Nut | IP66 IP68 | Metal | Copper Alloy | Copper Alloy | Polyester Resin | Shielded | Keyed | Nickel | Panel Mount | Silver | 120 °C | -40 C | Gold | |
 SWITCHCRAFT/CONXALL | Threaded | Receptacle Male Pins | Bulkhead - Front Side Nut | IP66 IP68 | Metal | Copper Alloy | Copper Alloy | Polyester Resin | Shielded | Keyed | Nickel | Panel Mount | Silver | 120 °C | -40 C | Gold | 4 |

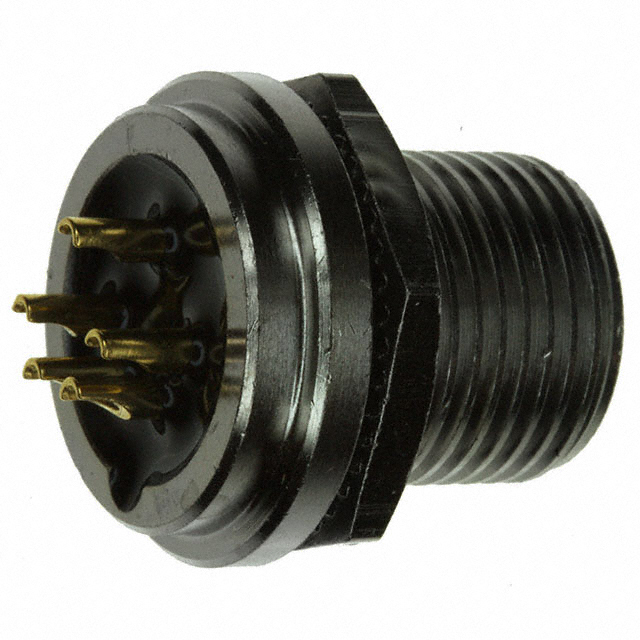

 SWITCHCRAFT/CONXALL | Threaded | Receptacle Female Sockets | Bulkhead - Front Side Nut | IP66 IP68 | Metal | Copper Alloy | Copper Alloy | Polyester Resin | Shielded | Keyed | Nickel | Panel Mount | Silver | 120 °C | -40 C | Gold | 5 |

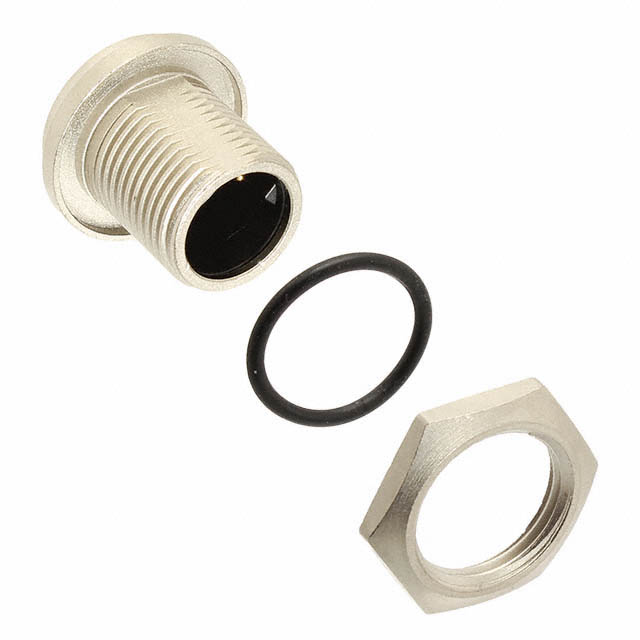

 SWITCHCRAFT/CONXALL | Threaded | Receptacle Male Pins | Bulkhead - Front Side Nut | IP66 IP68 | Metal | Copper Alloy | Copper Alloy | Polyester Resin | Shielded | Keyed | Nickel | Panel Mount | Silver | 120 °C | -40 C | Gold | 2 |

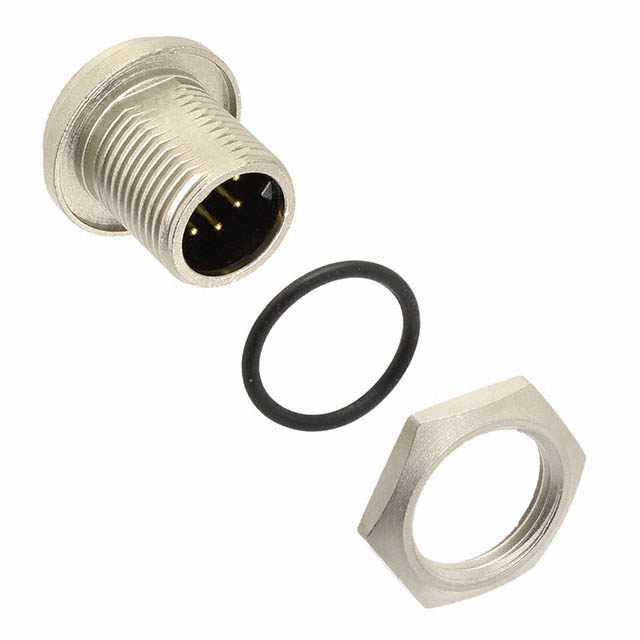

 SWITCHCRAFT/CONXALL | Threaded | Receptacle Male Pins | Bulkhead - Front Side Nut | IP66 IP68 | Metal | Copper Alloy | Copper Alloy | Polyester Resin | Shielded | Keyed | Nickel | Panel Mount | Silver | 120 °C | -40 C | Gold | 6 |

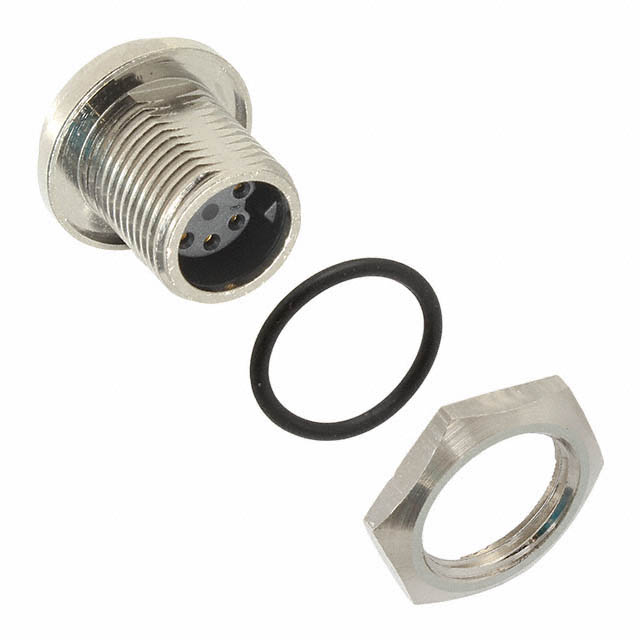

 SWITCHCRAFT/CONXALL | Threaded | Receptacle Female Sockets | Bulkhead - Front Side Nut | IP66 IP68 | Metal | Copper Alloy | Copper Alloy | Polyester Resin | Shielded | Keyed | Nickel | Panel Mount | Silver | 120 °C | -40 C | Gold | 7 |
 SWITCHCRAFT/CONXALL | Threaded | Receptacle Female Sockets | Bulkhead - Front Side Nut | IP66 IP68 | Metal | Copper Alloy | Copper Alloy | Polyester Resin | Shielded | Keyed | Nickel | Panel Mount | Silver | 120 °C | -40 C | Gold | |
 SWITCHCRAFT/CONXALL | Threaded | Receptacle Male Pins | Bulkhead - Front Side Nut | IP66 IP68 | Metal | Copper Alloy | Copper Alloy | Polyester Resin | Shielded | Keyed | Nickel | Panel Mount | Silver | 120 °C | -40 C | Gold | 5 |

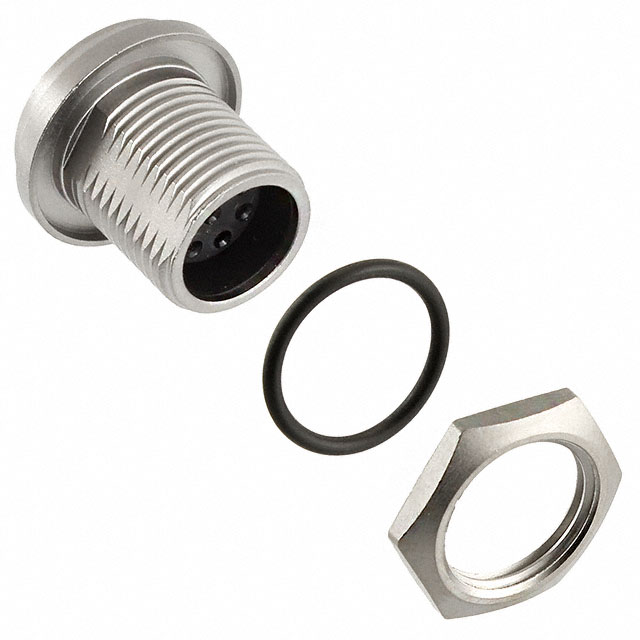

 SWITCHCRAFT/CONXALL | Threaded | Receptacle Female Sockets | Bulkhead - Front Side Nut | IP66 IP68 | Metal | Copper Alloy | Copper Alloy | Polyester Resin | Shielded | Keyed | Nickel | Panel Mount | Silver | 120 °C | -40 C | Gold | 8 |
