AAA3FA Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

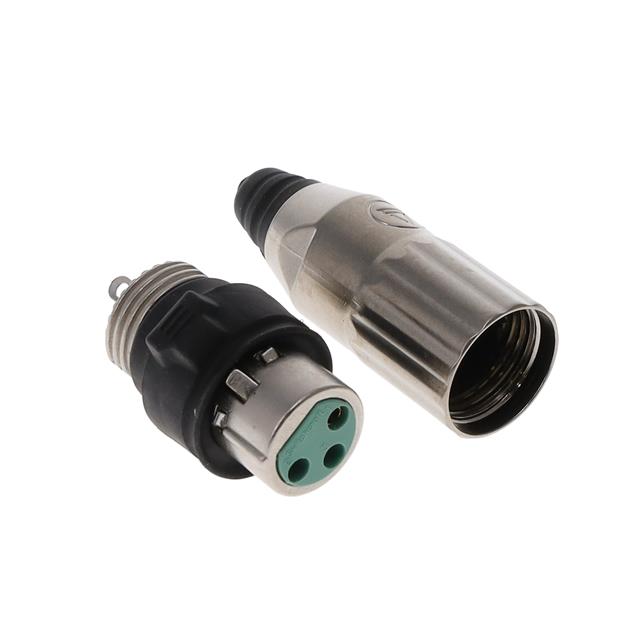

AAA SERIES, 3 CONTACTS, FEMALE, METAL HANDLE, NICKEL FINISH, GOLD CONTACT PLATING, 0.135"[3.4MM] CABLE STRAIN RELIEF SIZE, SEALE
| Part | Backshell Material, Plating | Applications | Contact Material | Insert Material | Shell Size - Insert | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Orientation | Shell Finish | Primary Material | Contact Finish - Mating | Fastening Type | Shielding | Shell Material | Mounting Type | Ingress Protection | Connector Type | Color | Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Nickel Zinc Alloy | Audio Instrumentation | Copper Alloy | Thermoplastic | XLR | 0.15 " | 7.24 mm | 0.285 in | 3.81 mm | Keyed | Nickel | Metal | Gold | Latch Lock | Shielded | Zinc Alloy | Free Hanging (In-Line) | IP66 - Dust Tight Water Resistant | Plug Female Sockets | Silver | Backshell Cable Clamp Ground Strain Relief | -40 C | 65 °C |
