OPB821 Series

Catalog

SENSOR OPT SLOT PHOTOTRANS MODUL

Part	Type	Output Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Mounting Type	Sensing Method

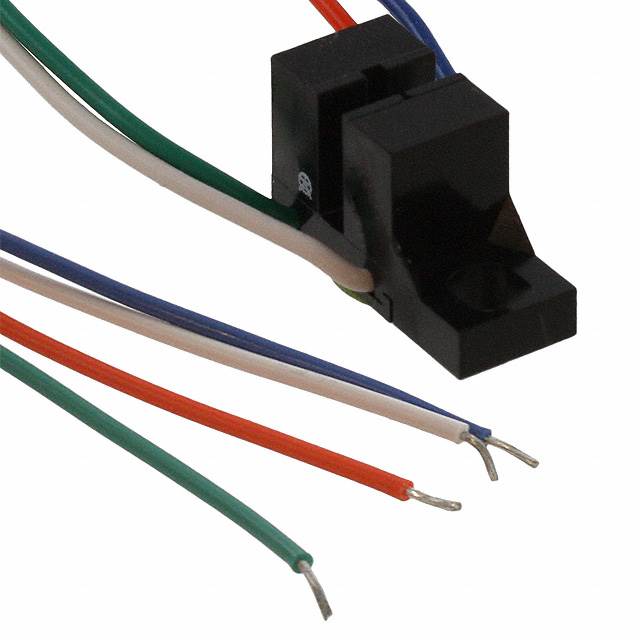

TT Electronics/BI OPB821S5Z	Unamplified	Phototransistor	30 V	Module Pre-Wired	50 mA	85 °C	-40 C	0.08 in	2.03 mm	Chassis Mount	Through-Beam

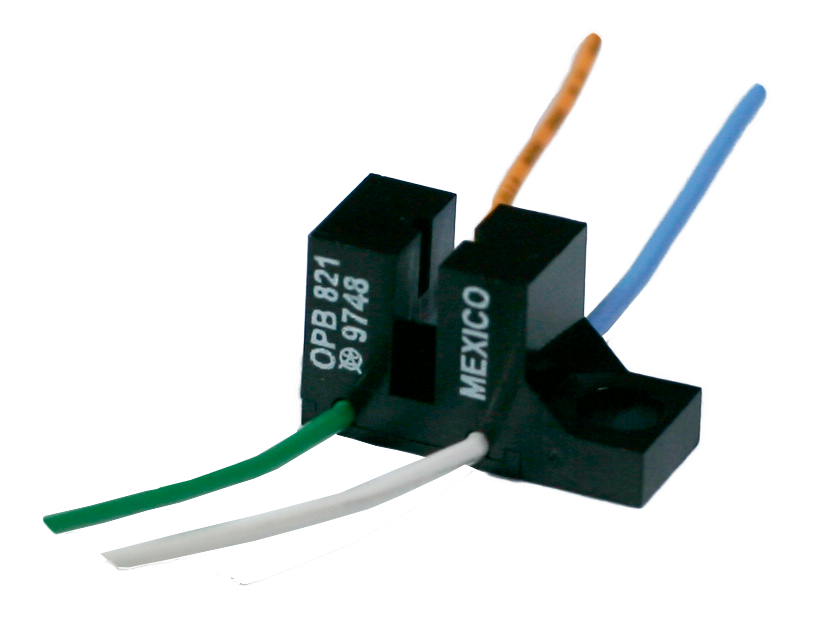

TT Electronics/BI OPB821S10Z	Unamplified	Phototransistor	30 V	Module Pre-Wired	50 mA	85 °C	-40 C	0.08 in	2.03 mm	Chassis Mount	Through-Beam
TT Electronics/BI OPB821TX	Unamplified	Phototransistor	30 V	Module Pre-Wired	50 mA	85 °C	-40 C	0.08 in	2.03 mm	Chassis Mount	Through-Beam
