0914-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

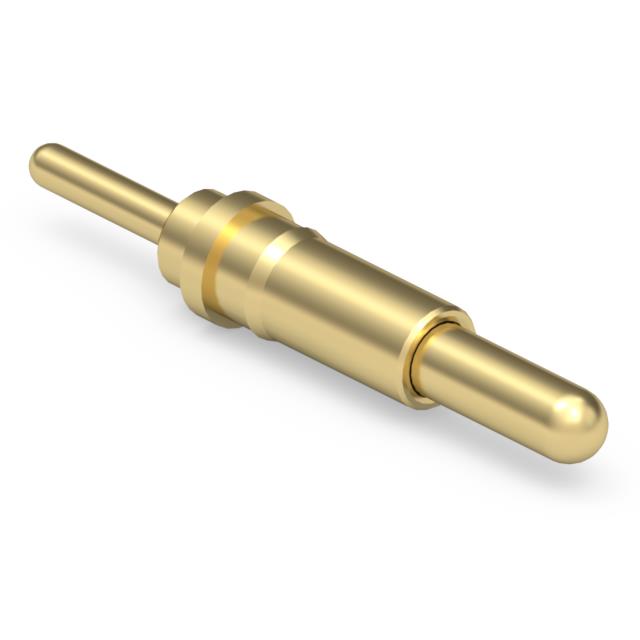

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Minimum Working Height | Minimum Working Height | Recommended Working Height | Recommended Working Height | Contact Material | Operating Force - Mid Compression | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Type | Pad Layout Dimension | Pad Layout Dimension | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.184 in | 4.67 mm | 0.229 in | 5.82 mm | Brass Alloy | 60 gf | 6.96 mm | 0.274 in | Sleeve & Plunger (Pogo Pins) | 0.072 in | 1.83 mm | Through Hole | 20 µin | 0.51 µm | 1000000 | 0.042 in | 1.07 mm | 5.2 A |
