S6J328 Series
Manufacturer: INFINEON
Beta
⌘K
IC MCU 32BIT 2.0625MB 208TEQFP
| Part | Core Size | Data Converters | Speed | Peripherals | Program Memory Size | Supplier Device Package | RAM Size | Core Processor | Number of I/O | Connectivity | Oscillator Type | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Program Memory Type | Mounting Type | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

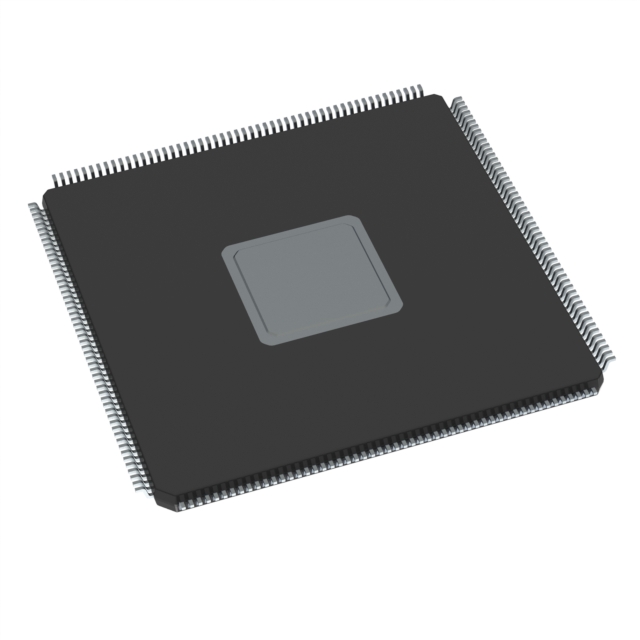

 INFINEON | 32-Bit 32-Bit Single-Core | A/D 46x12b | 240 MHz | DMA I2S LVD POR PWM WDT | 2.0625 MB | 208-TEQFP (28x28) | 256 K | ARM® Cortex®-R5F | 120 | CANbus CSIO Ethernet I2C LINbus SPI UART/USART | Internal | 4.5 V | 5.5 V | FLASH | Surface Mount | 208-LQFP Exposed Pad | -40 °C | 105 °C |

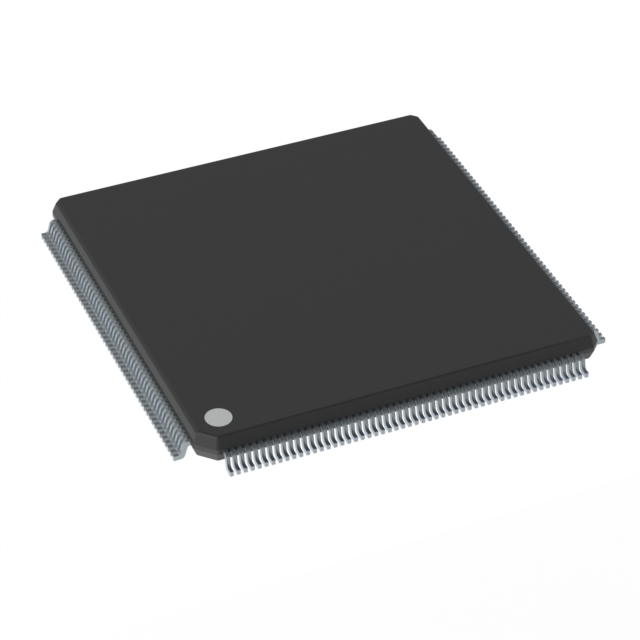

 INFINEON | 32-Bit 32-Bit Single-Core | A/D 50x12b | 240 MHz | DMA I2S LVD POR PWM WDT | 2.0625 MB | 216-TEQFP (24x24) | 256 K | ARM® Cortex®-R5F | 128 | CANbus CSIO Ethernet I2C LINbus SPI UART/USART | Internal | 4.5 V | 5.5 V | FLASH | Surface Mount | 216-LQFP Exposed Pad | -40 °C | 105 °C |
 INFINEON | 32-Bit 32-Bit Single-Core | A/D 50x12b | 240 MHz | DMA I2S LVD POR PWM WDT | 2.112 MB | 208-TQFP (28x28) | 512 K | ARM® Cortex®-R5F | 120 | CANbus CSIO Ethernet I2C LINbus SPI UART/USART | Internal | 1.15 V | 5.5 V | FLASH | Surface Mount | 208-LQFP Exposed Pad | -40 °C | 105 °C |
