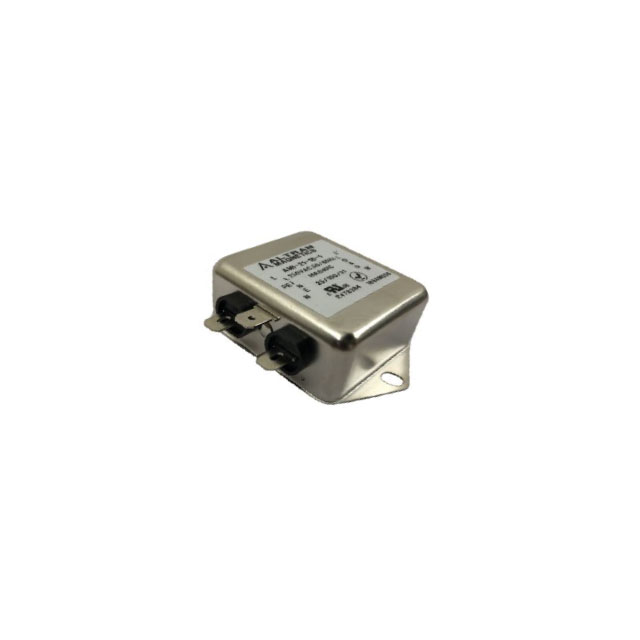

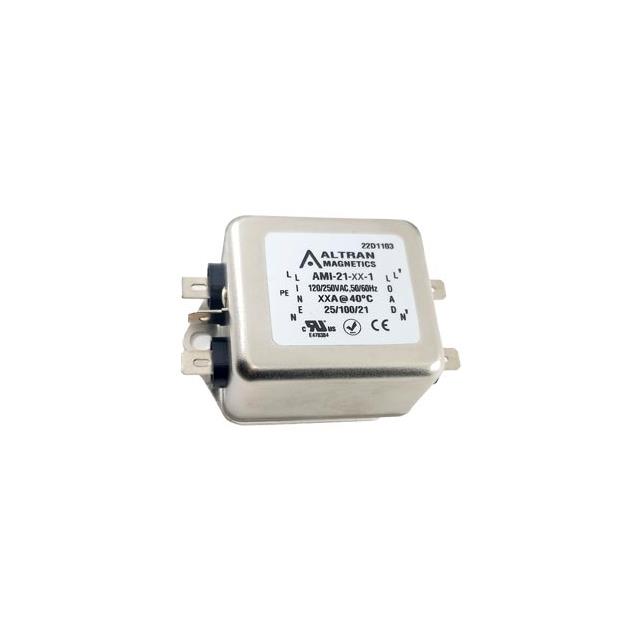

AMI-21 Series

Catalog

LINE FILTER 250VAC 10A CHASSIS

Part	Voltage - Rated AC	Frequency - Operating	Inductance	Applications	Mounting Type	Approval Agency	Filter Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Current
Altran Magnetics, LLC AMI-21B-10-1	250 V	DC ~ 400Hz	800 µH	Medical	Chassis Mount	CE cURus	Single Phase	Quick Connect	100 °C	-25 °C	Single Stage	10 A
Altran Magnetics, LLC AMI-21B-12-3	250 V	DC ~ 400Hz	700 µH	Medical	Chassis Mount	CE cURus	Single Phase	Quick Connect	100 °C	-25 °C	Single Stage	12 A
Altran Magnetics, LLC AMI-21-6-1	250 V	DC ~ 400Hz	1 mH	General Purpose	Chassis Mount	CE cURus	Single Phase	Quick Connect	100 °C	-25 °C	Single Stage	6 A
Altran Magnetics, LLC AMI-21-10-3	250 V	DC ~ 400Hz	800 µH	General Purpose	Chassis Mount	CE cURus	Single Phase	Quick Connect	100 °C	-25 °C	Single Stage	10 A
Altran Magnetics, LLC AMI-21B-20-1	250 V	DC ~ 400Hz	700 µH	Medical	Chassis Mount	CE cURus	Single Phase	Quick Connect	100 °C	-25 °C	Single Stage	20 A
Altran Magnetics, LLC AMI-21B-30-6	250 V	DC ~ 400Hz	700 µH	Medical	Chassis Mount	CE cURus	Single Phase	Threaded Post (M4)	100 °C	-25 °C	Single Stage	30 A
Altran Magnetics, LLC AMI-21-20-3	250 V	DC ~ 400Hz	700 µH	General Purpose	Chassis Mount	CE cURus	Single Phase	Quick Connect	100 °C	-25 °C	Single Stage	20 A
Altran Magnetics, LLC AMI-21-16-1	250 V	DC ~ 400Hz	600 µH	General Purpose	Chassis Mount	CE cURus	Single Phase		100 °C	-25 °C	Single Stage	16 A
Altran Magnetics, LLC AMI-21-13-3	250 V	DC ~ 400Hz	700 µH	General Purpose	Chassis Mount	CE cURus	Single Phase		100 °C	-25 °C	Single Stage	13 A
Altran Magnetics, LLC AMI-21B-10-3	250 V	DC ~ 400Hz	800 µH	Medical	Chassis Mount	CE cURus	Single Phase	Quick Connect	100 °C	-25 °C	Single Stage	10 A
