NanoMQS Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
AUTOMOTIVE CONNECTORS 14POS,NANOMQS,REC HSG,COD A
| Part | Note | Row Spacing | Row Spacing | Pitch [x] | Pitch [x] | Fastening Type | Number of Rows [custom] | Contact Type | Color | Number of Positions | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insulation Material | Mounting Type | Features | Pitch | Pitch | Number of Rows | Style | Contact Shape | Shrouding | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] | Insulation Color | Number of Positions Loaded | Material Flammability Rating | Current Rating (Amps) | Contact Material | Contact Length - Mating | Contact Length - Mating | Voltage Rating | Termination | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | 0.059 in | 1.5 mm | 0.079 in | 2 mm | Latch Lock | 2 | Female Socket | Black | 4 | Crimp | 125 °C | -40 C | Receptacle | Polybutylene Terephthalate (PBT) Glass Filled | Free Hanging (In-Line) | Connector Position Assurance (CPA) | ||||||||||||||||||||||
 TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Push-Pull | Female Socket | Black | 8 | Crimp | 120 °C | -40 C | Receptacle | Free Hanging (In-Line) | Connector Position Assurance (CPA) | 1.8 mm | 0.071 in | 1 | ||||||||||||||||||||||||||

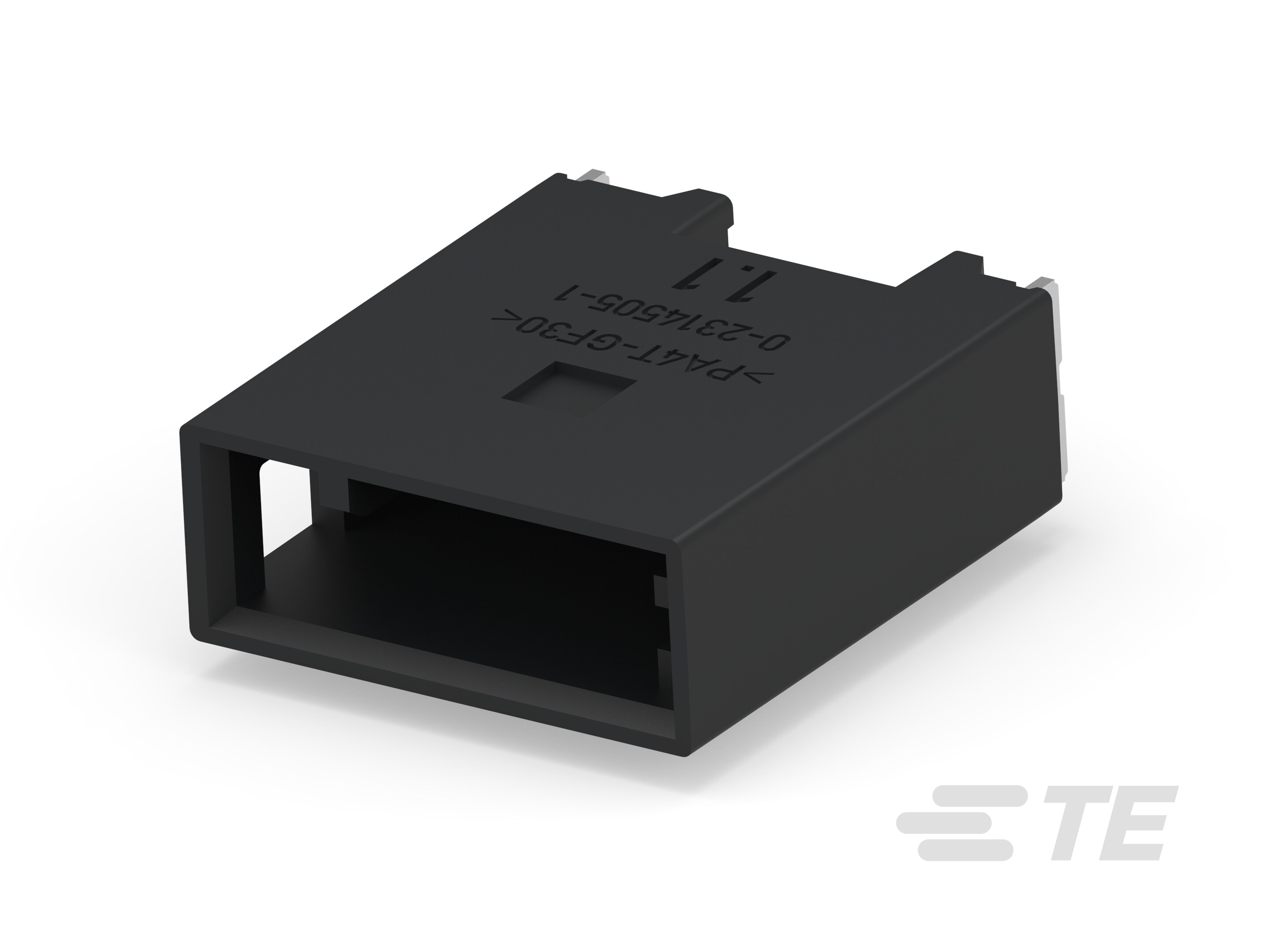

 TE Connectivity AMP Connectors | Push-Pull | Tab | 5 | 105 ░C | -40 C | Header | Nylon 4T Polyamide (PA4T) | Surface Mount | 1 | Board to Cable/Wire | Square | Shrouded - 4 Wall | Tin | 118.1 µin | 3 µm | 0.238 " | 6.05 mm | Black | All | UL94 HB | 3 A | Copper Alloy | 0.256 in | 6.5 mm | 12 VDC 24 VDC | Solder | 1.8 mm | 0.071 in | |||||||||||
 TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | Push-Pull | Female Socket | Black | 8 | Crimp | 120 °C | -40 C | Receptacle | Free Hanging (In-Line) | Connector Position Assurance (CPA) | 1.8 mm | 0.071 in | 1 | ||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Detent Lock | Male Pin | 4 | Header | Glass Filled Nylon 4T Polyamide (PA4T) | Surface Mount | Solder Retention | 1 | Board to Board Cable | Square | Shrouded - 4 Wall | Tin | 3 µin | 0.076 µm | 0.701 in | 17.8 mm | Black | All | Copper Alloy | 0.256 in | 6.5 mm | Solder | 1.8 mm | 0.071 in |
