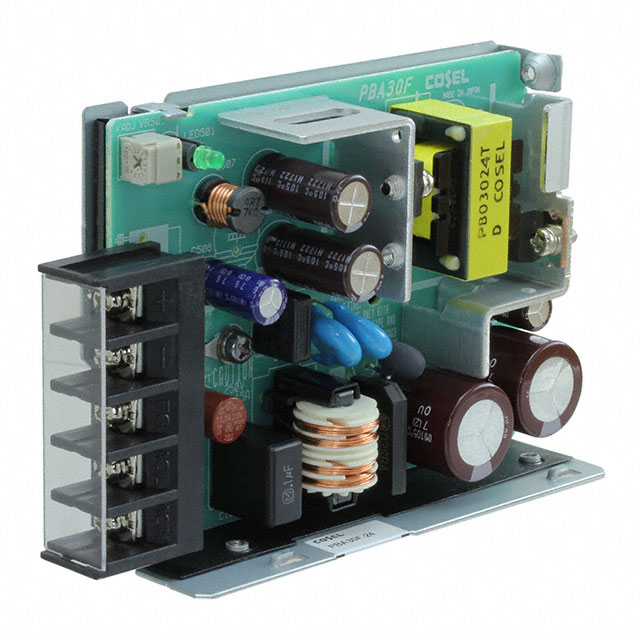

PBA30 Series

Switching Power Supplies

Manufacturer: Cosel USA, Inc.

Catalog

Switching Power Supplies

Catalog

Switching Power Supplies

...

Part	Minimum Load Required	Voltage - Isolation	Efficiency	Applications	Number of Outputs	Current - Output 1	Approval Agency	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Power (Watts)

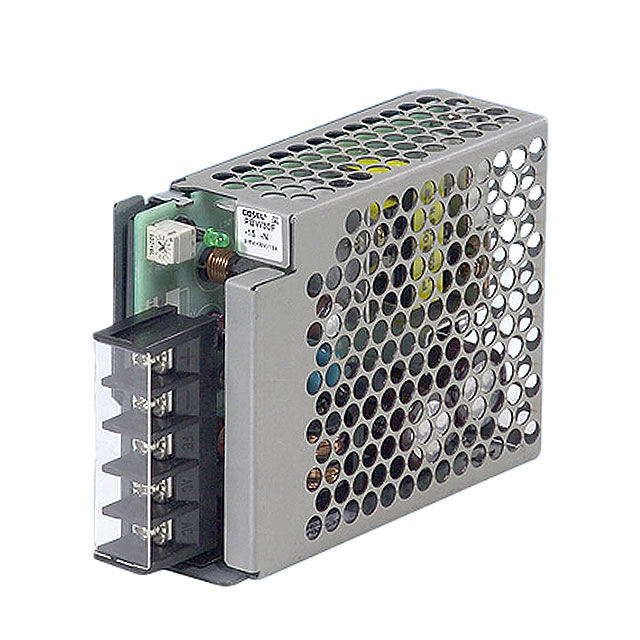

Cosel USA, Inc. PBA30F-24-GN		3000 V	81 %	ITE (Commercial)	1	1.3 A	CE cURus TUV	Enclosed	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	24 V	71 °C	-10 °C	Chassis Mount
Cosel USA, Inc. PBA30F-24-EN		3000 V	81 %	ITE (Commercial)	1	1.3 A	CE cURus TUV	Enclosed	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	24 V	71 °C	-10 °C	Chassis Mount

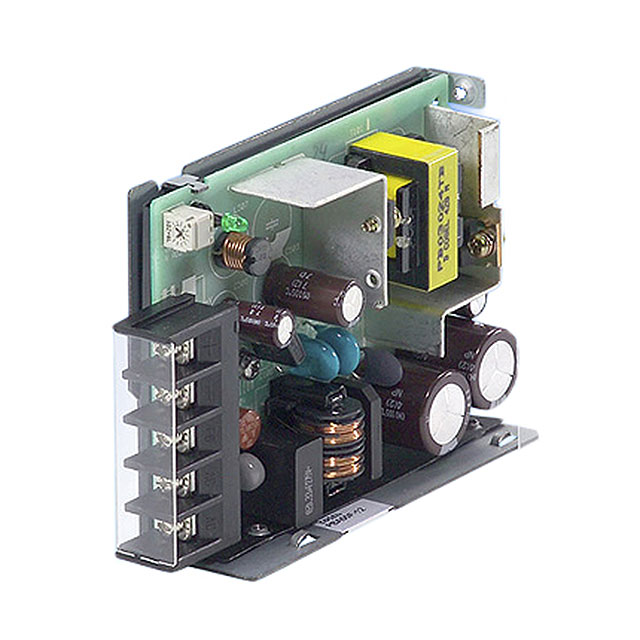

Cosel USA, Inc. PBA30F-24-V		3000 V	81 %	ITE (Commercial)	1	1.3 A	CE cURus TUV	Open Frame	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	24 V	71 °C	-10 °C	Chassis Mount
Cosel USA, Inc. PBA30F-12-CN		3000 V	78 %	ITE (Commercial)	1	2.5 A	CE cURus TUV	Enclosed	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	12 V	71 °C	-10 °C	Chassis Mount
Cosel USA, Inc. PBA30F-5-CJN		3000 V	77 %	ITE (Commercial)	1	6 A	CE cURus TUV	Enclosed	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	5 V	71 °C	-10 °C	Chassis Mount
Cosel USA, Inc. PBA30F-3R3-GN		3000 V	69 %	ITE (Commercial)	1	6 A	CE cURus TUV	Enclosed	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	3.3 V	71 °C	-10 °C	Chassis Mount
Cosel USA, Inc. PBA30F-24-G		3000 V	81 %	ITE (Commercial)	1	1.3 A	CE cURus TUV	Open Frame	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	24 V	71 °C	-10 °C	Chassis Mount
Cosel USA, Inc. PBA30F-48-CN		3000 V	81 %	ITE (Commercial)	1	650 mA	CE cURus TUV	Enclosed	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	48 V	71 °C	-10 °C	Chassis Mount
Cosel USA, Inc. PBA30F-12-N1		3000 V	78 %	ITE (Commercial)	1	2.5 A	CE cURus TUV	Enclosed	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	12 V	71 °C	-10 °C	Chassis Mount
Cosel USA, Inc. PBA30F-12			78 %	ITE (Commercial)	1	2.5 A	CE cURus TUV	Open Frame							12 V			Chassis Mount	DC Input Capable Universal Input	30 Watts
