TS2P2M Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CIRCULAR CONNECTOR, DURA-TWIST TS2 SERIES, PANEL MOUNT RECEPTACLE, 2 CONTACTS, CRIMP / SOLDER PIN
| Part | Insert Material | Connector Type | Number of Positions | Orientation | Mounting Type | Shell Finish | Contact Material | Color | Primary Material | Contact Finish - Mating | Fastening Type | Ingress Protection | Shielding | Termination | Shell Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

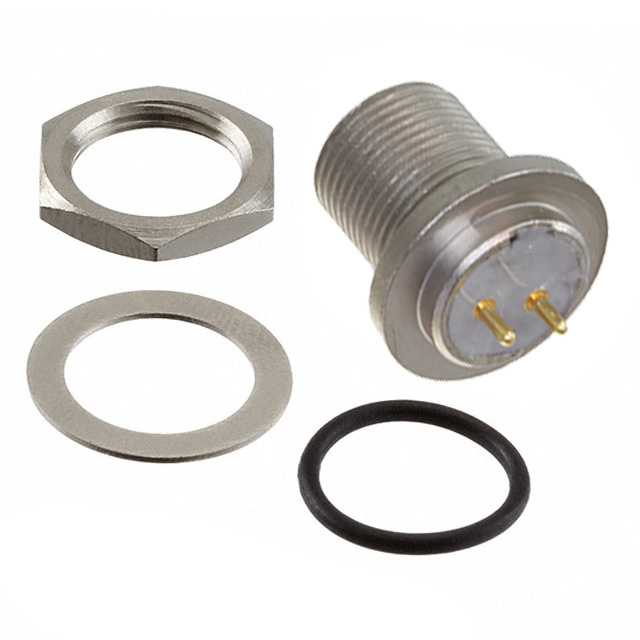

 SWITCHCRAFT/CONXALL | Liquid Crystal Polymer (LCP) | Receptacle Male Pins | 2 | Keyed | Panel Mount Through Hole | Electroless Nickel | Copper Alloy | Silver | Metal | Gold | Threaded | IP66 IP67 IP68 | Shielded | Solder | Copper Alloy | 125 VAC | -40 C | 135 °C | Agriculture Audio General Medical Testing Equipment & Measurement | Bulkhead - Front Side Nut |

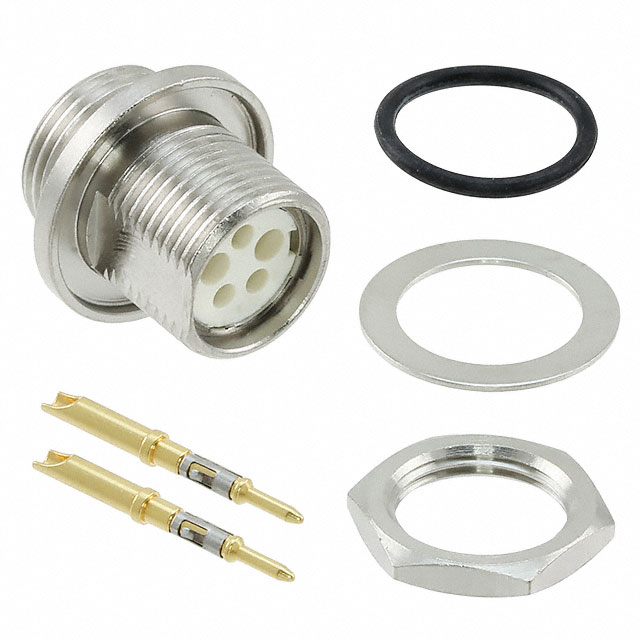

 SWITCHCRAFT/CONXALL | Liquid Crystal Polymer (LCP) | Receptacle Male Pins | 2 | Keyed | Panel Mount | Electroless Nickel | Copper Alloy | Silver | Metal | Gold | Threaded | IP66 IP67 IP68 | Shielded | Crimp Solder Cup | Copper Alloy | 125 VAC | -40 C | 135 °C | Agriculture Audio General Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut |
 SWITCHCRAFT/CONXALL | Liquid Crystal Polymer (LCP) | Receptacle Male Pins | 2 | Keyed | Panel Mount Through Hole | Electroless Nickel | Copper Alloy | Silver | Metal | Gold | Threaded | IP66 IP67 IP68 | Shielded | Solder | Copper Alloy | 125 VAC | -40 C | 135 °C | Agriculture Audio General Medical Testing Equipment & Measurement | Bulkhead - Front Side Nut |
